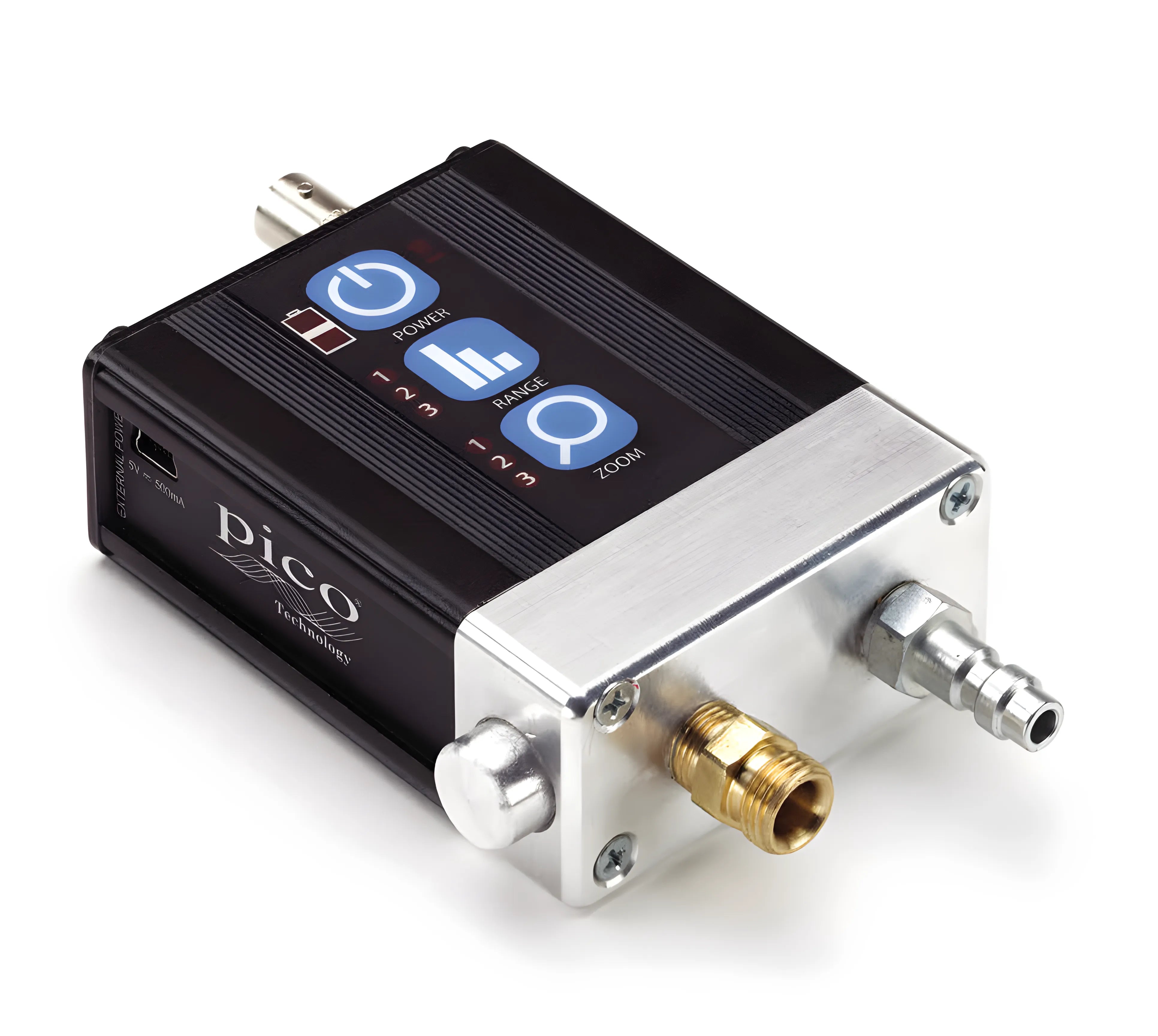

WPS500X Pressure Transducer
Designed to offer uncompromising resolution and accuracy, the Pico automotive diagnostic pressure transducer allows quick and accurate pressure analysis of many automotive systems, with:
* three pressure ranges

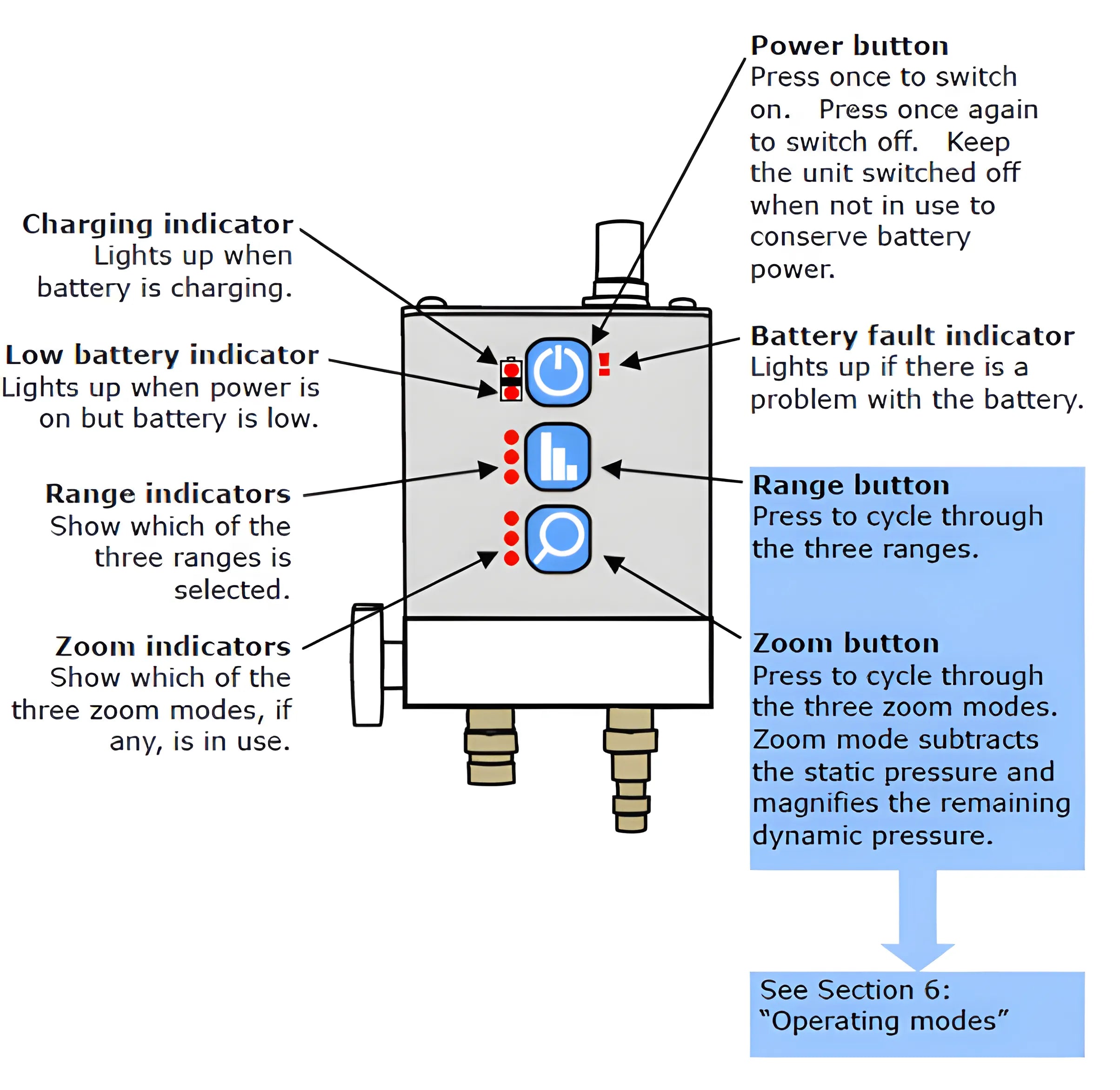

* a zoom tool
* integrated bleed-off / pressure relief valve
Accurately measure pressure to 500psi
Ultra fast 100μS response time
Zoom feature for enhanced analysis capabilities
Rechargeable Li-PO battery
Rechargeable Li-PO battery

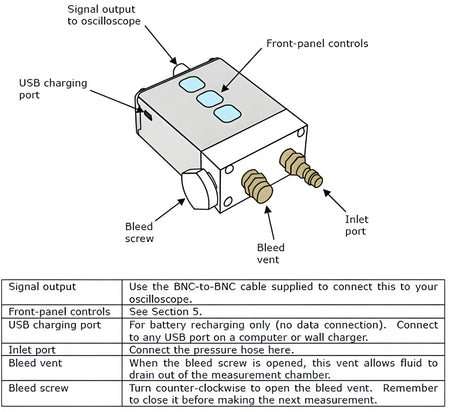

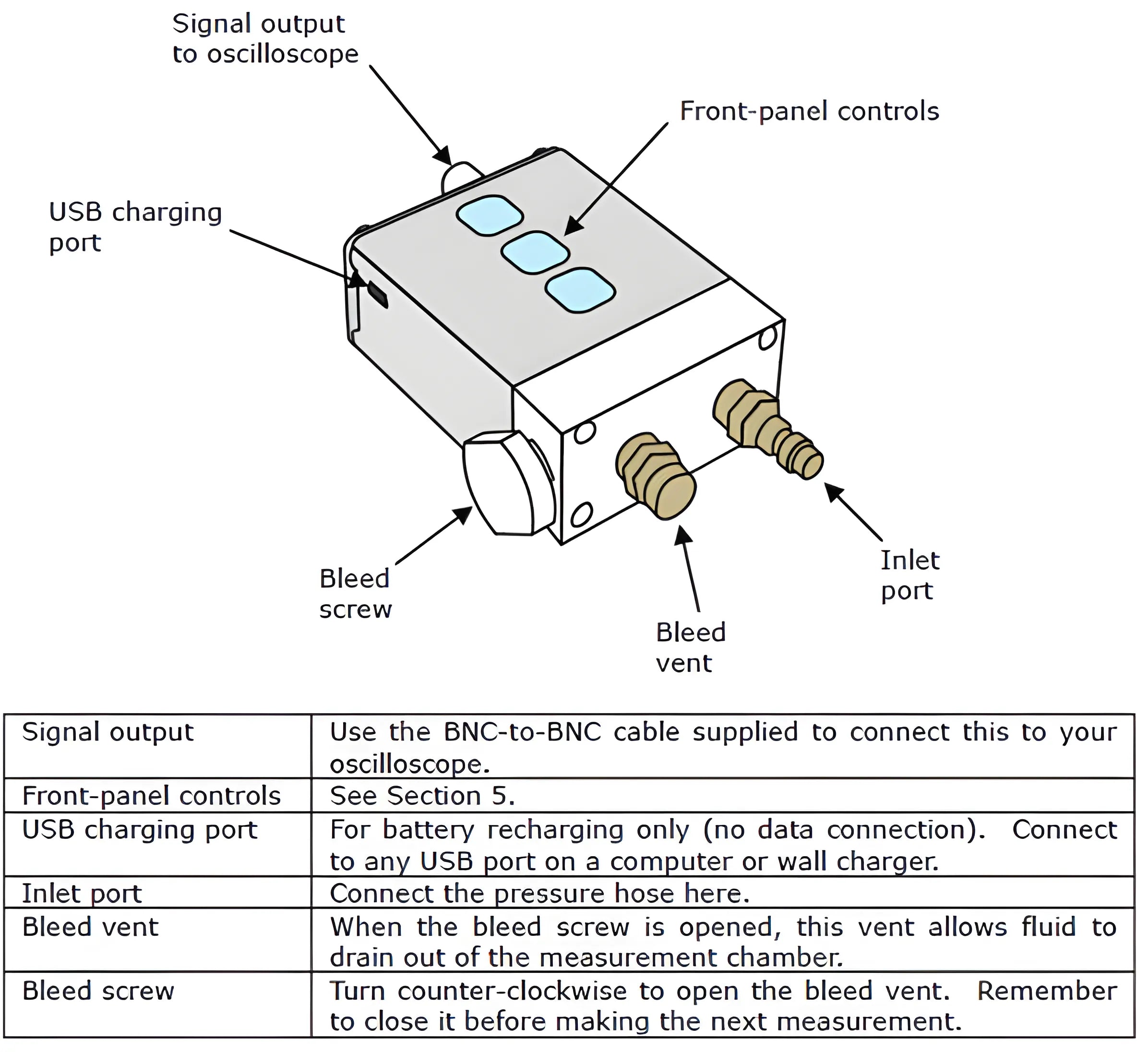

Integrated pressure relief / bleed-off valve
Auto Zeroing
High noise immunity
Temperature compensated
This unit is an auto zeroing pressure transducer designed to offer form and flexibility to automotive diagnostics.
What Lab Scopes does the WPS500X Transducer work with?
The Pico WPS500X Transducer works with all modern automotive and industrial lab scopes, including, but not limited to: PicoScope, Snap-on Verus, Snap-on MODIS, Snap-on VantagePro, Fluke ScopeMeters, Bosch, Interro, UEI, OTC, etc... However, lab scopes with banana inputs require a banana to BNC Male adapter.

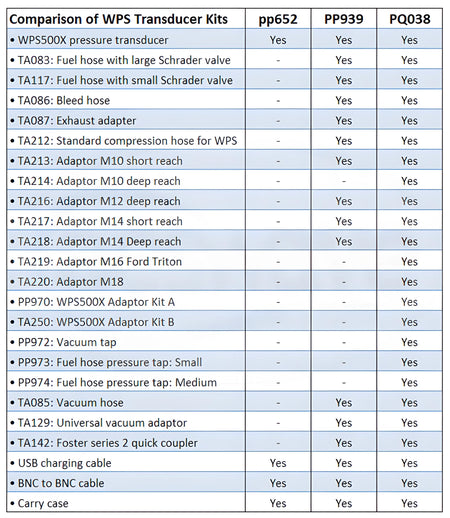

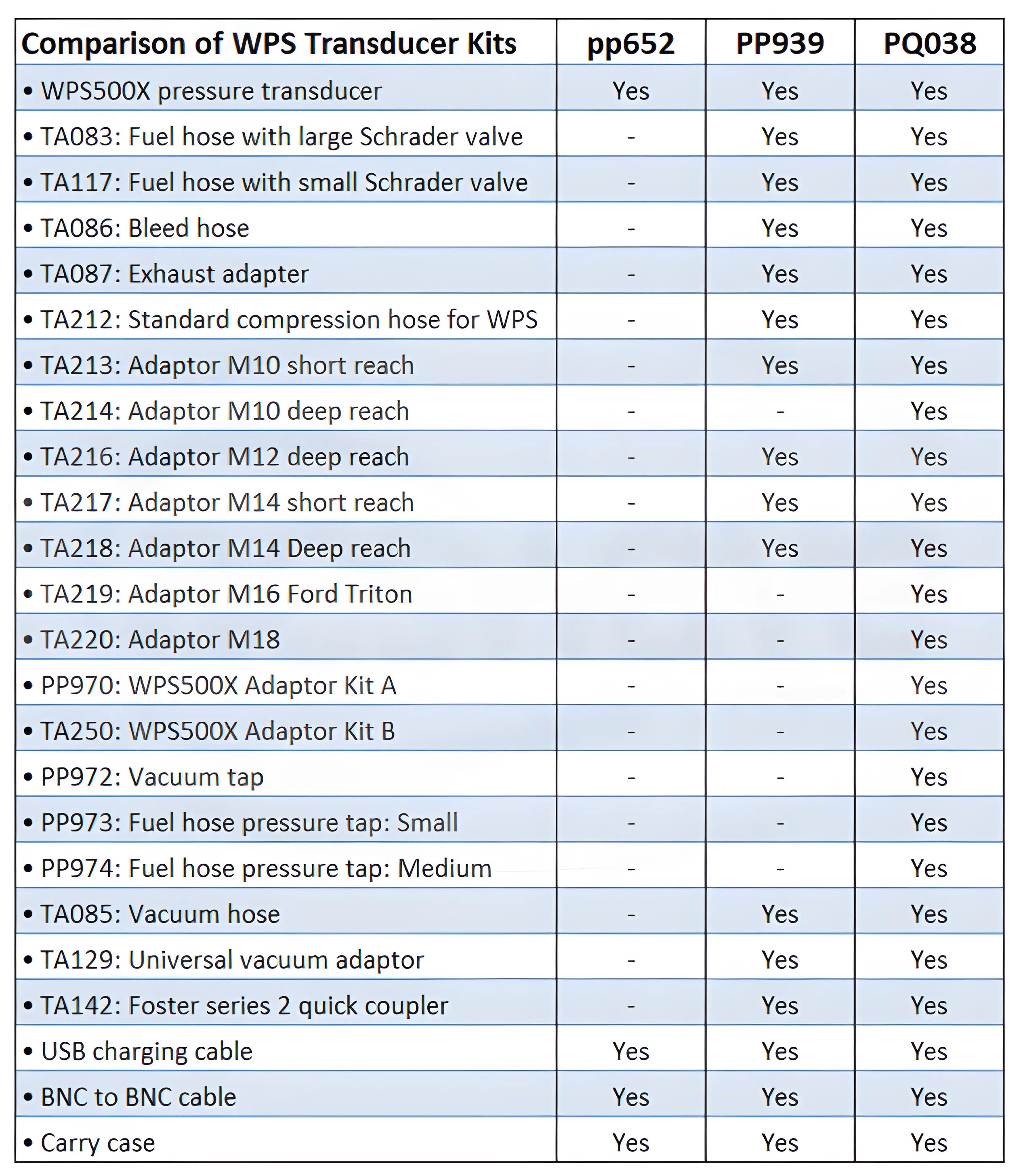

PP652 Kit Contents
• TA071 WPS500X pressure transducer
• TA081 Cable: USB to mini USB Cable 2 meters
• TA098 Cable: insulated BNC to insulated BNC cable 5 meters
• PA094 Hard Plastic Carry case
• DO157 User Manual
