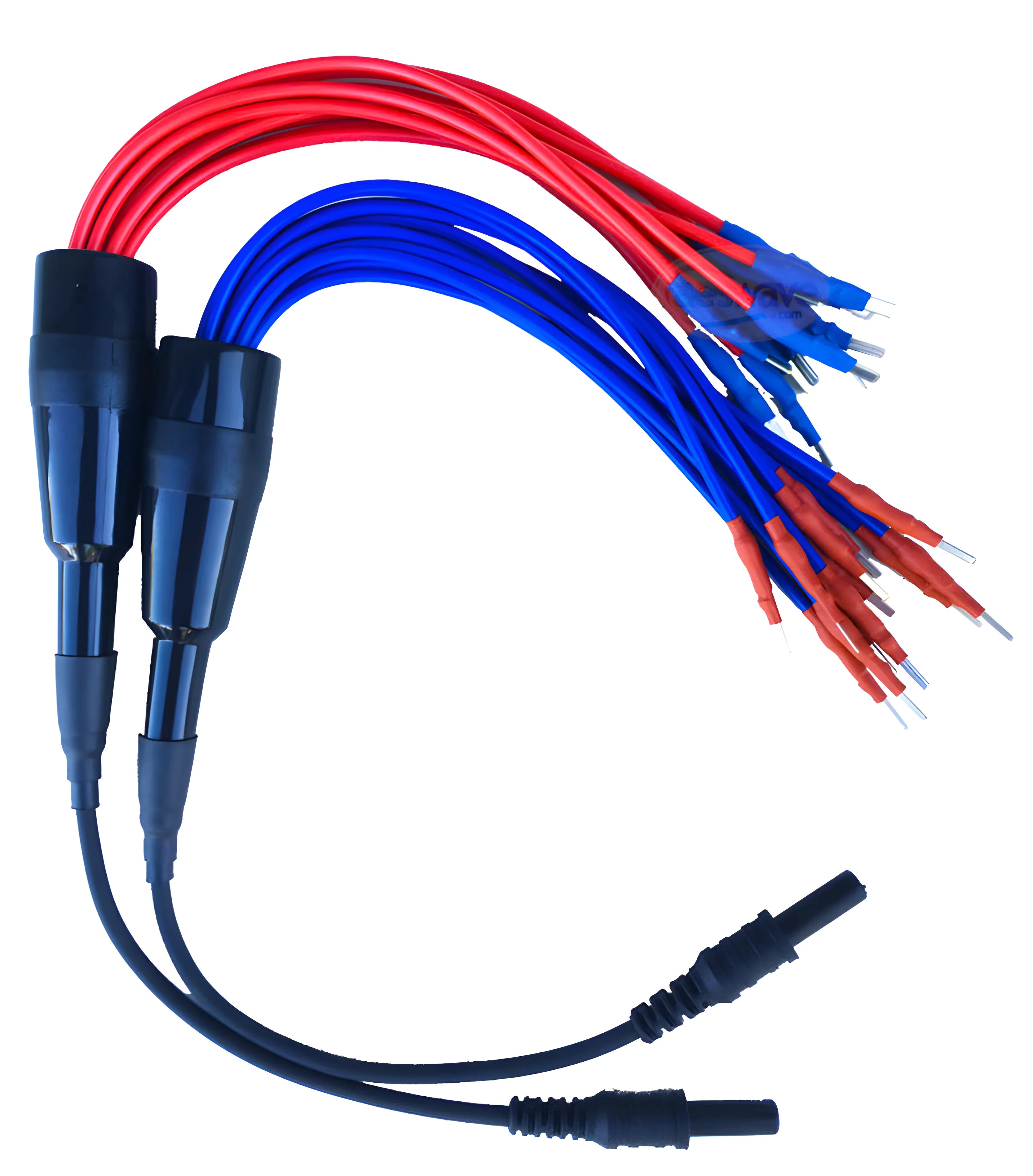

uIsolate Network Isolator

Using the AES uIsolate Network Isolator to find faulty modules in vehicle communication networks such as GM Class 2, CAN BUS, and other 1-wire and 2-wire networks.

With the uIsolate Network Isolator, isolate CAN modules and add them back into the network one-by-one to determine malfunctioning components. Saves time in diagnosis.

Contents
(1) 12-way Splice Pack with Large terminals (2.80mm x 0.80mm)
(1) 12-way Splice Pack with Small terminals (1.80mm x 0.64mm)

Each 12-way Splice Pack connects to all common diagnostic equipment including DSO's and DMM with a 4mm banana plug probe.

Keith Perkins with Trained by Techs uses the uIsolate on a 2003 Chevy Trailblazer, video will start at 3:08 as he preps the connector...

Trained by Techs: Keith Perkins demonstrates how to identify which module has caused complete network failure on a 2003 Chevrolet Trailblazer.
