uActivate® Master Kit

Now includes upgraded case: larger, sturdier, and built with custom cutouts.

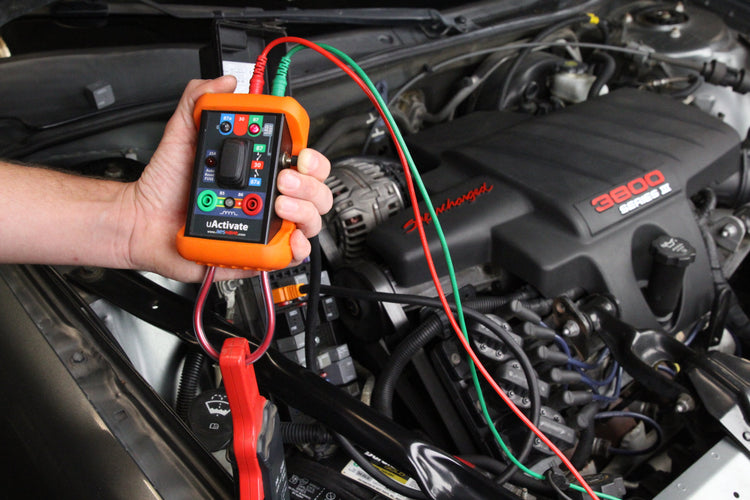

What is the uActivate®?

The uActivate is a time-saving convenience tool designed to simplify relay circuit performance testing through the relay socket. It can also be used for other circuit testing situations!

The uActivate® works in place of the relay, acting as a test breakout box allowing the user to activate the circuit at will. Works with standard 4 and 5 terminal relay circuits.

• Can also be used in series with most other circuits rated for 25A or less (using the Universal Cable).
• Test points via 4mm safety banana socket for 85, 86, 87, 87a, and 30.
• Provides amperage loop for quick connection of inductive amp clamps.
• A quick test using LEDs to indicate the presence of voltage, polarity, and continuity throughout the circuit.

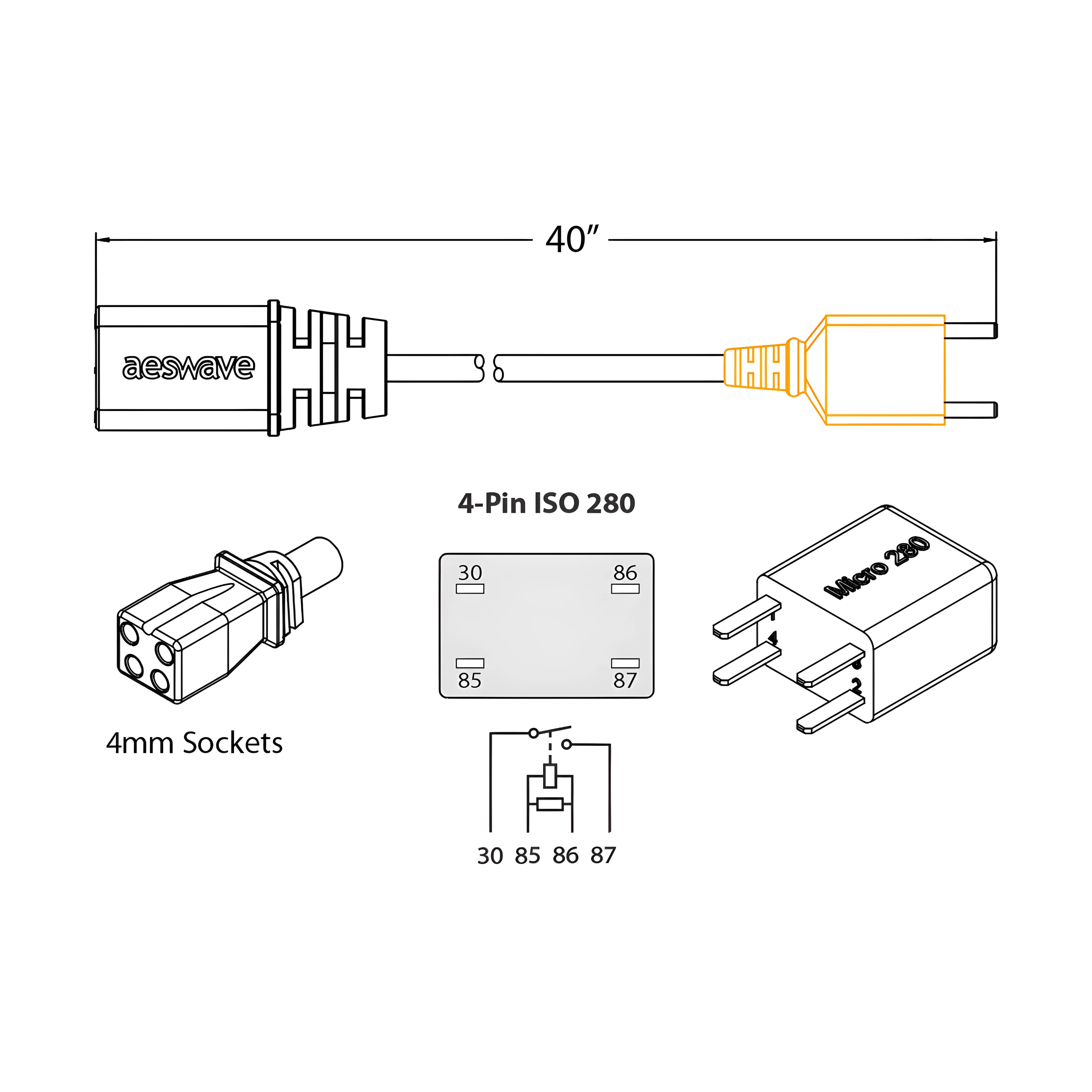

• Direct install cables that fit into relay socket including 4 and 5 terminal ISO 280, Micro ISO, and Mini ISO.
• Custom direct fit cables available – for example, custom BMW configurations.
• Universal cable that allows for custom terminal blade combinations and pin arrangements.
• Built in auto resetting fuse to protect the uActivate and relay circuit.

The uActivate® Master kit includes both the 4- and 5-pin cable sets, and the Universal Cable.

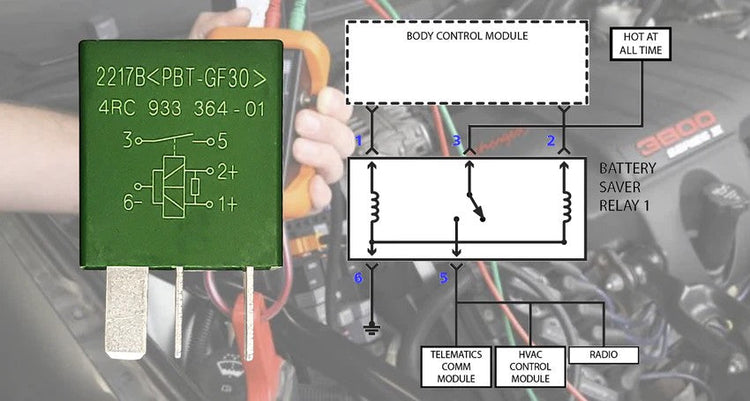

The 4- and 5- pin cables connect to the most commonly used relays including ISO Mini, ISO MICRO and ISO MICRO 280. To top it off, the 5-pin universal cable offers maximum connection versatility when dealing with solid-state, latching and odd relays/circuits that have unique pin assignments.

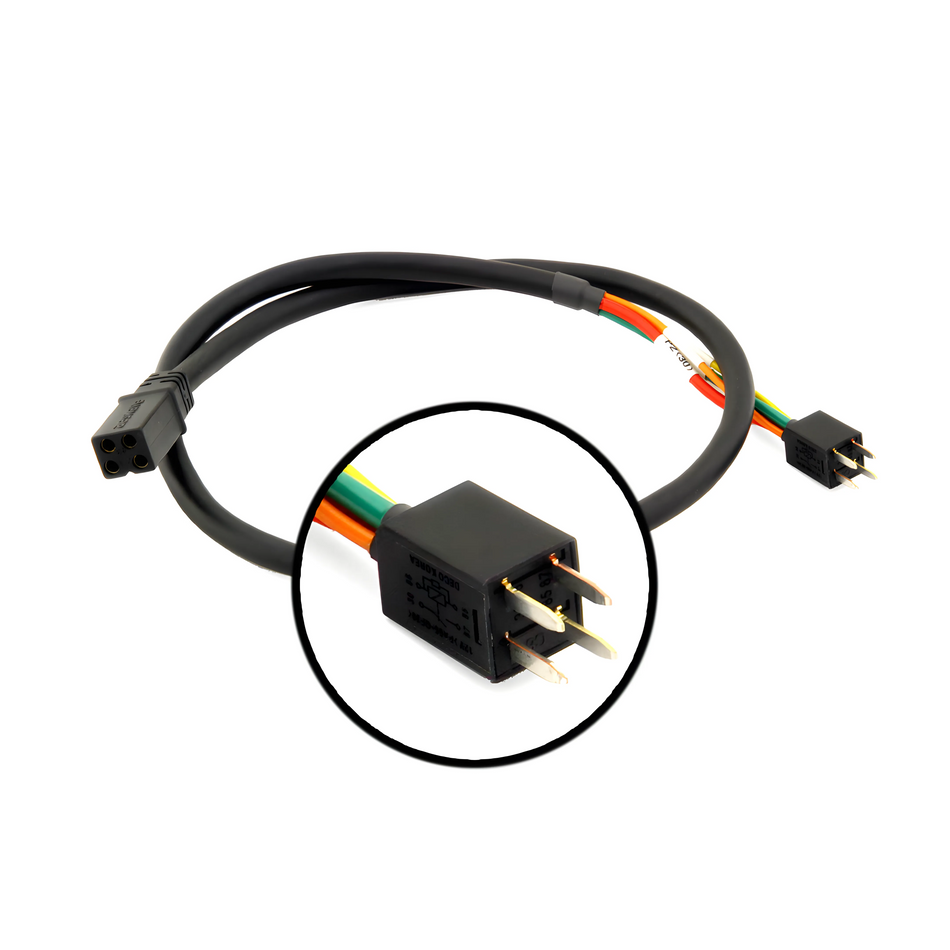

Custom cables are also available to meet your exact relay circuit testing needs. See the cables we already make here: https://uactivate.aeswave.com/collections/custom-cables or email us at support@aeswave.com to talk about making one for your application.

The uActivate® Master kit includes both the 4- and 5-pin cable sets, and the Universal Cable.

The 4- and 5- pin cables get you though most standard relay situation including ISO Mini, MICRO and ISO 280. To top it off, the 5-pin universal cable offers maximum connection versatility when dealing with solid-state, latching and odd relays/circuits that have unique pin assignments.

The next step up to this kit is ordering custom cables to meet your exact relay circuit testing needs.

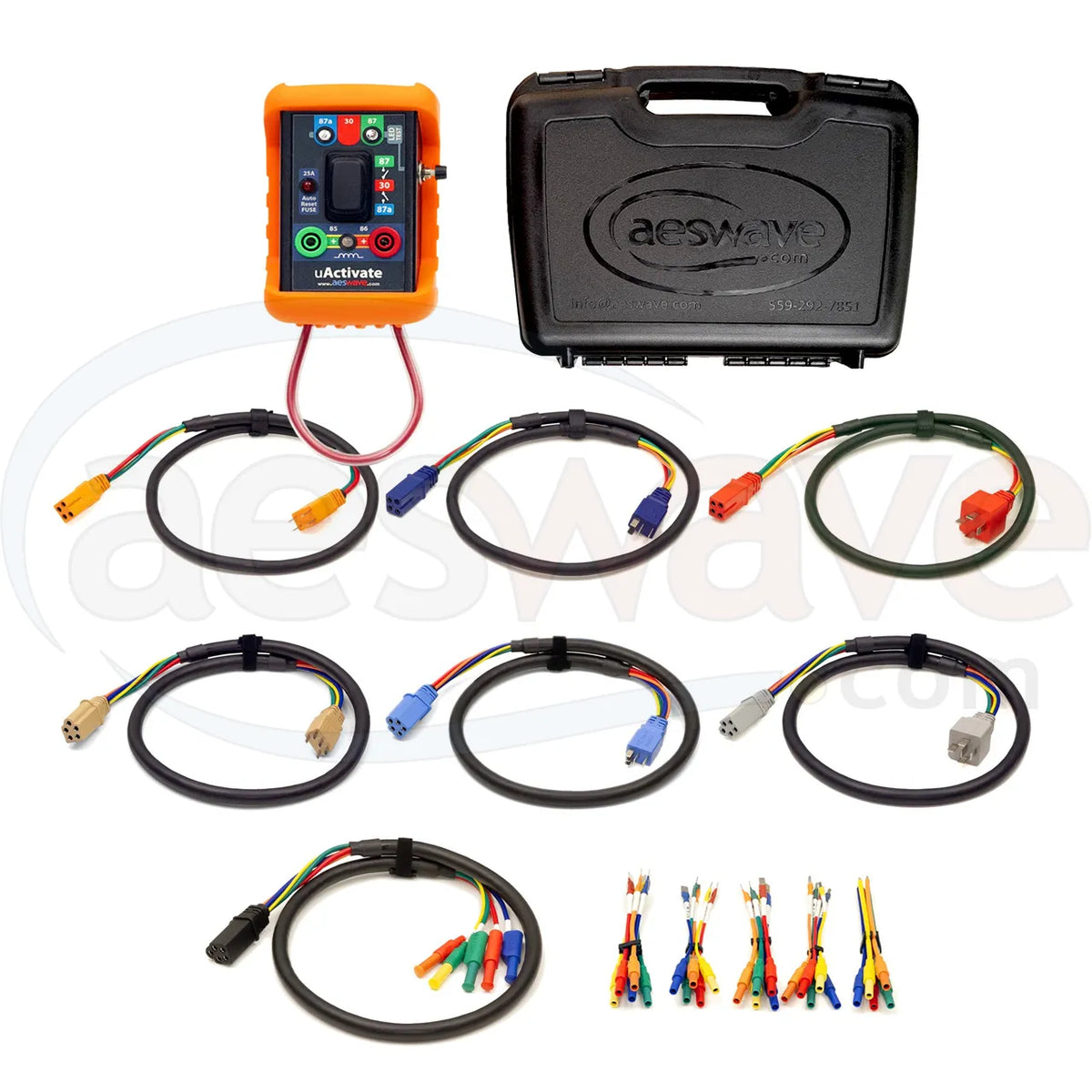

Contents

• uActivate® unit

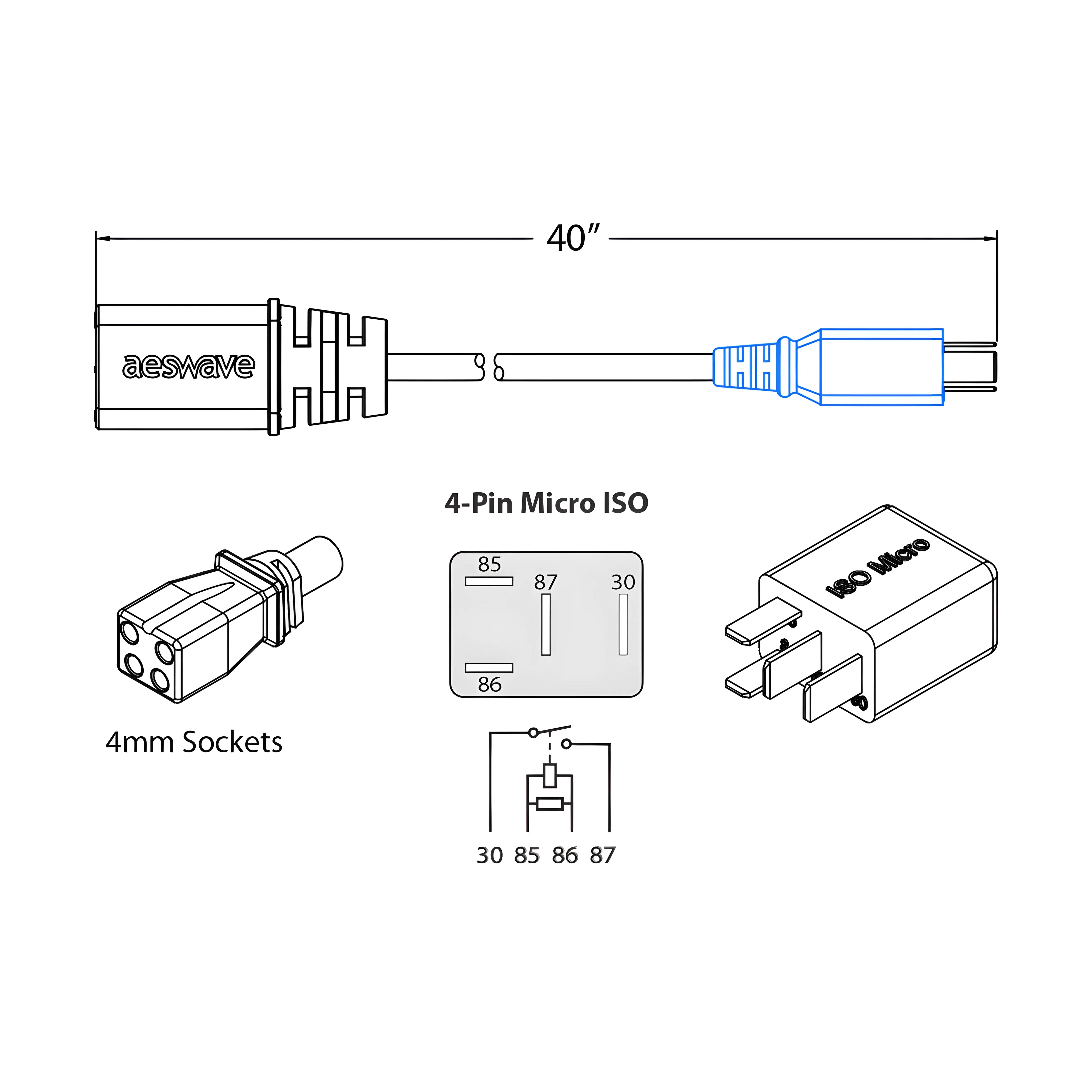

• 4-pin cable ISO Micro

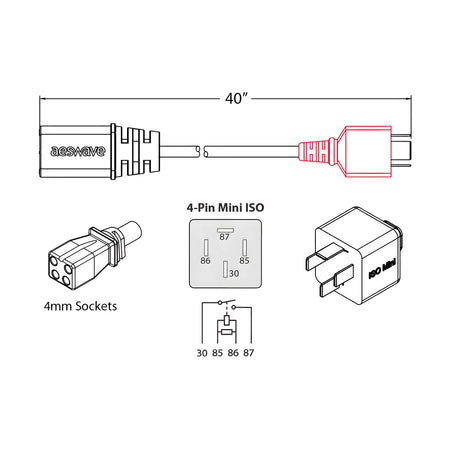

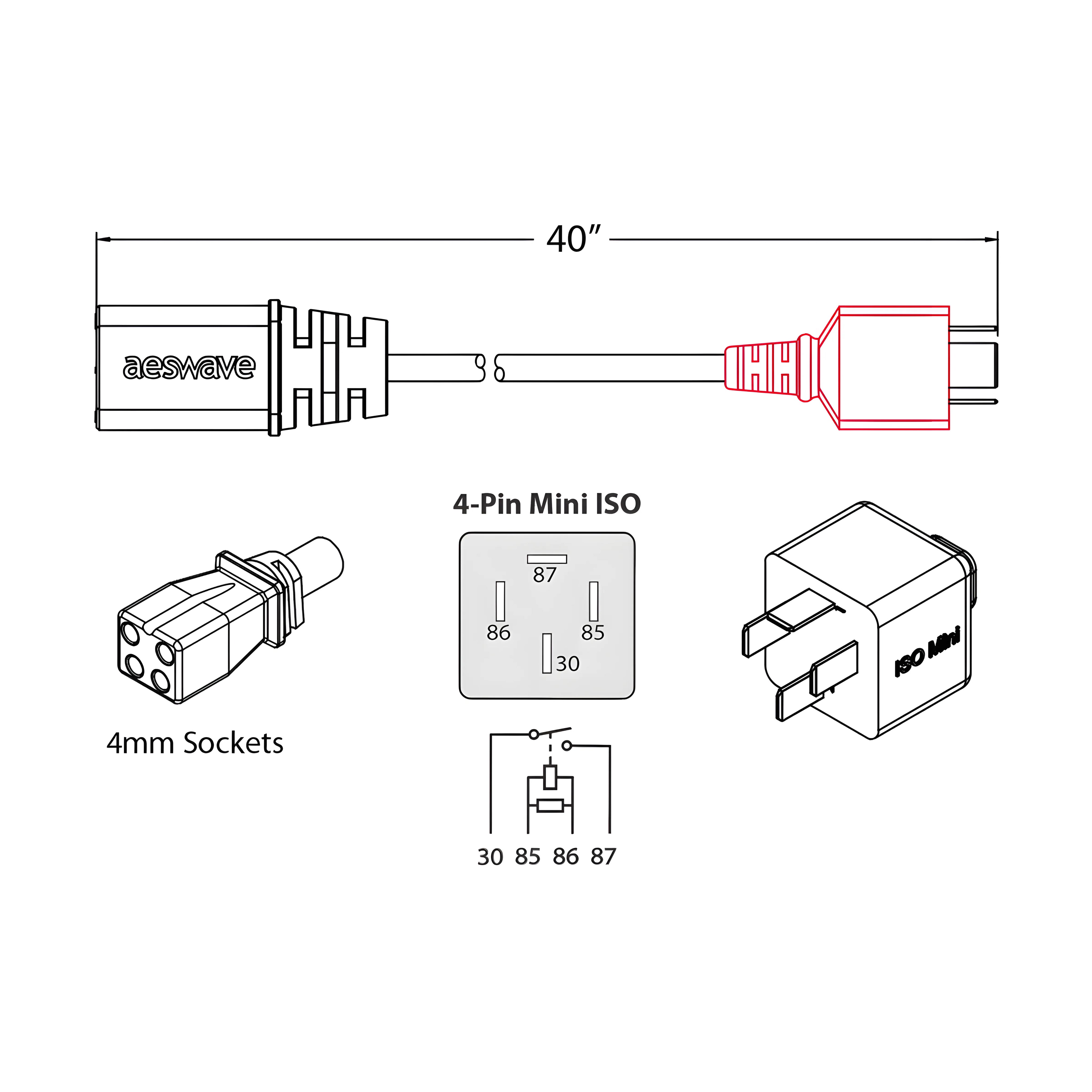

• 4-pin cable ISO Mini
• 4-pin cable Micro

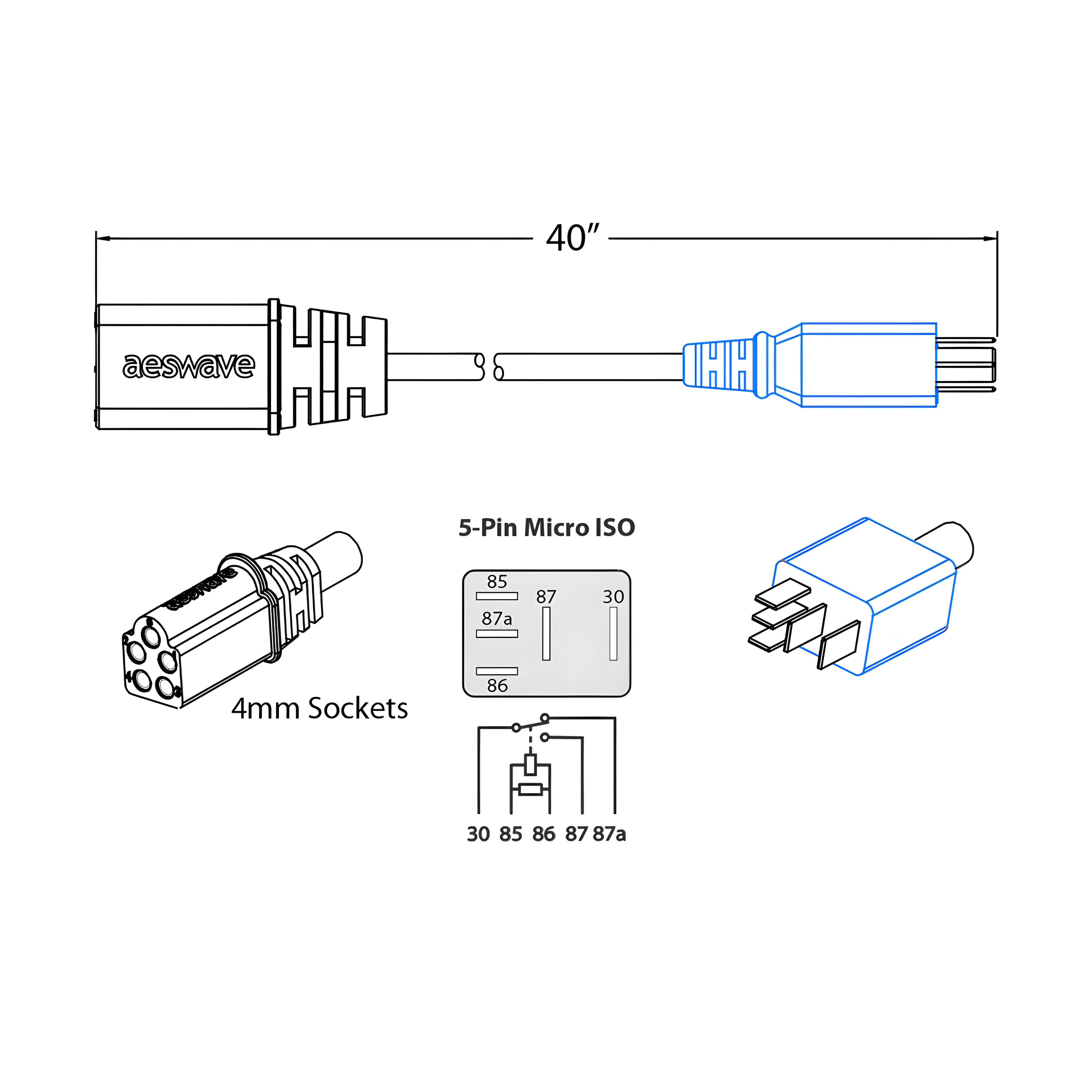

• 5-pin cable ISO Micro

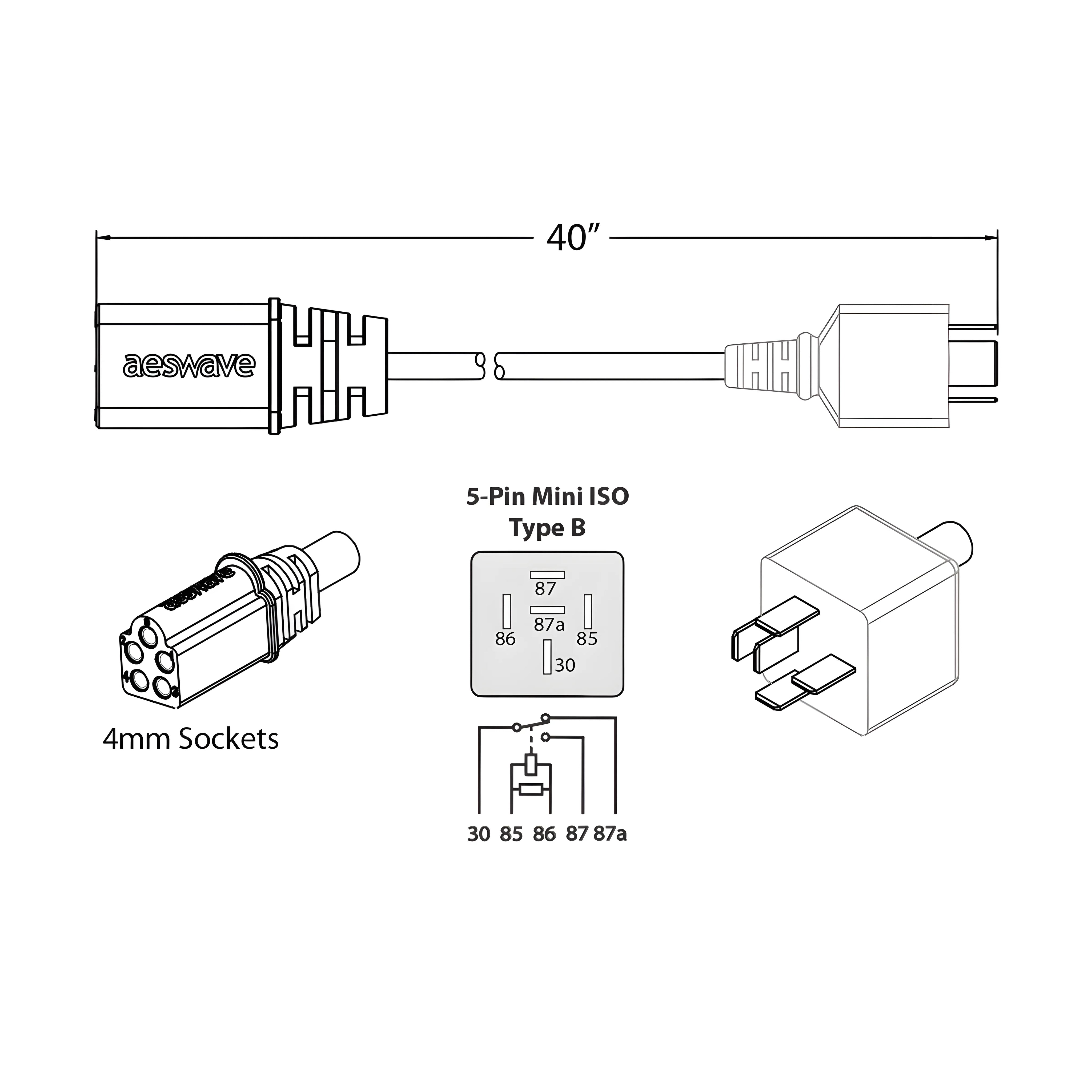

• 5-pin cable ISO Mini

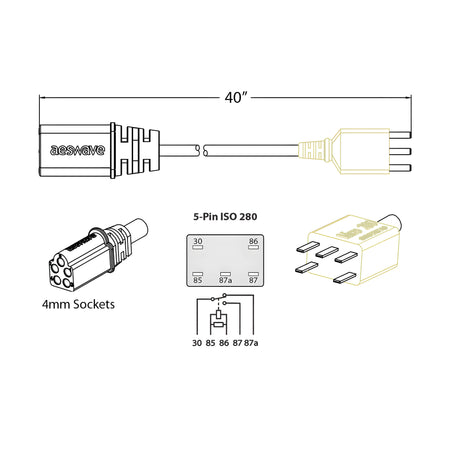

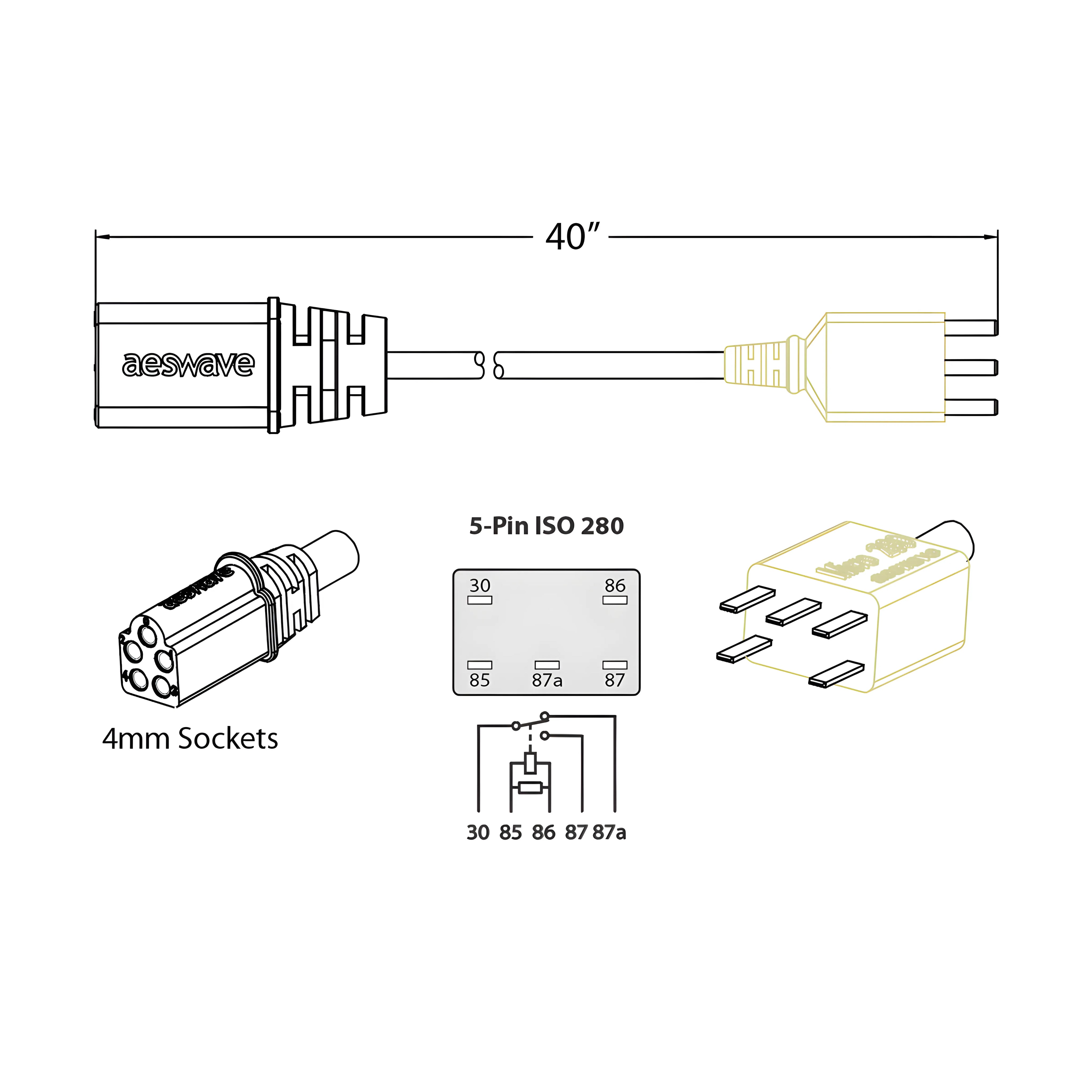

• 5-pin cable Micro 280
• 5-pin cable Universal

• Hard Plastic Case
• 1-year Warranty
