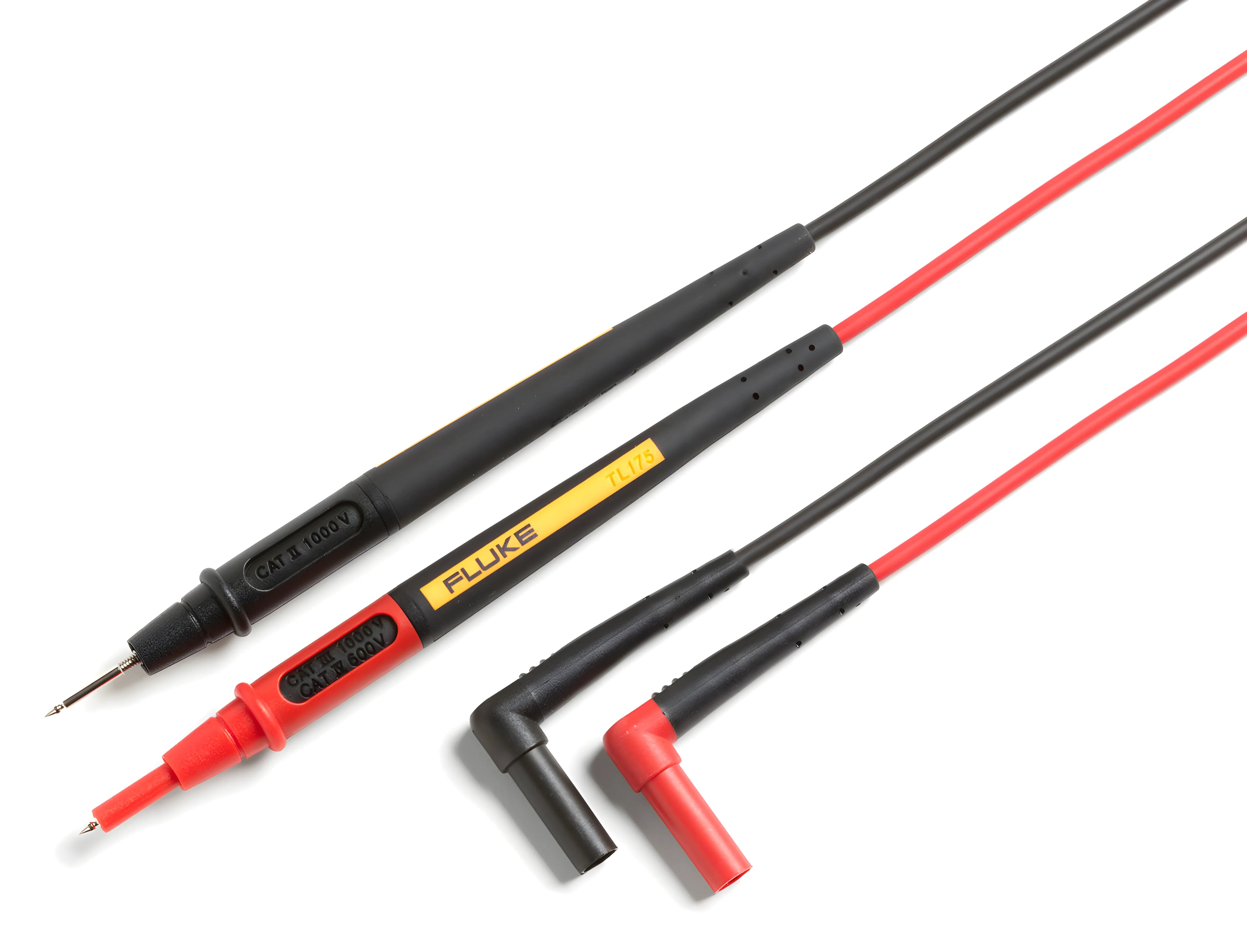

Fluke TL175 TwistGuard Test Leads
Fluke TL175 TwistGuard* Test Leads, the only test leads in the world with adjustable length test tips.
- TwistGuard* adjustable tips enhance safety and versatility length
- WearGuard* indicator shows damage to leads
- Heavy duty strain relief withstands over 30,000 bends
- Fully compliant to the new regulation (IEC) 61010-031, issue A1:2008
Specifications
Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
Exposed probe tip length: 19 mm to 4 mm (0.75 inch to 0.16 inch)
Environmental ratings: -20C to 55C (-4F to 131F), altitude: 2000m (6,566ft)

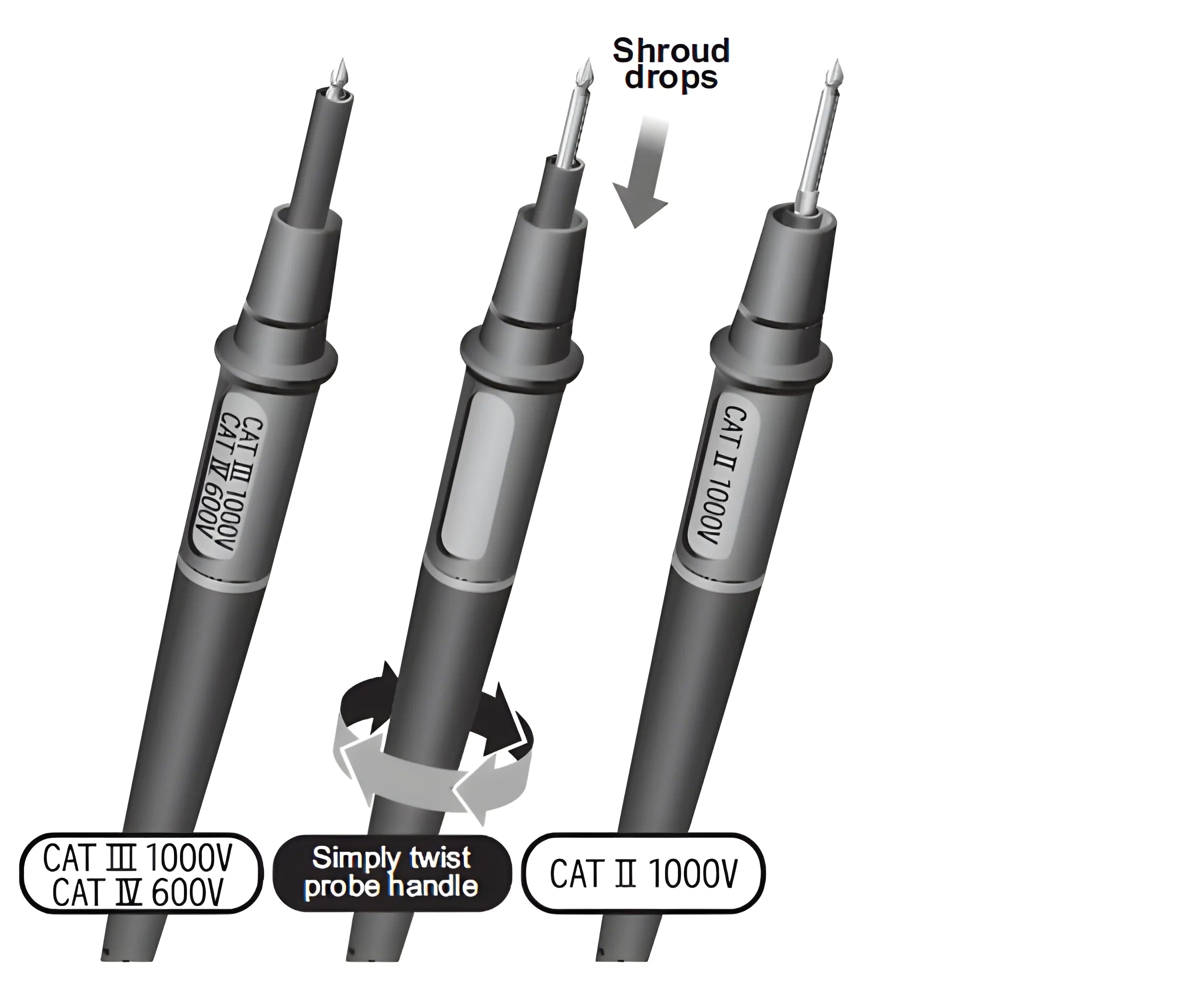

Patented TwistGuard* extendable tip shroud meets the highest electrical safety requirements to reduce tip exposure while providing the versatility needed for most measurements.
* New WearGuard* lead wire wear indication. Each test lead is covered by two layers of silicone insulation; inner contrasting color is exposed when the leads are nicked, scuffed, or otherwise damaged and in need of replacement
* Double insulated silicone leads. TL175 test leads withstand high temperatures and remain flexible in cold temperatures.
* Extra-heavy duty strain relief on both probe-end and plug-end, tested beyond 30,000 bends without failure.
* Universal input plugs are compatible with all instruments that accept standard 4 mm shrouded banana plugs
* Probes always show correct category rating for tip being used
* Environmental ratings: -20 ?C to 55 ?C (-4 ?F to 131 ?F), altitude: 2000 m (6,562 ft)
* Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
* Conforms to EN61010-031
* One-year warranty
