True RMS Low Curr.Clamp
Looking at a clamp for testing parasitic drains? Check out the ESI-683
This clamp meter has significant improvements over the model 687, and offers:
1) Larger clamp
2) Better Zero Stability.
This new clamp meter offers both!
The clamp opening is 19mm (roughly .75 inch, a 50% increase vs. model 687) clamps over many multi-cable battery grounds and also many of the larger truck ground cables. This is the largest clamp opening we could have, while still holding the capability to measure down to 1mA....key for measuring parasitic battery drains!
- Large 19 mm (.75”) clamp size - can clamp over larger ground cables and some multi ground cable systems
- TRUE RMS accuracy
- Greatly improved ZERO function
- Accurate measurements down to 1 mA (.001A)
- 5,000 count backlit LCD Display w/analog bargraph
- Peak MIN/MAX function
- Standard MIN/MAX function
- CATIII 600 Volts safety rating
- Built-in TEMPERATURE - F&C (probe included)
- Full digital multimeter built-in
- White LED backlighting
This is a standalone clampmeter, it does not connect to a lab scope or meter.

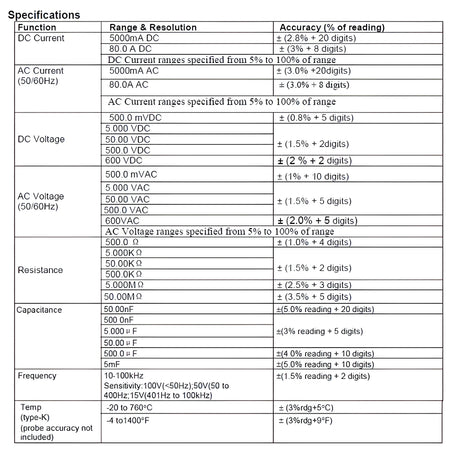

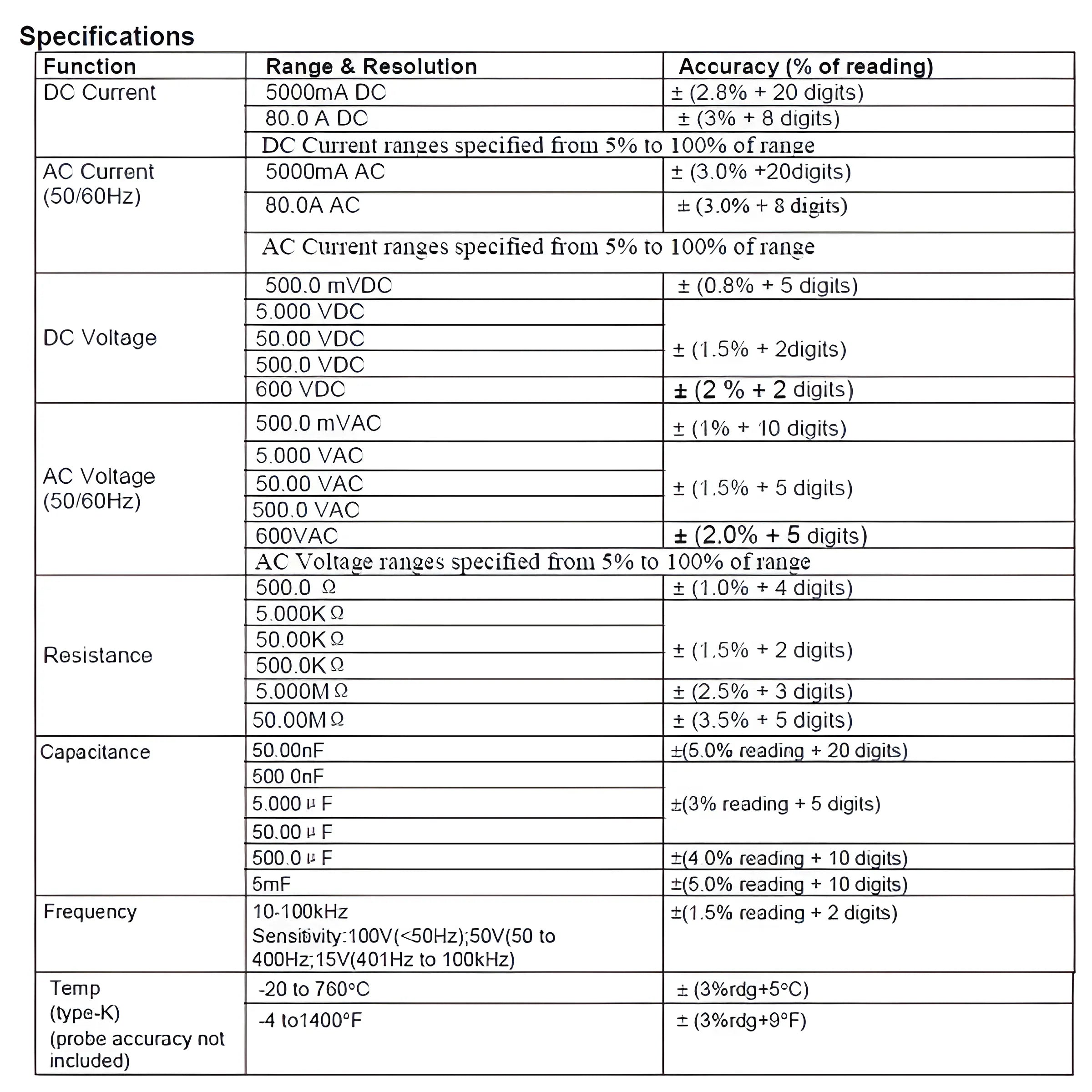

Test Ranges
- DC mA: 5000mA
- DC Amps: 80A
- AC mA: 5000mA
- AC Amps: 80A
- Temperature: 1400 degrees Fahrenheit
- Capacitance: 5mF
- Resistance: 50 Mega Ohms
- Diode: Diode Test
- Continuity: Audible Beep
- Frequency: 10Hz - 100kHz
- DC Volts: 600VDC
- AC Volts: 600VAC
Contents
- 688 model
- test leads
- temp probe
- zippered carrying case
