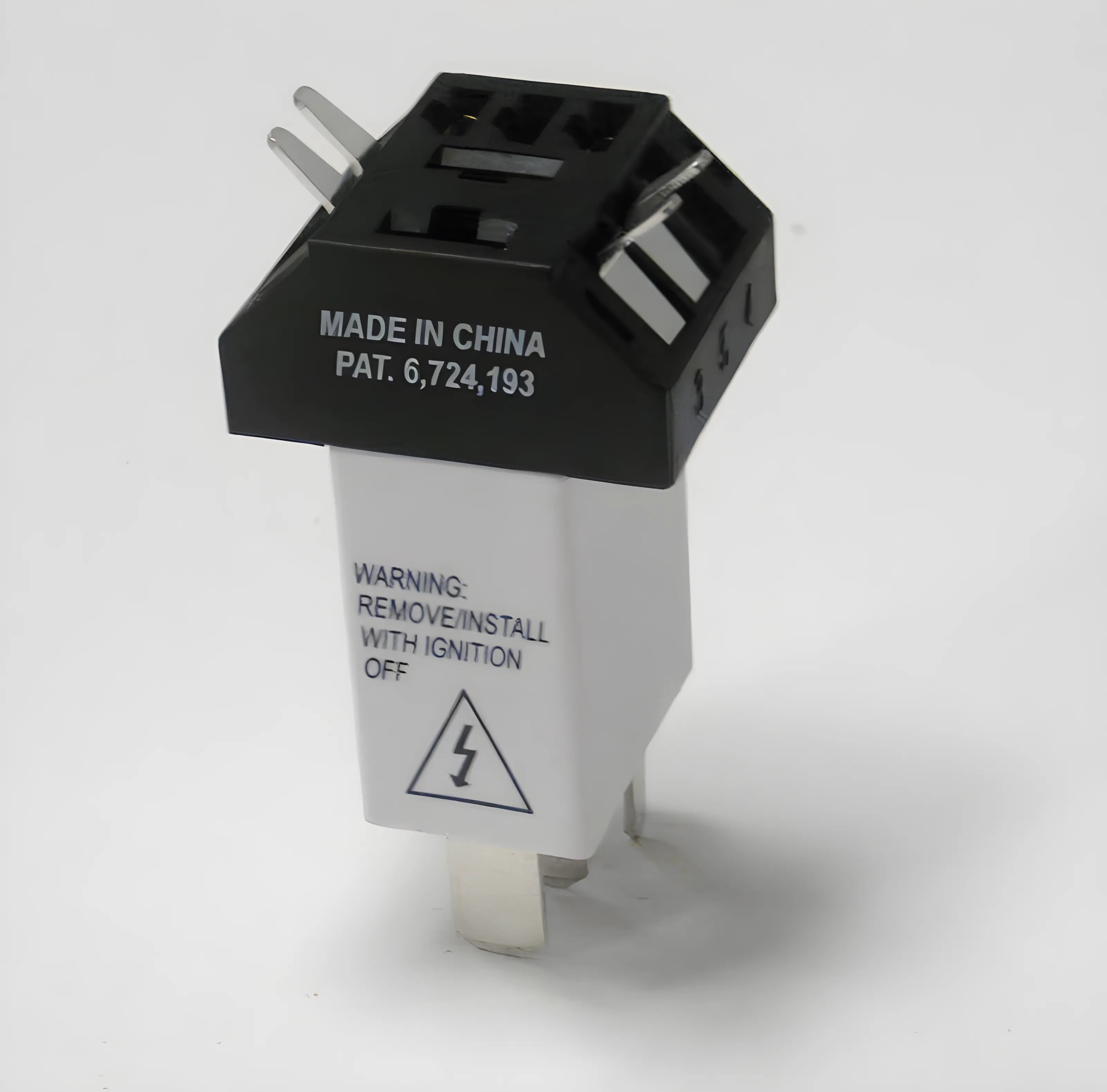

Toyota Relay Test Jumper
(AES# Lis60630)
Makes testing relays or live circuits quick and easy.
Applications:
Toyota, Honda, Nissan, Hyundai. Also some International and other heavy duty trucks.
Instructions:
- No need to pierce wires or connect multiple jumper wires.
- Jumpers has tabs for clamping and flatpads to place test leads on.
Need to Current Ramp a Starter Solenoid on Toyota LS, GS, IS?
Current ramping a starter solenoid on a transverse engine (RX and ES) is fairly easy to do. But it's not so easy on the longitudinal engine models (LS, GS, IS) because the starter solenoid on these engines is not easy to access. But, if you have a modified Lisle Toyota Relay Jumper you don't need to get to the starter solenoid. With a modified Relay Jumper you only need access to the starter relay. AESwave can modify the Lisle Toyota Relay Jumper for you, ask us about it.
Connecting to your Lisle Relay Test Jumper Kit
The Lisle Relay Test Jumpers each have 4 or 5 test ports for your alligator clips or pin tip probes. These test ports are very small and tightly spaced and the clips will crowd each other, and like the pin tip probes, they will slip off easily. We have a solution! Use the Lisle Test Lead Kit for a secure connection.
