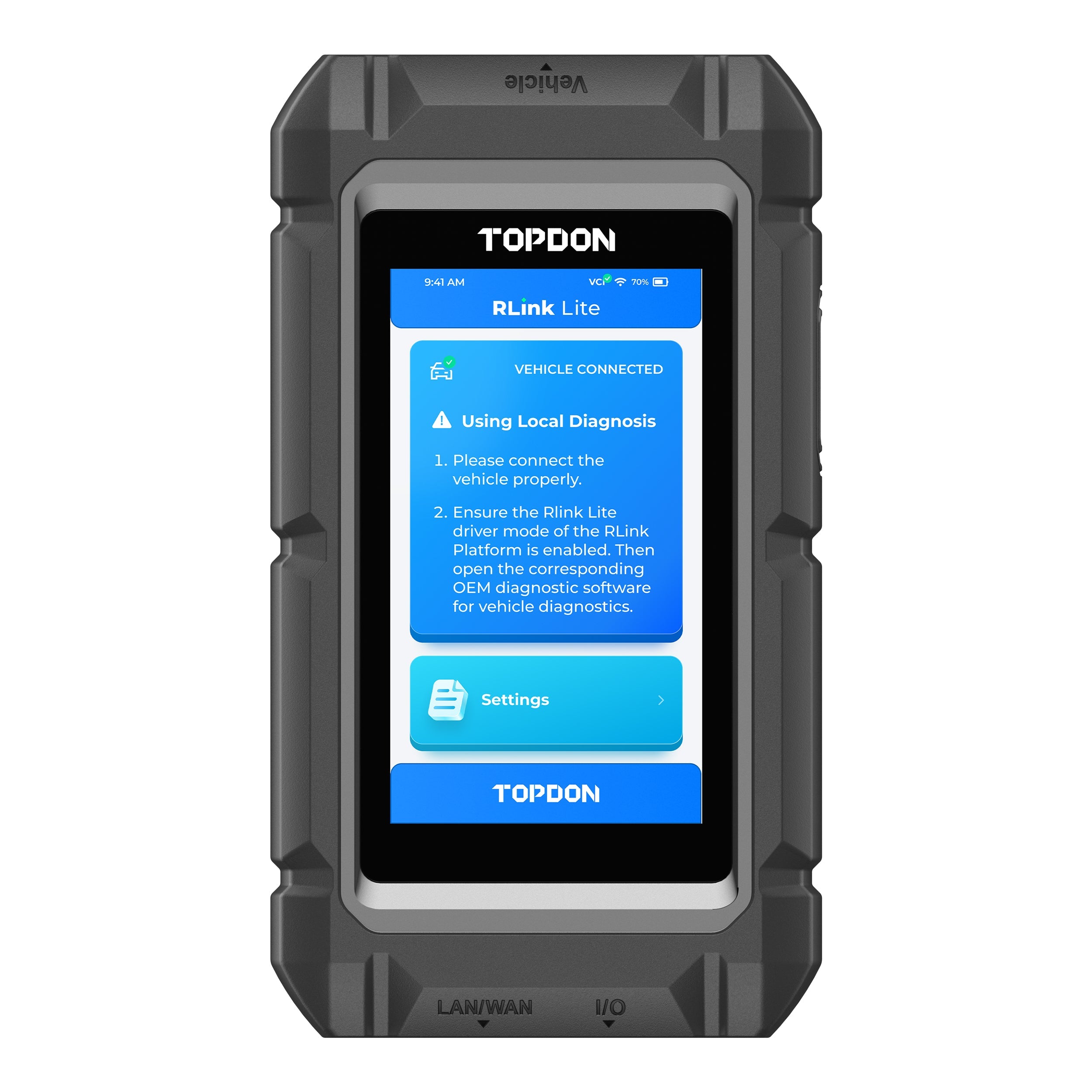

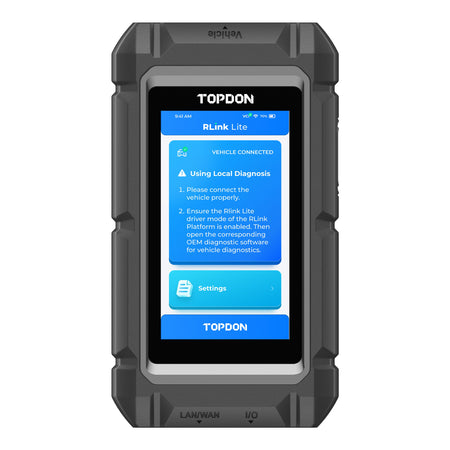

Topdon RLink Lite
The RLink Lite is a versatile diagnostic tool, allowing users to achieve OE-level diagnostics for a wide range of vehicles with a single device. Featuring a user-friendly 5-inch LCD touchscreen, this diagnostic device operates as an OE software VCI box. The RLink Lite provides seamless diagnostics, programming, and coding for renowned car brands such as GM, Ford, Nissan, BMW, VAG, Porsche, and more.
Compliant with three major automotive industry standards—D-PDU, J2534, and RP1210—the RLink Lite ensures extensive vehicle coverage. Simplify your diagnostic process and elevate your capabilities with the RLink Lite, the premier choice for your OEM diagnostic needs.
Features
• Highly compatible with OE-level diagnostic software for performing diagnostic, programming, and coding tasks.

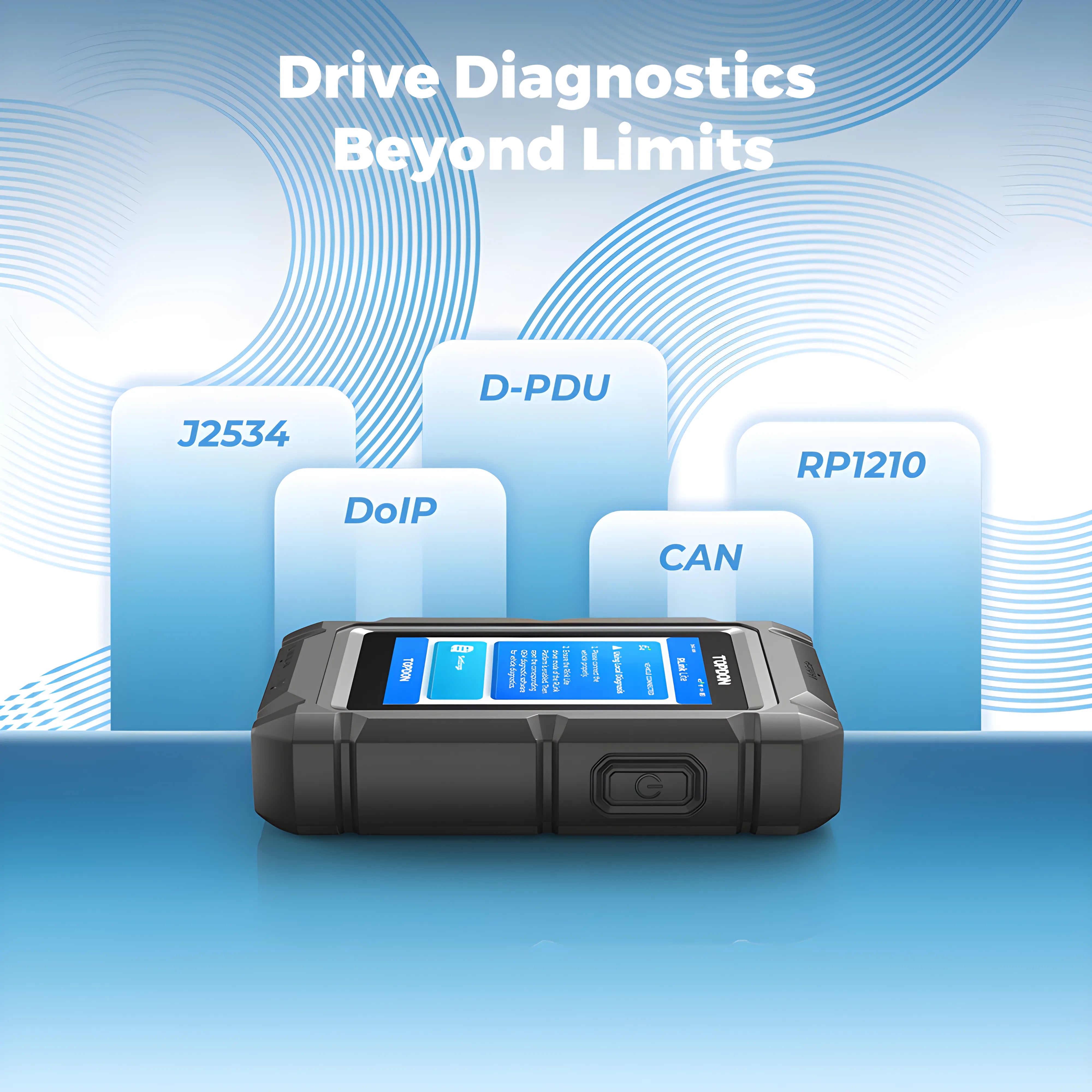

• Supports D-PDU, J2534, and RP1210 standards.
• Compatible with DoIP, CAN, CAN FD, J1850, and K line protocols
• DMS (Driver Management System) accesses a diverse range of drivers for seamless integration with OE software.
• One-click installation of OE-level diagnostic software drivers and online upgrades.
• High-speed DoIP diagnostics for faster data transmission.

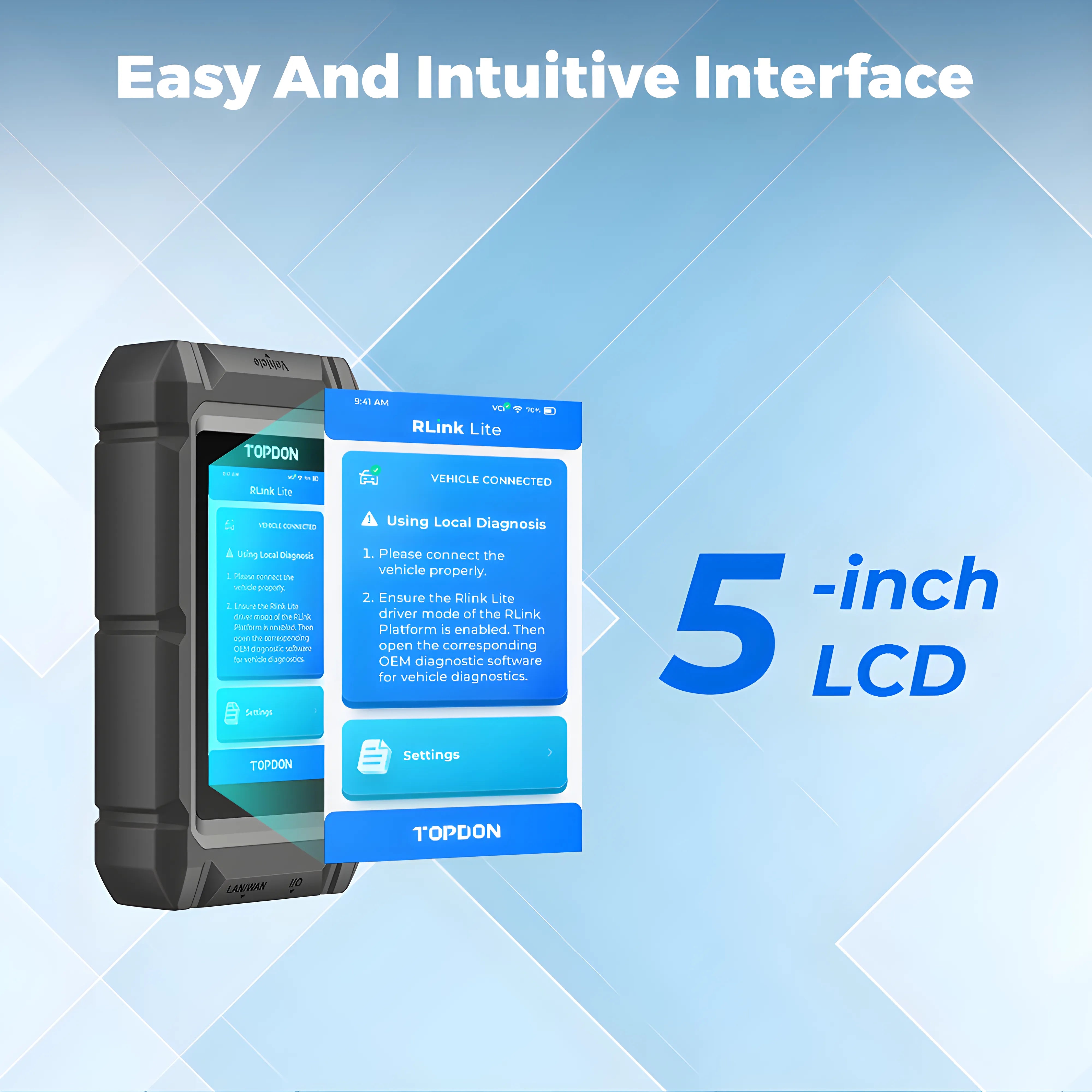

• 5-inch LCD touchscreen with a user-friendly interface.
• Relays key status/position for VAG and Nissan
• Rlink Lite can be used for remote programming via private network. Email us for more info.
Protocols:
SAE-J2534-1 & SAE-J2534-2 Pass-Thru; ISO 22900 MVCI & D-PDU; ISO 14229(UDS); ISO22901(ODX); ISO13400(-DOIP); SAE-J2610 SCI(Chrysler); ISO 15765(CAN); ISO 11898(DWCAN); ISO 14230(KWP2000); ISO 9141; J1850(VP-W/PWM); J2411(SWCAN); ISO 15765; J2740(GM ALDL); J2809(HONDA DIAG-H); J2818(KW81); J2819(TP16/TP20); FORD UBP; BMW DS2; CANFD
Contents
• RLink Lite Interface
• 6.5 Ft. OBD2 Diagnostic Cable
• 16 Ft. Network Cable
• 5 Ft. USB 2.0 Cable
• 12V DC Power Adapter
• Quick Start Guide
• Carrying Case
