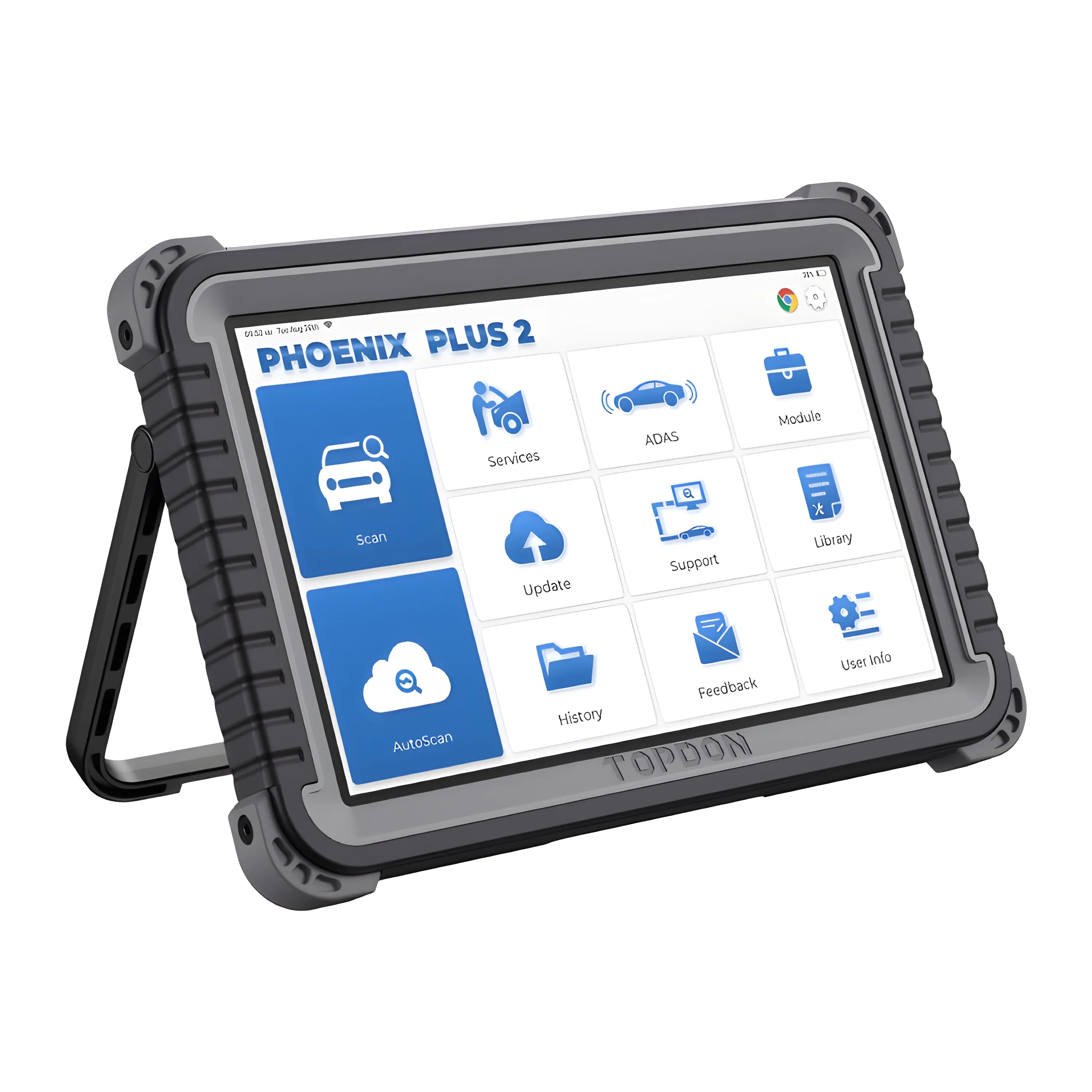

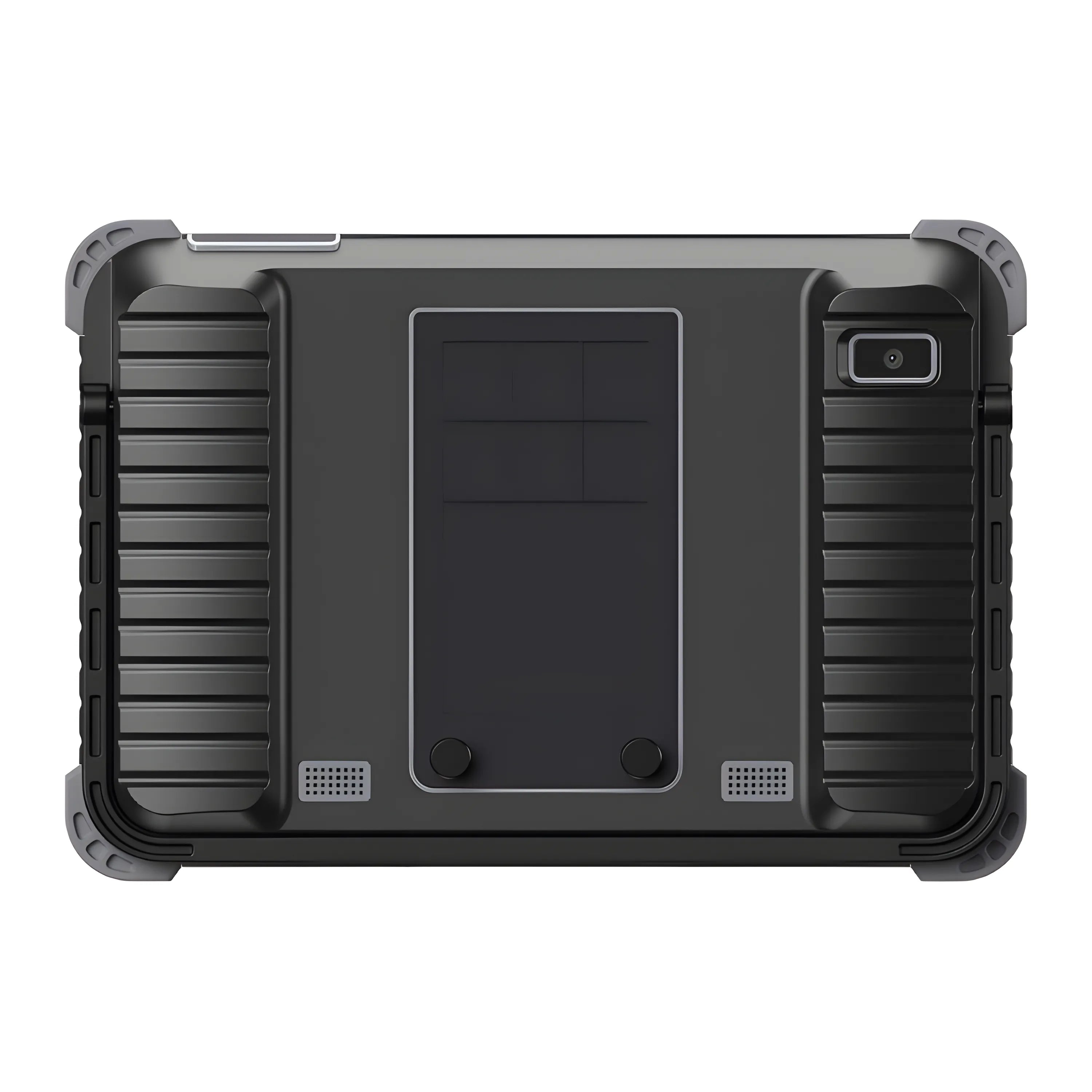

Topdon Phoenix Plus 2
The TOPDON Phoenix Plus 2 is compatible with CAN-FD.
Online ECU Coding
The Phoenix Plus 2 includes some advanced vehicle customization with online module coding capabilities. Modify vehicle settings, enable hidden features, and disable unnecessary options for optimal performance. Active scan tool subscription requried. (This does not include a J2534 capable programming infterface)
OE-Level Diagnostics with CAN-FD Boost
The Phoenix Plus 2 provides comprehensive support for over 160 vehicle brands, covering critical systems like the engine, transmission, and ABS to ensure a complete assessment of vehicle health. Equipped with the latest CAN-FD protocol, it enables ultra-fast data transfer required for newer vehicles, including Ford, GM, and Chrysler models from 2020 onward.
Unlock FCA SGW Access
All 2018 and newer FCA vehicles (some prior to 2018 as well) include a Secure Gateway Module(SGW) which requires the OE scan tool or a third-party subscription to bypass. Without this access and additoinal subscription, you will not be limited to reading codes and live data. No bidriectional capabilities are possible. Go to www.autoauth.com to sign up.
Visualized Diagnosis for Clearer Insights
Experience the benefits of topology mapping, which provides clear system connections and pinpoints critical issues, drastically cutting diagnostic time. The graphical live data display converts raw data into easy-to-understand visuals, allowing for quick identification of trends, anomalies, and potential issues at a glance.
Precise Troubleshooting with Active Tests
Perform vehicle system tests and actuator controls. Technicians can swiftly isolate problems and confirm repairs with confidence. This approach reduces diagnostic time and boosts first-time fix rates, leading to a more efficient and reliable repair process.
41+ Maintenance Services Cover All Your Needs
Includes over 41 essential reset services from routine procedures like oil and SAS resets to specialized functions like throttle adaptation and calibration.
Smart Features for Smart Work
Smart AutoVIN technology streamlines vehicle identification, while VAG guided functions provide step-by-step instructions to make your workflow more efficient.
Wireless to Diagnose Anywhere

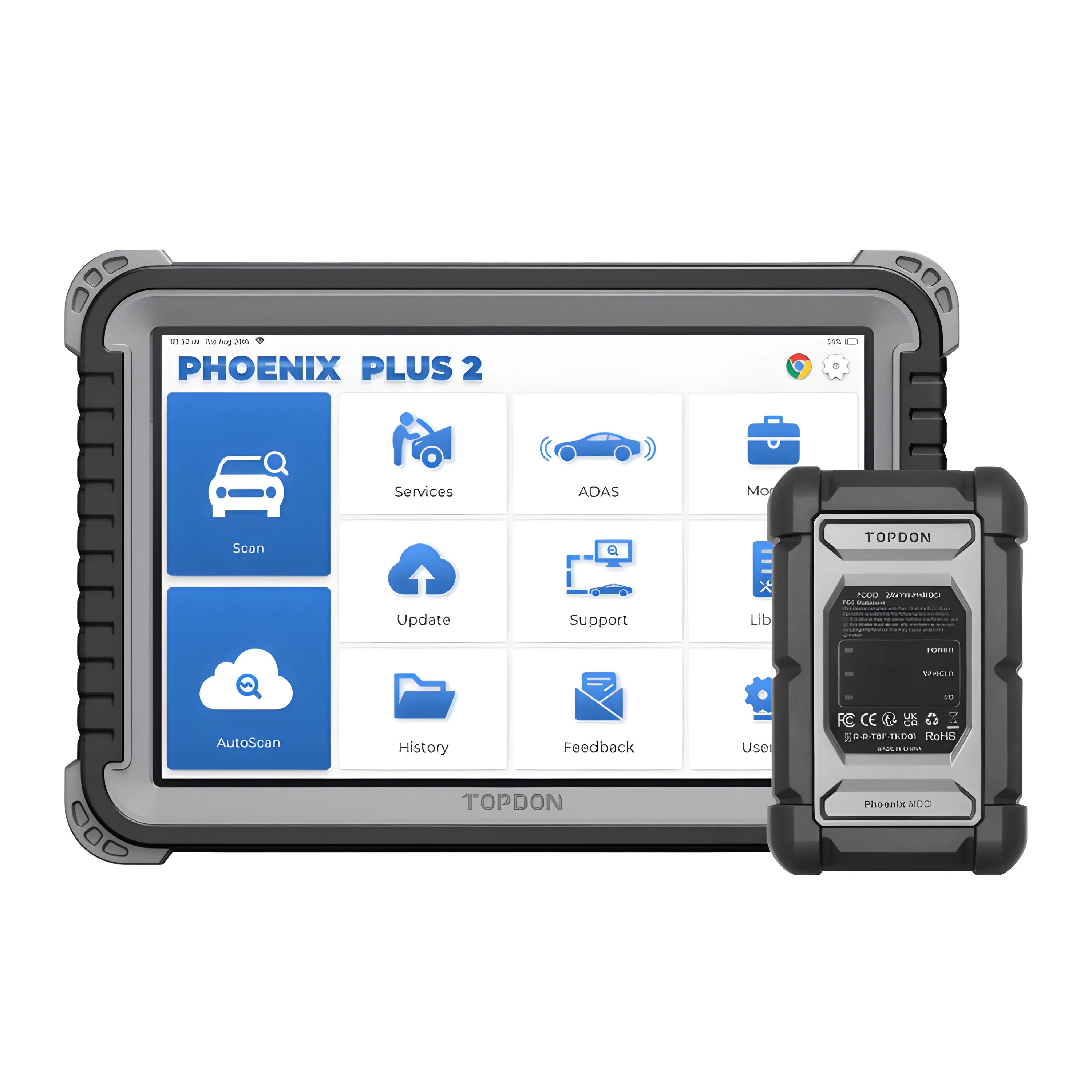

Phoenix Plus 2 includes a Bluetooth MDCI VCI/Dongle and includes arobust 12,600mAh battery. With one-click WiFi updates, you'll always stay up to date with the latest advancements.
Expandable Capabilities with Add-on Modules
Upgrade Phoenix Plus 2 with add-on modules. ADAS calibrations, BT Mobile ProS for battery testing, TC001 thermal imaging, oscilloscope for analyzing electrical signals.
What's in the Box?
- Phoenix Plus 2
- MDCI VCI/Dongle
- Battery Clamps/Cable Set
- Type-C to USB Cable
- OBDl Adapter BOX Transfer Line
- Cigarette Lighter Cable
- Fuse (φ6*30mm) x 2
- Fuse (φ5*20mm) x 4
- Power Adaptor
- OBDll Extension Cable
- BZ-38 (BENZ)
- TA-17
- B-20
- HA-3
- M/H-12+16 (MITSUBISHVHYUNDAI)
- TA-22 (TOYOTA)
- G/V-12 (GMNVAZ)
- CR-6 (CHRYSLER)
- NN-14+16(NISSAN)
- FT-3 (FLAT)
- User Manual
- Package List
- 1 year warranty
- 2 years updates
Specifications
CPU: 4-Core 2.0GHz
RAM: 4G
ROM: 64G
Battery Capacity: 12600mAh/3.8v
Android Version: 10.0
Screen Size: 10.1inch
Screen Resolution: 1280×800
Wi-Fi: 2.4 & 5 GHz
Camera: Rear 8.0 MP
Weight: 1.56kg（3.42lb)
Communication: MDCI VCI/Dongle
