Topdon Phoenix Max Basic (no scope)
Includes these freebies (while supplies last)!
- Additional Screen Protector
- TopDon ArtiLink400
- TopDon ArtiBattery101

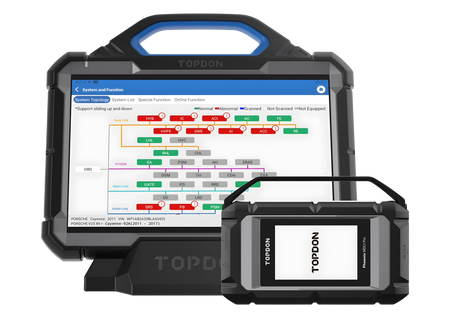

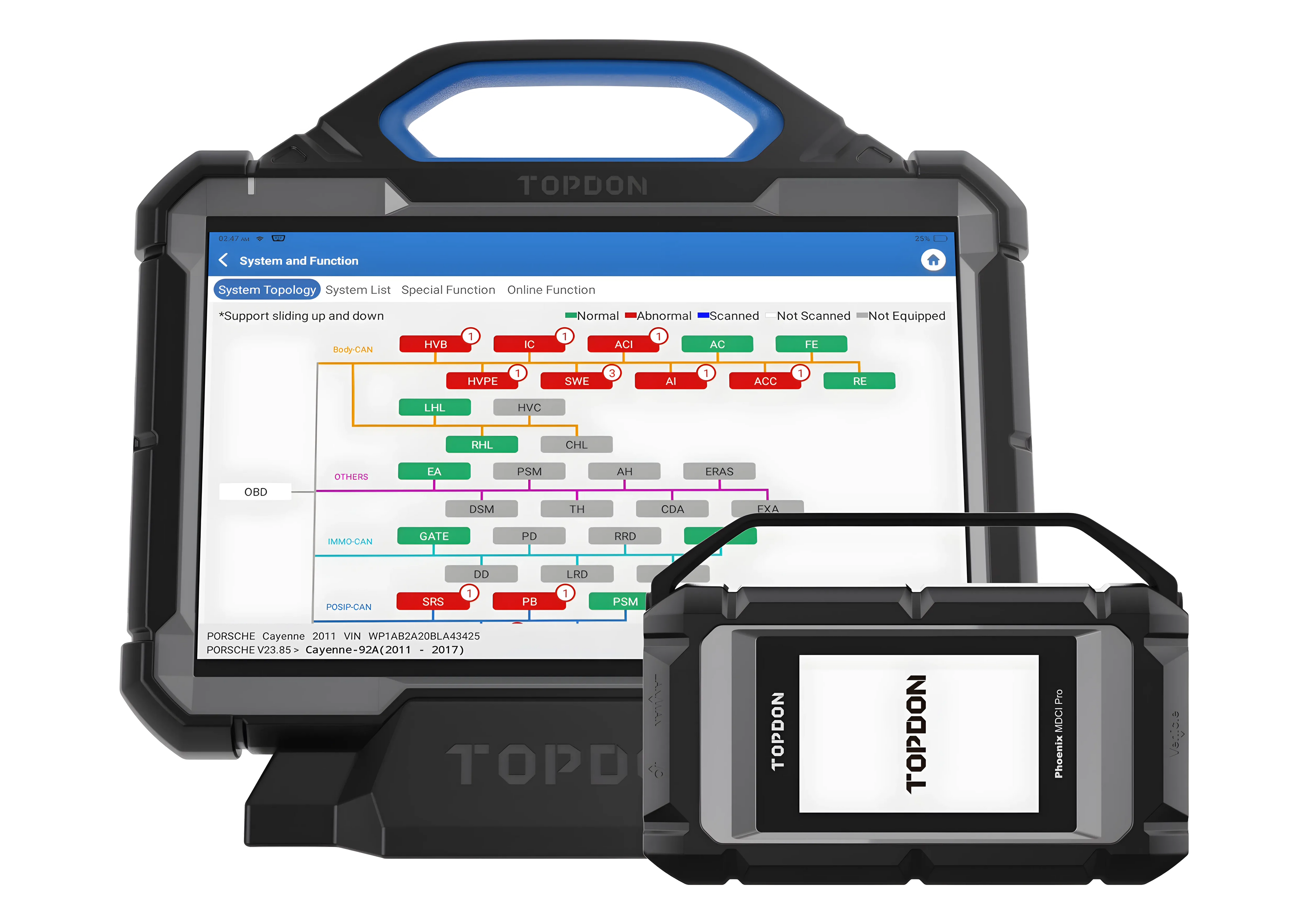

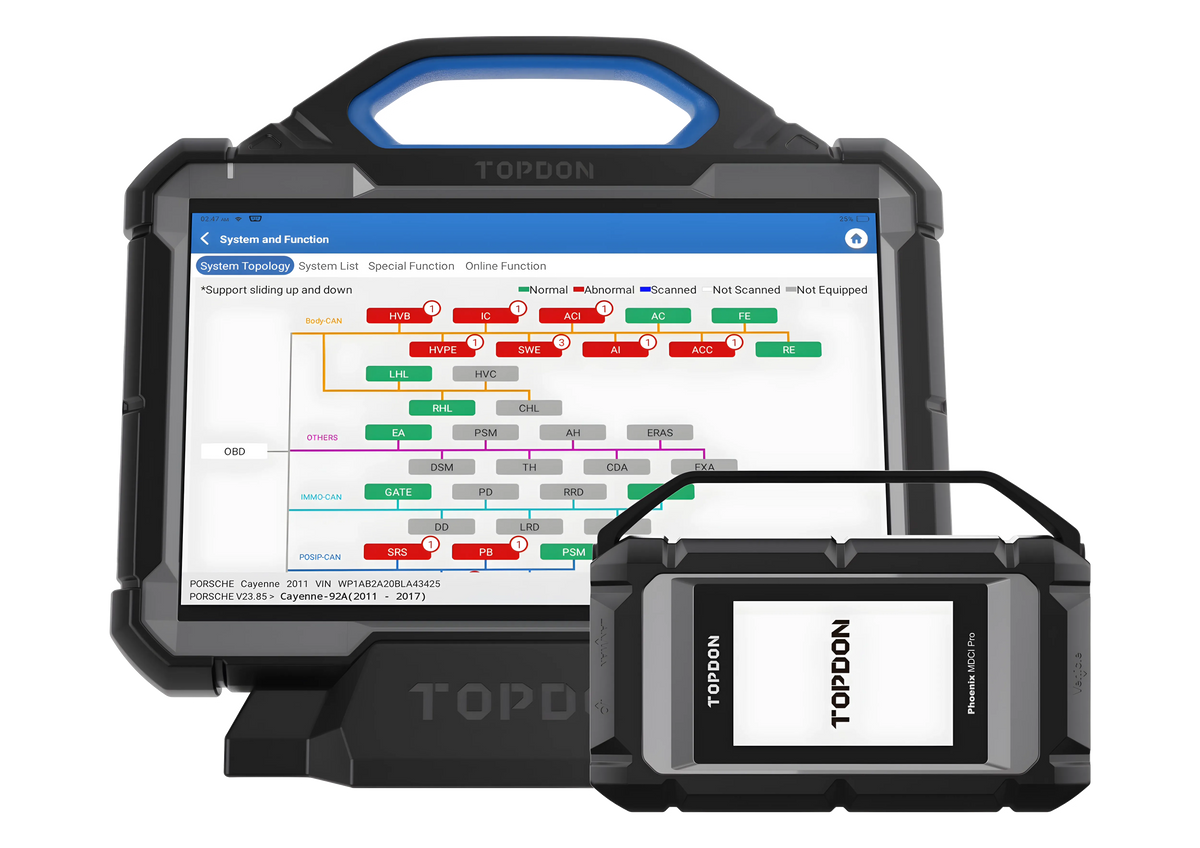

The Phoenix Max is TOPDON's newest automotive diagnostic scanner. With a 13.3" screen, this all-in-one tool offers a wide array of capabilities that will expand any technician’s capacity to complete even more jobs. The Phoenix Max includes automotive scan diagnostics and Topology Mapping that shows all car systems in one view. Its updated MDCI (Modular Diagnostics & Communication Interface) includes the latest protocols, allowing professionals to perform more complex repairs on various automotive, and heavy-duty vehicles. (HD Vehicle software and cables sold separately)
The MDCI is a J2534 interface. the drivers are currently in beta testing and expected to be released soon. If you would like to try the beta drivers contact AESwave or Topdon support.
Features
- OE-Level functionality from comprehensive OBD2 diagnostics & services to advanced ECU coding and programming
- 13.3-inch HD capacitive touch screen, 1900x1200 resolution
- 8-hr battery 18600mAh
- Rubberized outer protection and rugged internal housing.
- USA-based tech support with industry-leading, 1-hour callback promise.
- Cloud-based programming (beta) and Online Coding
- Module replacement and Programming
- 21 Special functions
- Compatible with AutoAuth
- Automatic power-off to preserve battery life
- Personalization functions
- Compatible with optional upgrades: ADAS Activation Point Card, Phoenix Mobile ADAS, BTMobile Pros, T-Ninja Box (each sold separately)
Coverage and Functions
Domestic (1996-newer), Asian (1996-newer), Euro (2000-newer), and Supercars. View coverage details, select Phoenix Max from the list. 21 Special Functions:
• ABS Bleeding
• Adblue Reset
• AFS Reset
• Battery Matching
• Brake reset
• Coolant Bleed
• DPF Regen
• EGR Adaptation
• Gear Learn
• Gearbox Learn
• Electric Throttle Relearn
• Immobilizer
• Injector Coding
• NOX Sensor Reset
• Oil Reset
• SAS reset
• Seat Calibration
• Sunroof Reset
• Suspension Reset
• Tire Reset
• TPMS Reset
Cloud-Based Programming (beta)
- Audi Guide Function, Personalization, Module Programing
- BMW Coding, Initialization, Personalization (E & F series) module programming, DTC repair guide
- Land Rover/Jaguar Module Programming
- Mercedes-Benz Module programming, SCN Coding
- Nissan Module Programming
- Porsche Module Programming, Personalization
- Toyota Personalization
- Volkswagen Guide Function, Personalization, Module Programming

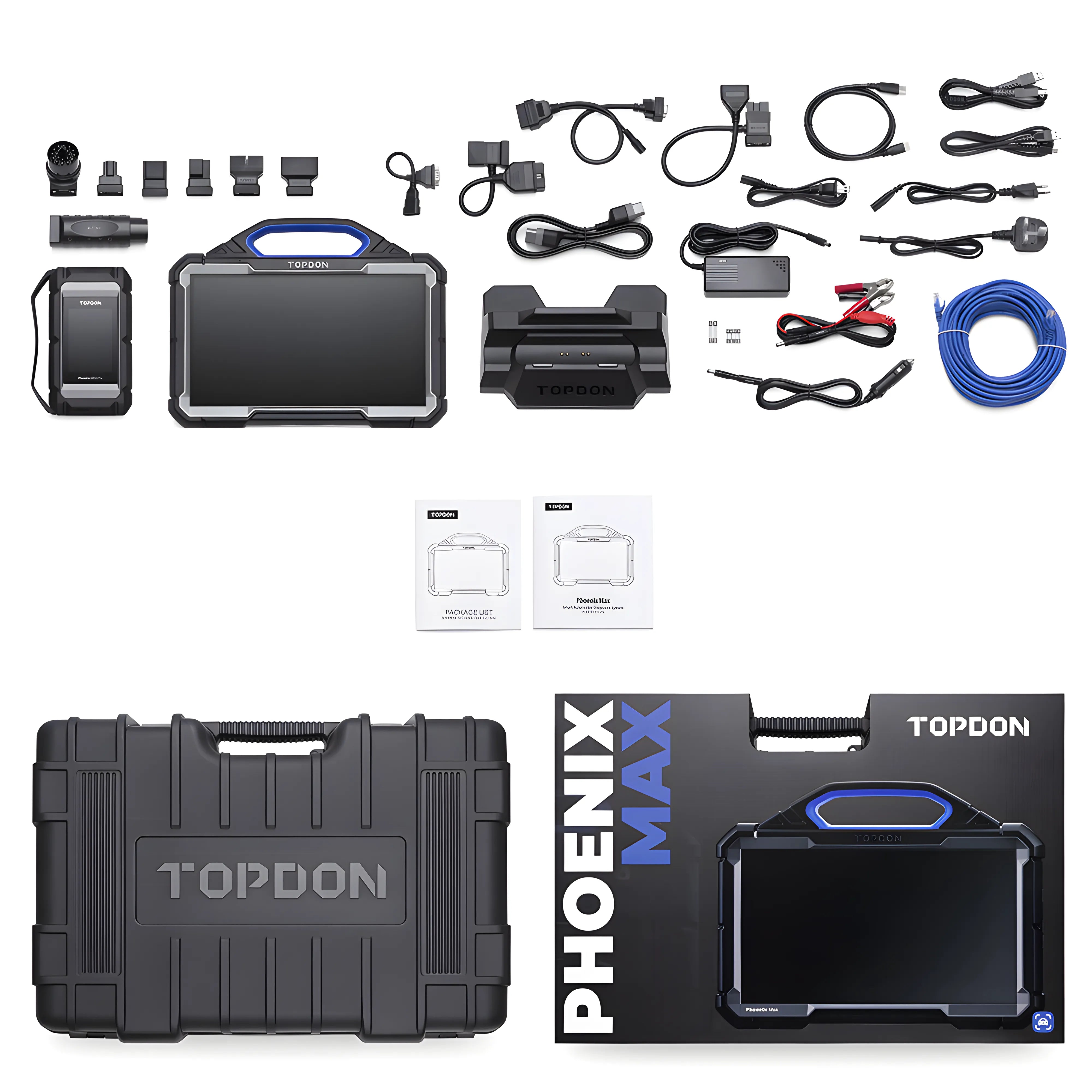

Package Contents
• Phoenix Max Tablet
• MDCI Equipped with CanFD, DoIP, D-PDU, and RP1210 Protocols. (No MEGA CAN programming)
• OBDII Extension Cable
• BMW Programming Line
• Non-16pin Adaptor Cable Kit
• Ethernet Cable
• USB Ethernet Adapter
• Type-C to USB Cable
• Cigarette Lighter Cable
• Battery Clamps/Cable Set
• Power Adapter
• Docking station
• Password Envelope
• User Manual
Warranty & Updates
2-years Warranty (Revived with each subscription update renewal)
2-years of updates for Automotive
