Test Drive Leads for Pico 4823 8-channel Scope

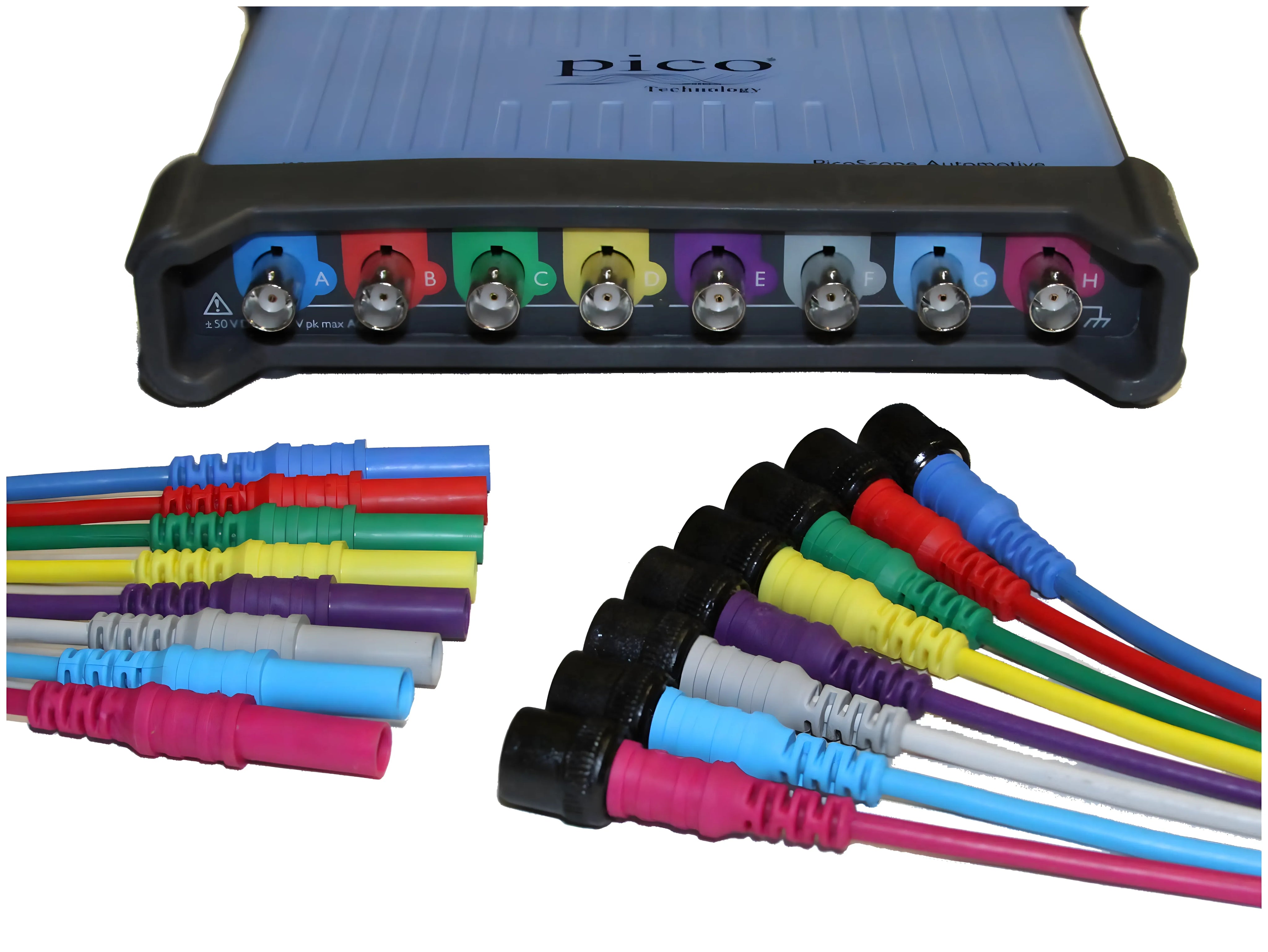

10-ft shielded leads colored to match the eight colors of the Pico 4823. Each lead includes a ground port for use with removeable ground lead.
The kit includes two ground leads: 3-ft and 10-ft. Use the short lead to connect directly at the circuit. The longer lead has an attached clamp for connection at the battery.
The Pico 4823 8-channel scope has a common ground configuration. This means that all eight channels share the same ground circuit and only one channel needs to be grounded at a time.
With a common ground scope, connecting multiple grounds at different locations on the vehicle has the potential of creating a current loop through the ground circuit and damaging the scope.
Contents
- Eight (8) Leads: 10-ft each with your choice of stacking plug or straight plug
- One (1) Removable Ground pigtail: 3-ft with stacking plug
- One (1) Chassis Ground: 10-ft with Battery Clamp
After placing your order an email will be sent asking you to let us know which type of banana plug to use: stacker or straight.
