Terminal Leads with Power/Switch/Fuse

The Lisle Terminal Leads with Power/Switch/Fuse Kit provides easy access to check current or voltage on nearly all of the fuses and relays used on vehicles today.

Also allows testing of relay configurations not covered by our eight Relay Test Jumpers, like Volkswagen, BMW and other European vehicles. Add this to the lis60660 to make the lis69300.

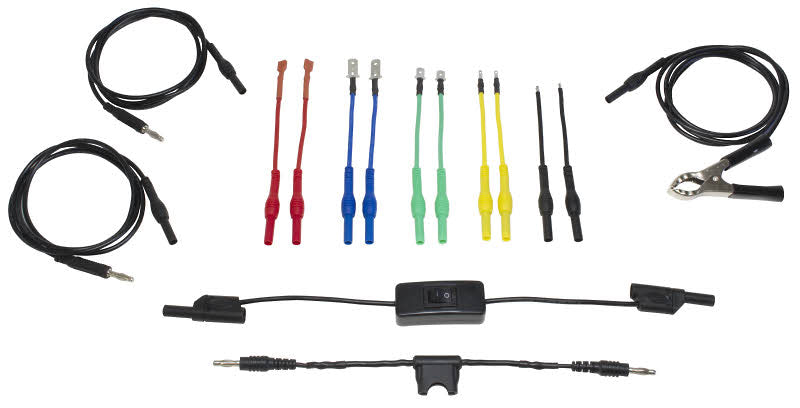

Includes

1 - On/Off Switch with 4mm Stackable Banana Plugs, gives you the ability to control the circuit on and off. Includes an inline ATO fuse holder to protect the meter being used and the circuit on the vehicle. Stacking banana connectors on the switch allow technicians to connect a multimeter into the circuit to test the voltage or current and also provides series break-in point to use multimeter for current testing instead of a clamp on meter.

Includes five pairs of terminal lead wires with different size male and female spade ends and one set that has no ends on it, so you can crimp on any style of end that you need. The lead wires provide circuit access on many of the fuses used on vehicles today, such as the Female-Pal, JK, LJK, Male-L-mini, Mini, ATO, and Maxi.
2 - Red 4mm Banana to 1/4" Female Terminal
2 - Green 4mm Banana to 1/4" Male Spade
2 - Yellow 4mm Banana to 2.75mm Male Spade
2 - Blue 4mm Banana to 7.75mm Male Spade
2 - Black 4mm Banana to Stripped Wire End

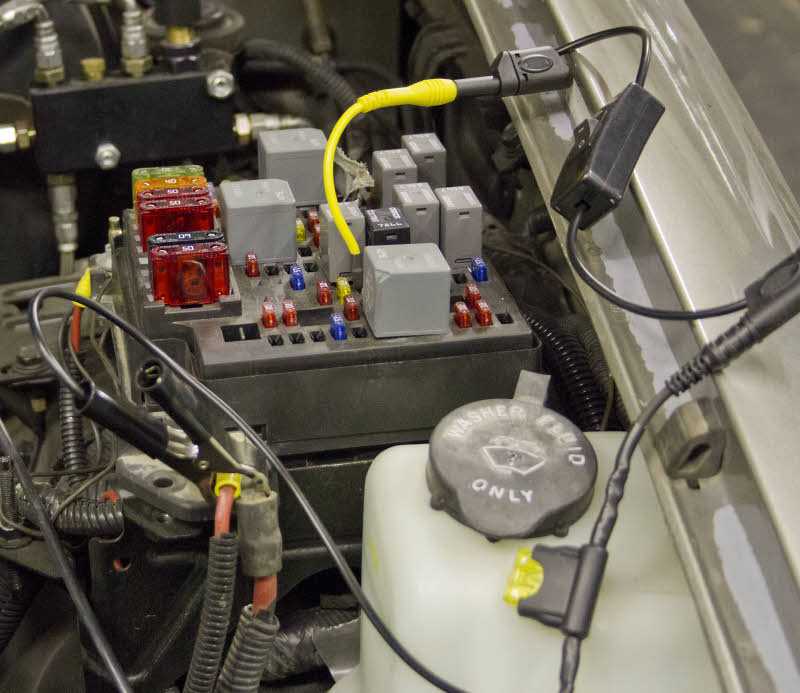

2 - 3-1/2 foot extension lead wires, to move the switch away from the electrical panel or to the ground when the vehicle is lifted. The circuit can be powered for testing by using the vehicle's normal power source for the circuit, or use the power lead connected to the 12 volt positive side of the battery.

1 - 4mm Female Banana to Alligator Clamp - 4'

1 - 4mm Banana Males with Inline ATO Fuse Holder. Use the same size or smaller fuse than the circuit you are testing. An ATO circuit breaker fuse can also be used to eliminate replacing fuses.
