Relay Test Jumper Kit

* Set of Four Relay Test Jumpers Make Testing Relays or Live Circuits Quick and Easy
* Set includes four jumpers to fit the most popular size relays on domestic and import vehicles
* Simply remove relay to be tested, insert correct jumper and insert relay into jumper
* When using green four pin jumper be careful to align pins on jumper and relay correctly
* No need to pierce wires or connect multiple jumper wires
* Jumpers have tabs for clamping and flat pads to place test leads on
* Set comes in blow-molded case for storage

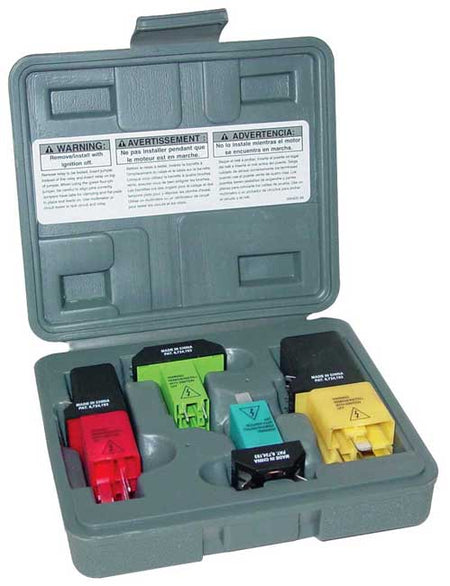

Contents
The Relay Test Jumper Kit includes four relay test jumpers:
* Red (overall length 2.8" x 1.1" square approx.)
* Green (overall length 1.64" x 1.6" square approx.)
* Yellow (overall length 2.8" x 1.3" square approx.)
* Blue (overall length 1.64" x 1.1" square approx.)
* Hard plastic case

Is overall length important?
Yes, size is important because some relays (not in the junction box) are often located in tight spots. For example, some Cadillac's have relays behind the battery under the air intake.

Connecting to your Lisle Relay Test Jumper Kit
The Lisle Relay Test Jumpers each have 4 or 5 test ports for your alligator clips or pin tip probes. These test ports are very small and tightly spaced and the clips will crowd each other, and like the pin tip probes, they will slip off easily. We have a solution! Use the Lisle Test Lead Kit for a secure connection.
