Relay Bypass Switch Kit with Amp Loop
Energizes a Fuel Pump with the Push of a Switch!

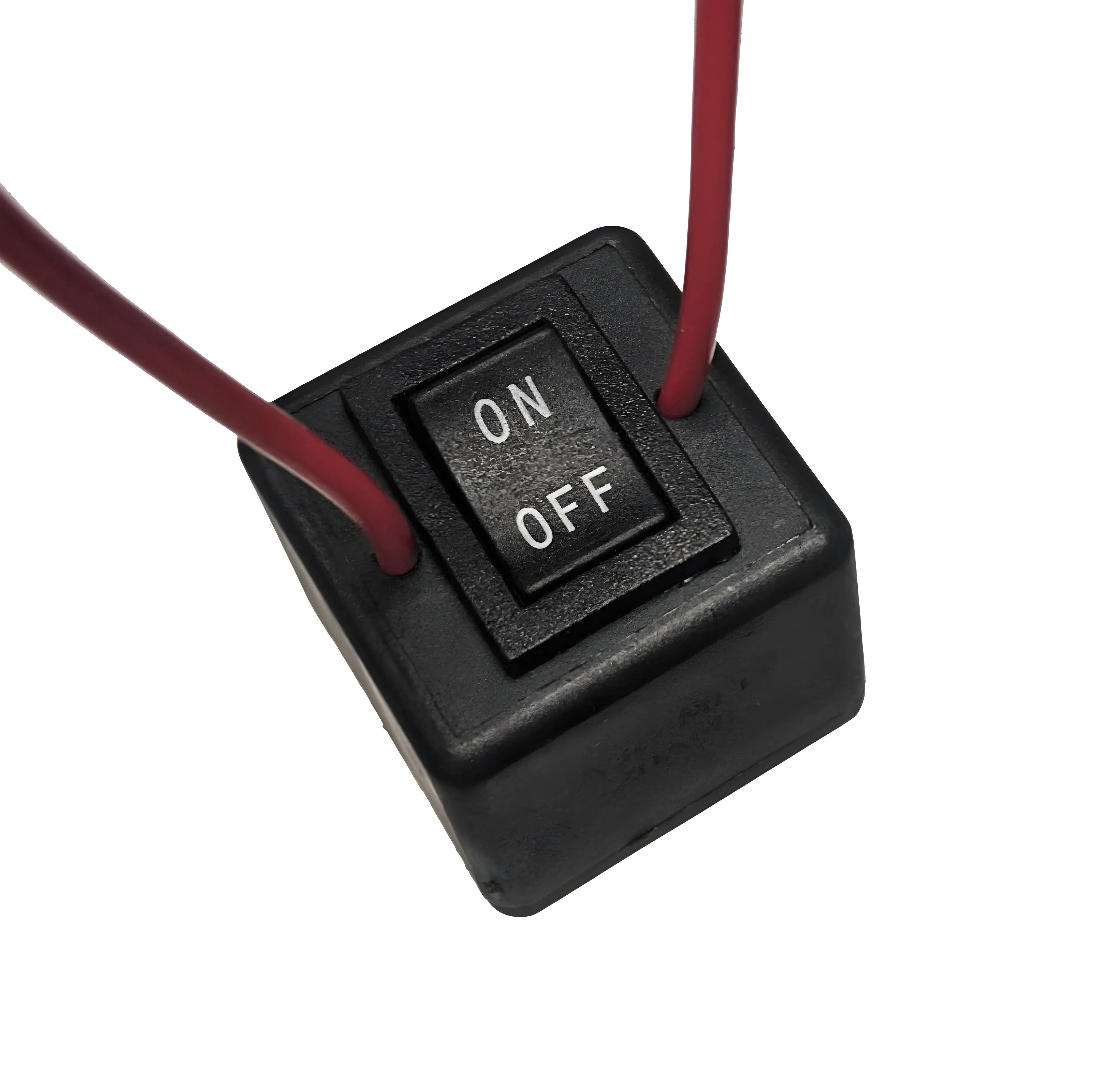

The Relay Bypass Switch with Amp Loop allows you to activate any circuit or component that has power supplied from a removable relay. Energies Fuel pumps, Blower Motors, Fans, Staters and more. It also makes DC motor actuation and current monitoring easy. The provided current loop allow technicians to easily attach an amp clamp or lab scope to monitor the current readings. It allows a technician to judge the health of the DC electric motor to identify if a motor is drawing more current than specified, or if the current load is inconsistent during operation.
This set includes six spade relays compatible with most foreign and domestic applications.

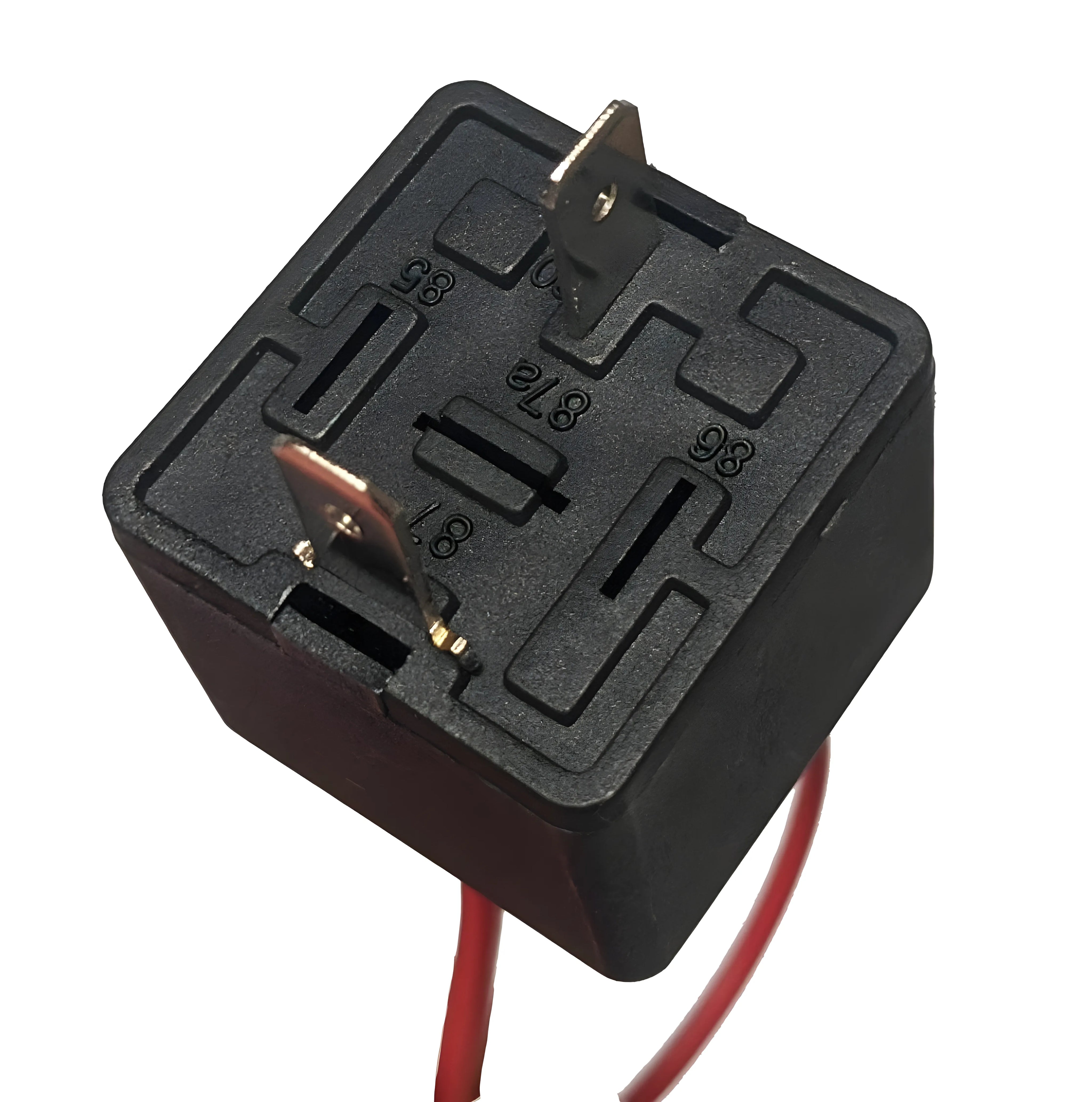

These circuit switches are not functional relays. There are no pins for the control circuit and it will not respond to vehicle control of the relay.
• Controls relay circuits independent of “key-on/key-off” systems
• Run automotive, 12V DC motors with a push of a switch
• Use in conjunction with clamp-on Amp Probes and Lab Scopes
• Operating range: Up to 20 amp continuous, 30 amp surge (12V)
• Covers most makes and models
Contents
• Small Spade Relay – Domestic, Korean, and Japanese 2000 and Newer (#9036A-1)
• Medium Spade Relay – Domestic and Japanese 1970-2009 (#9036A-2)
• Large Spade Relay – Volkswagen 1999-2005 Audi 2004-2006 (#9036A-3)
• Large Rectangular Relay – GM, Chrysler, and Japanese 1995-2007 (#9037A-3)
• Square Relay – BMW 1995-2006 (#9037A-2)
• Small Rectangular Relay – GM, Chrysler, and Japanese 1985-2009 (#9037A-1)
• Cardboard storage tray with labels foam cutouts
