Pro Automotive DMM w/PC Interface
(AES# esi-595)
The #595 is a premier automotive diagnostic multimeter equipped with the latest testing capabilities, including Milliseconds Pulse Width for measuring the on-time of fuel injectors.
The #595 features a huge LCD display w/bargraph for easy viewing.
This meter can even be interfaced to your PC or notebook computer for enhanced diagnostics and data presentation.
Features
* CAT III 1000 Volt rated - safe to use w/Hybrids
* 58 Test Ranges, 16 Test Functions
* Huge LCD display w/analog bargraph, large digits and brilliant backlighting
* Ms Pulse Width for fuel injector on-time
* Max/Min function captures high/low readings for better diagnostic capability
* 4 Step adjustable trigger levels
* RS-232 PC Interface
* 20 Amp fused test range
* Special access panels for fuses
* Hard Storage Case for safe storage
* Auto Power-Off, saves batteries
Test Functions
- AC/DC Voltage
- Resistance
- AC/DC Current
- Non-Contact IR Temp in F & C
- Temp via Contact Probe F & C
- RPM & (DIS) RPM
- Milliseconds Pulse Width
- Dwell (direct)
- Frequency (Hz)
- Duty Cycle
- Capacitance
- Diode Test
- Continuity

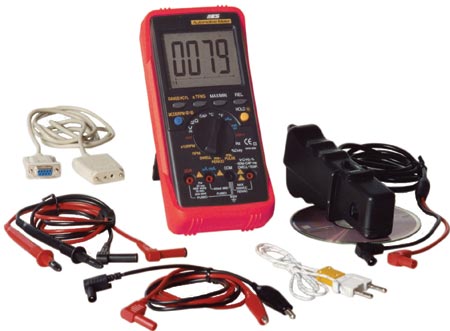

Kit Contents
* #595 Meter CAT III 1000 Volt rated
* Two Test lead sets both CAT III 1000 Volt rated
* Inductive RPM pick-up w/five position, adjustable sensitivity switch.
* K-type Temperature probe
* Software CD
* PC interface cable
* Protective holster
* 9 volt battery
* Instructions manual
* Hard storage case
* 1-year warranty
How does the 590 True RMS meter compare to the other ESi meters?
