Power Probe EV Tester (PPEVTESTCBINT)
The compact PPEVTEST EV Tester from Power Probe is ECE-R100 compliant multimeter that combines 3 essential EV testing tools:
- 1000V CAT III AC/DC Voltmeter
- 1kV insulation tester
- true milliohm meter into one device.
It accurately measures resistance from 0.001mΩ to 40kΩ, ensuring precise diagnostics. Bluetooth compatible, it includes smart diode tests, wire length calculations, capacitance up to 1000µF, insulation tests up to 1000VDC, and more. With a 2.8" TFT screen, 400 test result storage, and the ability to measure temperatures up to 752°F.
Comprehensive Testing Capabilities:
- Replaces a 1000V CAT III AC/DC Voltmeter, 1kV insulation tester, and true milliohm meter.
- Measures resistance from .001mΩ (4-wire) to 40kΩ (2-wire) for unmatched accuracy.
Bluetooth Compatibility:
- Connects to other devices for remote data access and enhanced functionality.
Advanced Diode Testing:
- Includes smart diode tests for precise diode evaluation.
Wire Length Calculation:
- Accurate wire length measurements to aid in diagnostics.
Capacitance Measurement:
- Measures capacitance up to 1000µF for EV components.
Insulation Testing:
- Performs insulation resistance tests up to 1000VDC with 200GΩ range and includes PI & DAR calculations for in-depth analysis.
Bonding Test:
- Measures bonding resistance up to 1A for safety checks.
Data Storage:
- Stores up to 400 test results for easy reference and analysis.
Temperature Measurement:
- Measures temperature up to 400°C (752°F) for component testing and diagnostics.
Clear TFT Screen:
- 2.8-inch TFT display provides clear, easy-to-read test results for quick and efficient diagnostics.

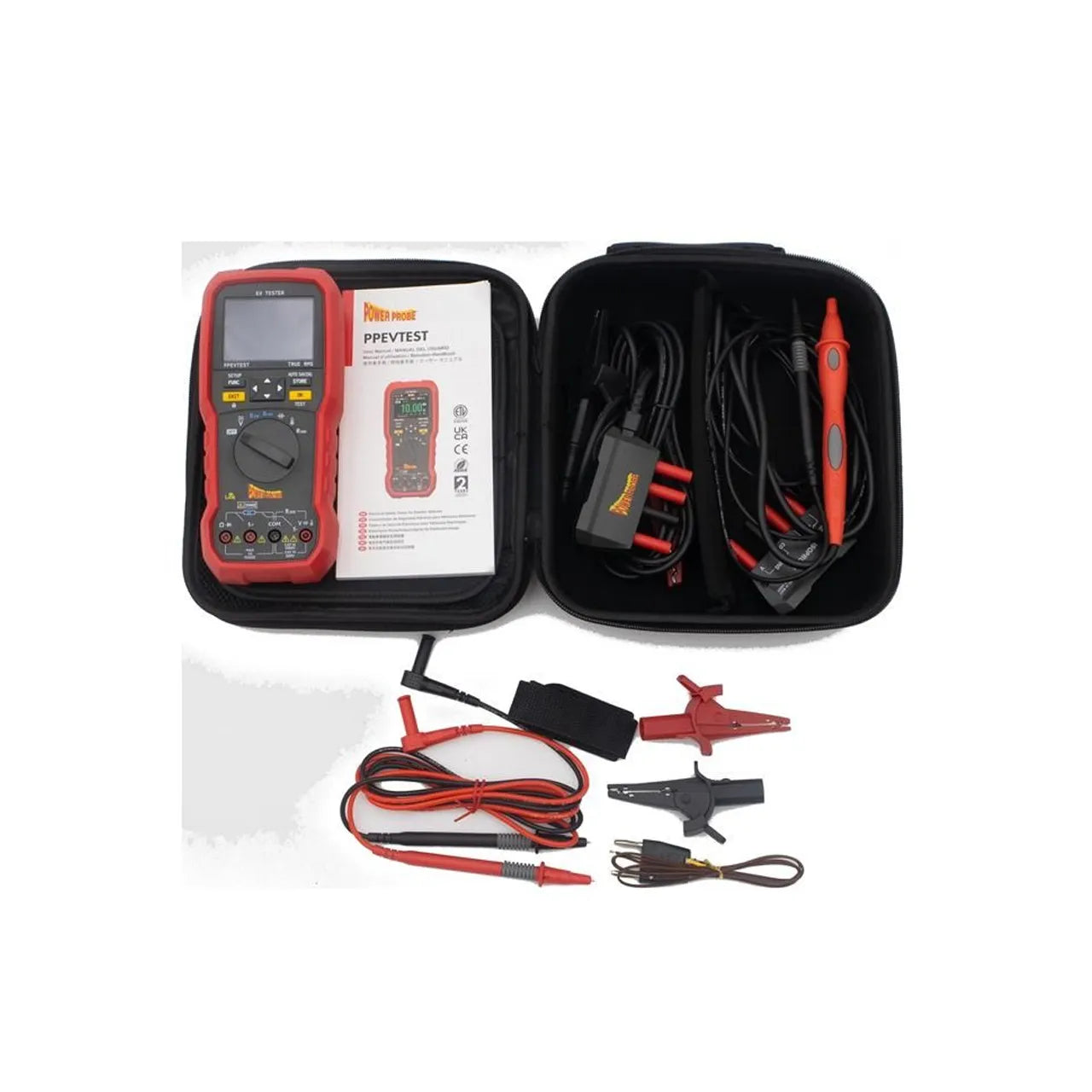

Contents
- Power Probe EVTEST tester
- Alligator Clip set
- CATIII 1000V / CATIV 600V Threaded Test Leads
- Kelvin 4-Wire CLIP4W Test Leads
- ISOPROBE Test Leads
- K-Type Thermocouple for Temperature Measurement
- Magnet Strap
- User Manual
- Protective Carrying Case
- 2 Year warranty
