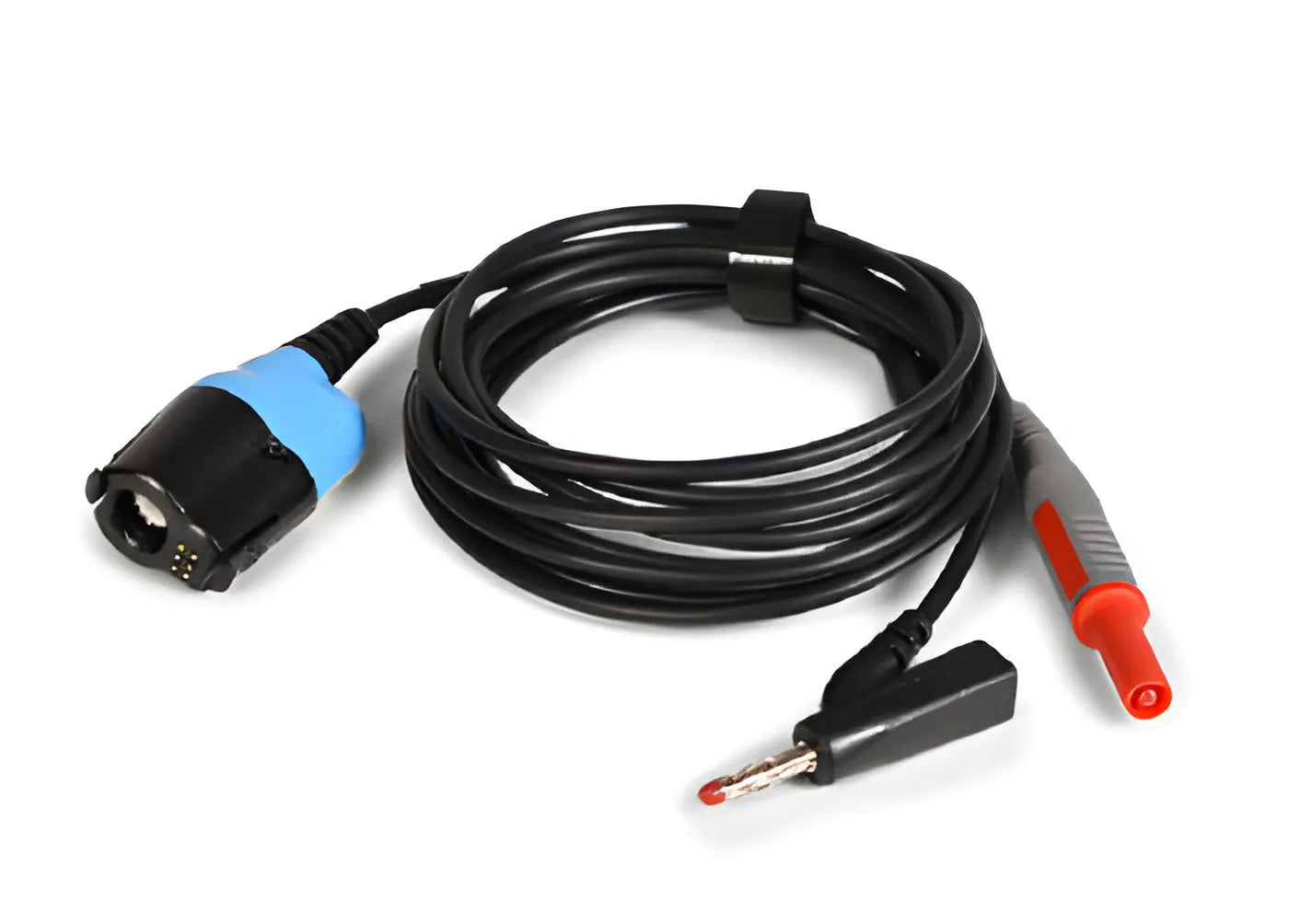

PicoBNC+ 10:1 Pico Attenuator (pt-TA506)
Regular price
$78.00
This accessory is only available for PicoBNC+ and will not work with older PicoScope models.
The compact design of the TA506 contains the entire attenuator circuit of a traditional oscilloscope probe, but within a 4 mm connector body. With a fixed x10 attenuation it is intended for high-speed signals like CAN, FlexRay and also for higher voltage signals such as primary ignition.
The TA506 is automatically recognised by PicoScope software when connected to the scope.
| Specifications | |
|---|---|
| Attenuation ratio | 10:1 |
| Bandwidth | 20 MHz |
| Rise time (calculated) | 17.5 ns |
| Input resistance | 10 MΩ ±2% |
| Input capacitance | 33 pF ±1 pF |
| Max. working voltage | 400 V pk |
| Total length | 2.85 m nominal |
| Weight | 100 g |
