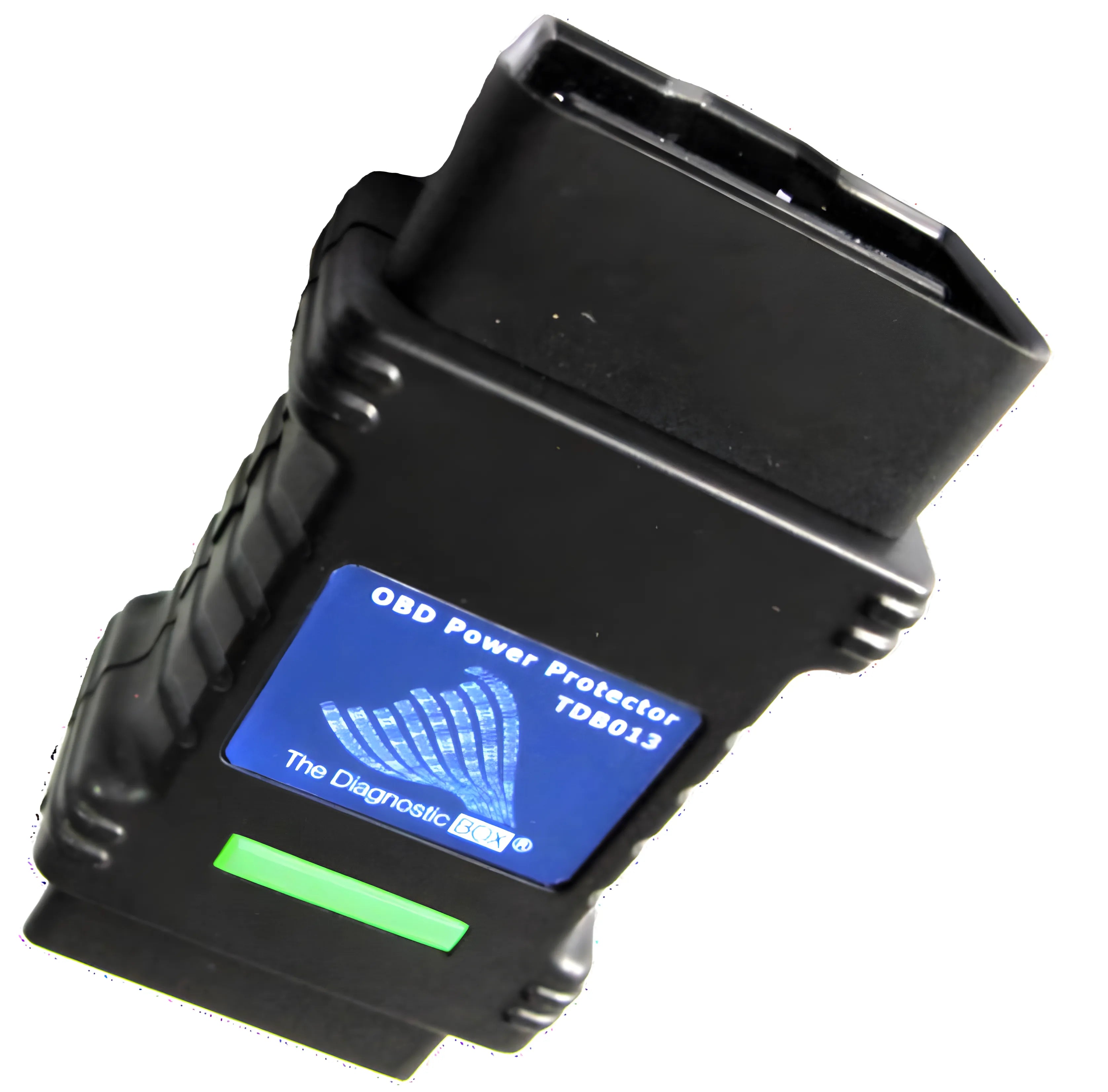

OBD Port Protector and Booster
(AES# TDB-013)
The TDB013 OBD Power Booster and Protector protects your scan tool from being damaged by issues with the vehicle you are testing.
With jump packs, booster packs and car chargers the amount of interference, voltage spikes and voltage surges can easily damage scan tools.
The TDB013 adds an additional level of insurance and will take the damage while protecting your expensive scan tools.
An additional clever feature of the TDB013 is its ability to manage the supply voltage that is on Pin 16 of the OBD port. This varies depending on the vehicle, condition of the battery and the wiring from the battery to the OBD port. It is not uncommon to have only 11 volts at the OBD port when the battery is at 12 volts. The TDB013 will maintain 12 volts to your scan tools regardless whether the OBD port is at 10 volts or even 15 volts.
Specifications
• Max Input voltage: 24 volts (clamping will occur at 27~30V)
• Minimum input voltage: 5 volts
• Continuous current: 1 amp
• Maximum load current: 2 Amps (for 1 minute)
• DC to DC converter frequency: ~ 300kHz
• Efficiency: 80% @ 1Amp
• Nominal Output voltage: 13 volts
• Input current protection: 5 Amp resettable fuse
• Temperature range: 0 to 50 ˚C
• Size: L 85mm, W 45mm, H 25mm
• IP Rating: IP10
• LED indicators
• Input Connector: OBD16 pin Male
• Output Connector: OBD16 pin Female
Contents
- TDB013
