Mixmaster 12-Channel Automotive Signal Mixer
(AES# pt-PP361)
Now you can see a twelve-cylinder secondary ignition parade on your Pico Scope. Mixmaster can produce a parade display of up to twelve cylinders using a single channel of your Pico Scope. If you have a two-channel or four-channel Pico Scope the Mixmaster will also display two engine banks separately with up to six cylinders per bank.

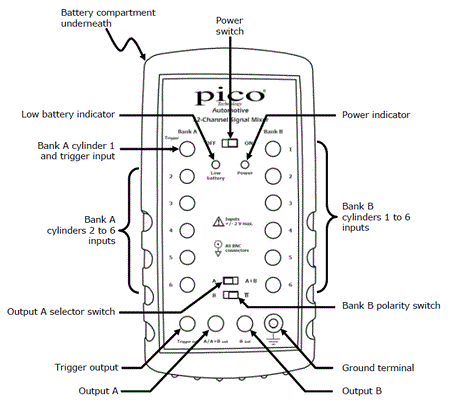

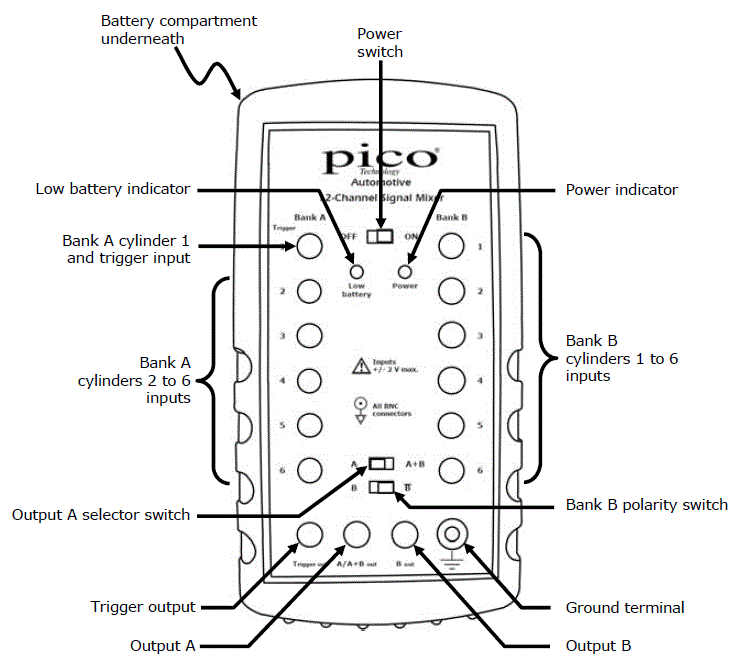

Pico Mixmaster is battery-powered, rugged and conveniently portable. It is supplied with a set of four secondary ignition leads, three BNC leads to connect to the oscilloscope, and an engine-block ground lead. It has a trigger output to help synchronise the scope to a known cylinder, and a switch to deal with negative-going wasted-spark signals. There's no software to install, and it works with PicoScope or any other automotive oscilloscope program.
Ignition parade waveforms from a wasted spark ignition system

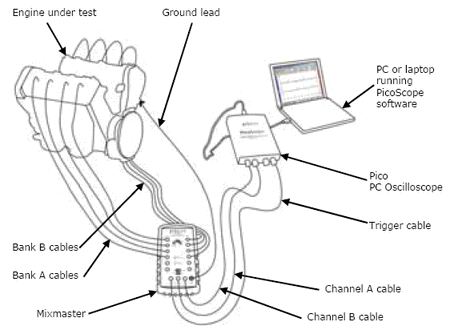

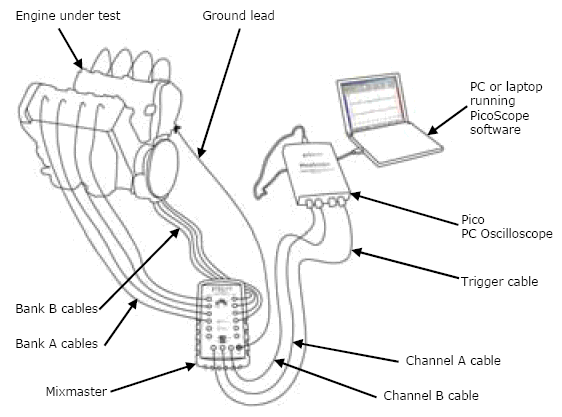

The MixMaster separates the power and spark onto separate channels.
MixMaster Contents

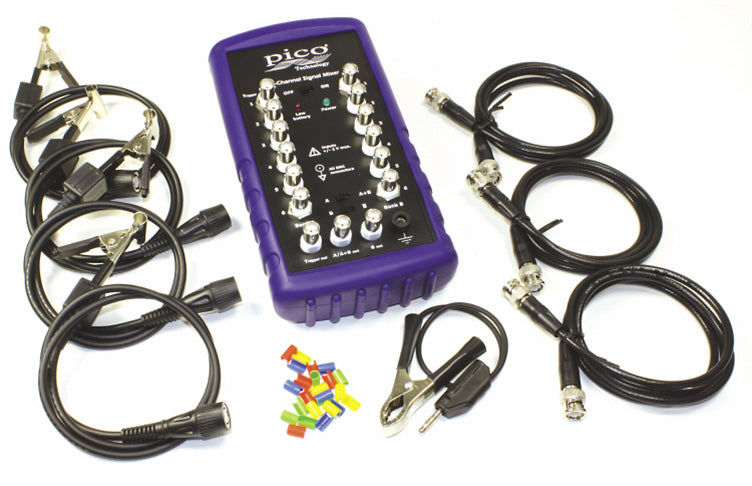

• Pico Mixmaster base unit with holster boot
• Ground Lead (14-1/2 inches long)
• 4 Secondary Pickup leads (35 inches long) *
• 3 BNC leads (4-ft long) to connect to scope module
• User Guide
* You can purchase extra sets of secondary pickup leads for use with up to 12
channels. Click here for set of 4 leads!
System Requirements
The Pico Mixmaster is designed to operate with any Pico Scope.
| Specifications | |
|---|---|
| Product | Mixmaster 12-Channel Ignition Signal Mixer |
| Analog bandwidth | 10 MHz |
| Bank A and B inputs | 12 x BNC female 91 kΩ resistance -2 V to +2 V (operating) -4 V to +4 V (absolute maximum) |
| Oscilloscope outputs Output level |
3 x BNC female -2 to +2 V |
| Environment limits: Operating temperature Operating humidity Storage temperature Storage humidity |
0 °C to 45 °C 5% to 80% RH, non-condensing -20 °C to +60 °C 5% to 95% RH, non-condensing |
| Power supply | 9 volt PP3 battery |
| Battery life | 48 hours approximately (power on, idle) |
| Dimensions | 221 x 115 x 58 mm (8.7 x 4.5 x 2.3 in) including rubber case |
