MCASE Fuse Adapter Amp Loop

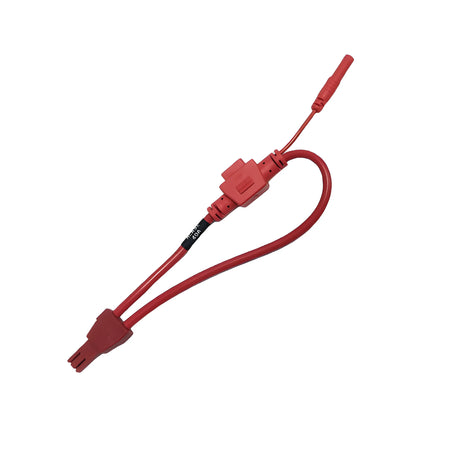

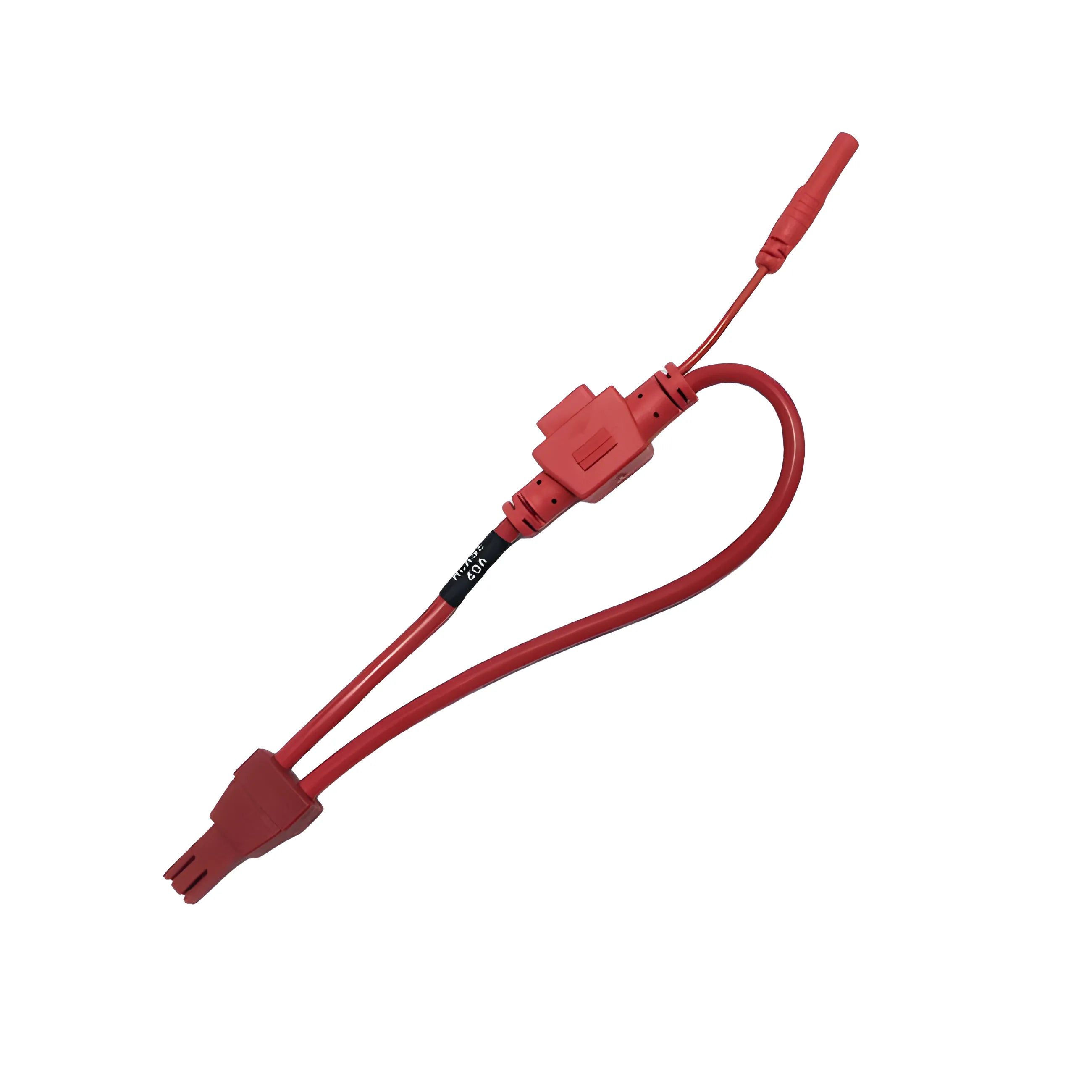

The AES Fuse Amp Loop with Voltage Tap makes it easy to capture current and voltage waveforms right at the fuse socket!

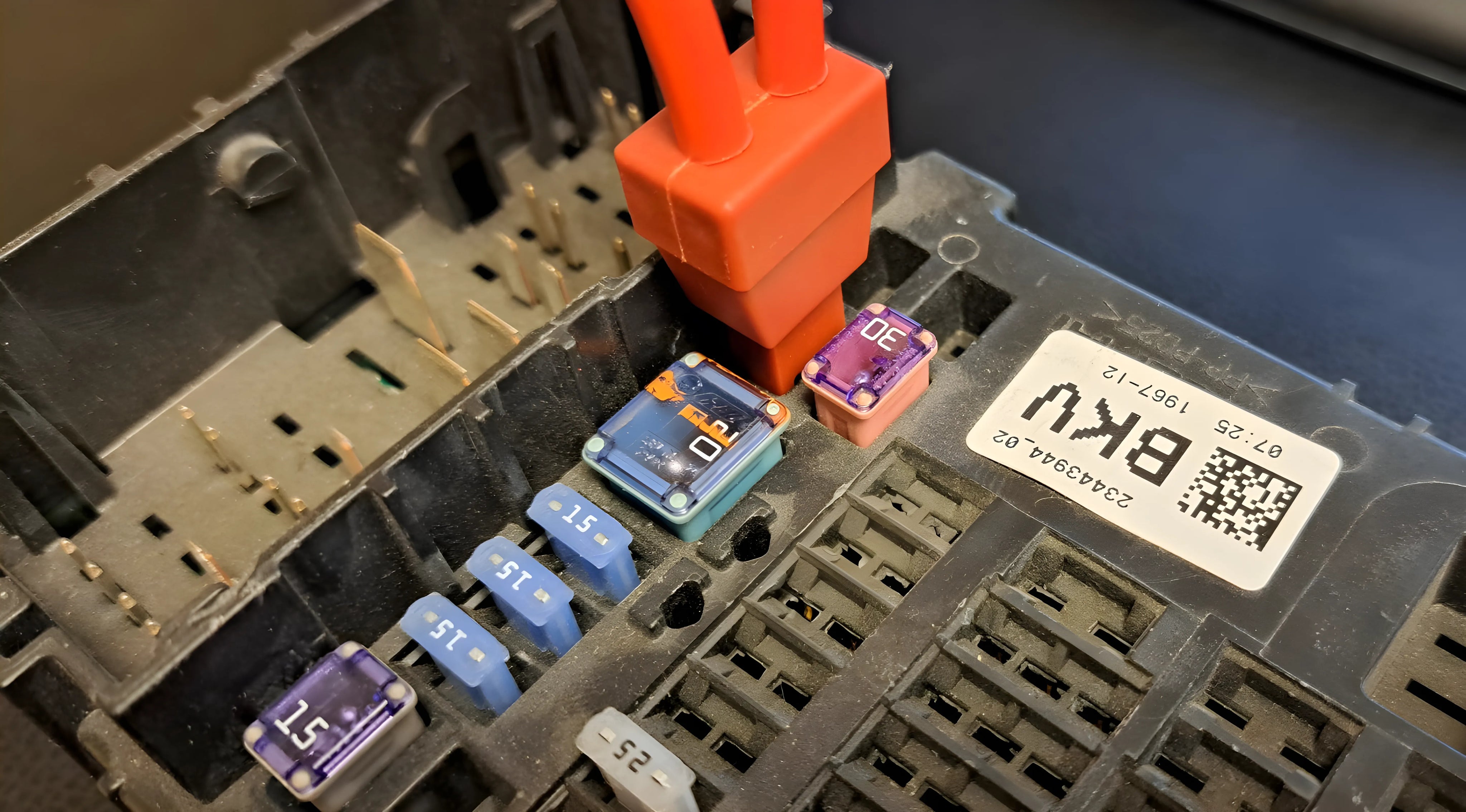

It fits slotted and unslotted MCASE, as well as Eaton FMS cartridge fuses

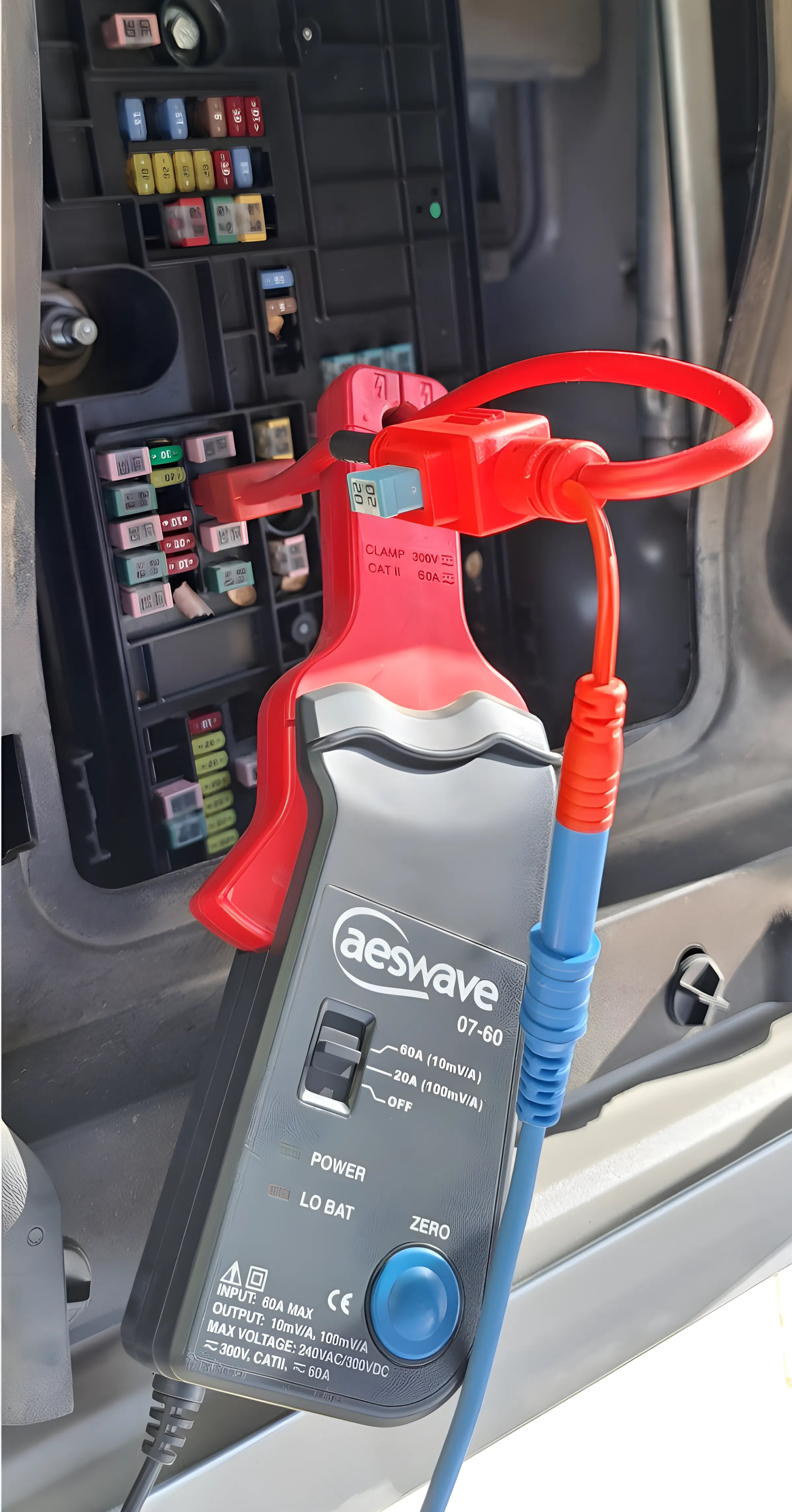

Use it with your favorite amp clamp, DMM or ideally, a lab scope.
Did you know that a current waveform at the fuse will potentially show the current load of all active components? By monitoring the voltage and the current together you can see how the current load might create a voltage drop in the circuit that feeds power to the fuse.
The AES Fuse Amp Loop with Voltage Tap takes testing at the fuse socket to the next level with unique features:
1. Long loop – An extra-long loop made from highly flexible wire makes it easy to reposition your amp probe to a safe location/position. For example, when working under the hood and wanting to go on a test drive.
2. Voltage Tap – The voltage tap is a short pig tail terminated to a 4mm banana socket which provides a secure test lead connection to monitor the voltage at the fuse terminal. Capturing voltage and current simultaneously can provide very important information for diagnostics!
3. Blown Fuse Indicator LED - know with a glance if the fuse is blown!
4. Reduced bulk – Reduced bulk at fuse blades for tight fits.
The AES MCASE Fuse Adapter Amp Loop with Voltage Tap makes it easy to capture current and voltage waveforms right at the fuse socket!
It fits slotted and unslotted MCASE, as well as Eaton FMS cartridge fuses. Use it with your favorite amp clamp, DMM, or ideally, a lab scope.
Did you know that a current waveform captured at the fuse will potentially show the current load of all active components protected by that fuse? By monitoring the voltage and the current together you can see how the current load might indicate a voltage drop in the circuit that is protected by the fuse.
The AES MCASE Fuse Adapter Amp Loop with Voltage Tap takes testing at the fuse socket to the next level with these unique features:
• Long Loop – An extra-long loop made from highly flexible wire makes it easy to reposition your amp probe to a safe location/position. For example, you may be working under the hood and need to go on a test drive.
• Voltage Tap – The voltage tap is a short pigtail terminated to a 4mm banana socket which provides a secure test lead connection to monitor the voltage at the fuse terminal. Capturing voltage and current simultaneously can provide very important information for diagnostics!
• Blown Fuse Indicator LED – Know at a glance if the fuse is blown!
• Reduced Bulk – Reduced bulk at fuse blades for tight fits.
• Fits slotted and unslotted MCASE, as well as Eaton FMS cartridge fuses.
