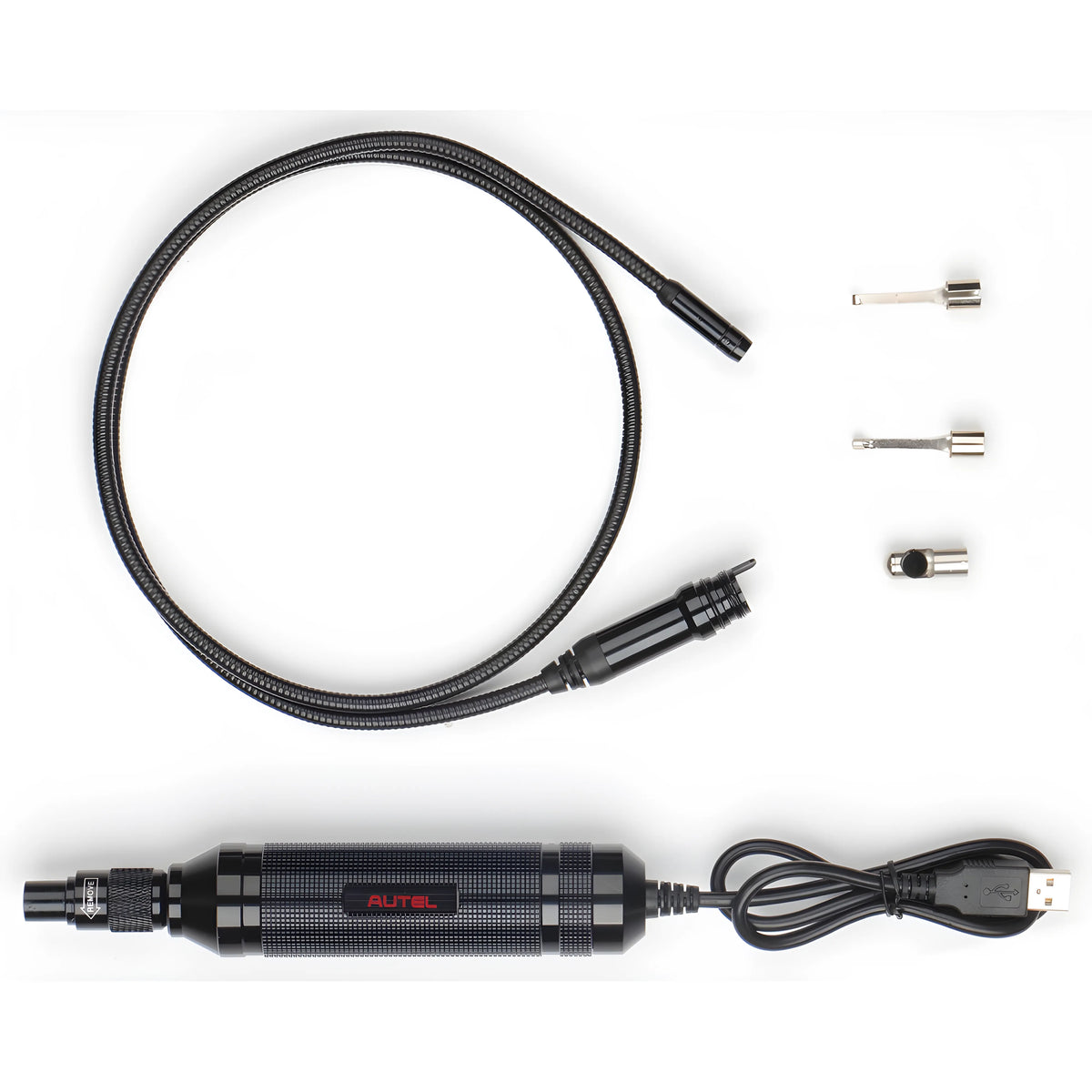

MaxiVideo MV108S(8.5mm Camera Head)
The MV108S digital inspection camera turns your Autel tablet into a video inspection scope, allowing you to examine difficult-to-reach areas hidden from sight. It is capable of recording digital still images and videos. Includes mirror, hook and mirror attachments.
The MV108S features a 2 mega-pixel high resolution (1920x1080) camera inside an 8.5mm diameter head.
The camera and the Super bright LED provide up-close and clear images when inspecting or searching for parts in confined and dark spaces.
A 1-meter waterproof USB cable connects the MV150S to an Autel tablet and use the MaxiVideo app to record video and capture stills.
The imager head is rated IP67:
6 = Dust tight; dust cannot ingress.
7= Secure when immersed in water up to 1m for 30 minutes.
Contents
- MV108s unit with Removable Imager Head Cable, Handgrip, USB Cable
- Magnet – picks up small metal objects, such as dropped rings or screws
- Mirror – to look around corners and see the unreachable areas
- Hook – unclogs obstacles and picks up wires in the pipes or confined areas
- 1-year warranty
| Specifications | |
|---|---|
| Imager Head Distance | 8.5m |
| Camera | 2 MP |
| Resolution | 1920 x 1080 |
| Depth of Field | 3cm to 8cm (1.18" to 3.15") |
| LED Beads | 8 pcs |
| Imager Head Cable Length | 1m (39.37") |
| Waterproof level (Imager Head) | IP67 |
| Operating Temperature | -10 °C to 70 °C (14 °F to 158 °F ) |
| Storage Temperature | -10 °C to 70 °C (14 °F to 158 °F ) |
