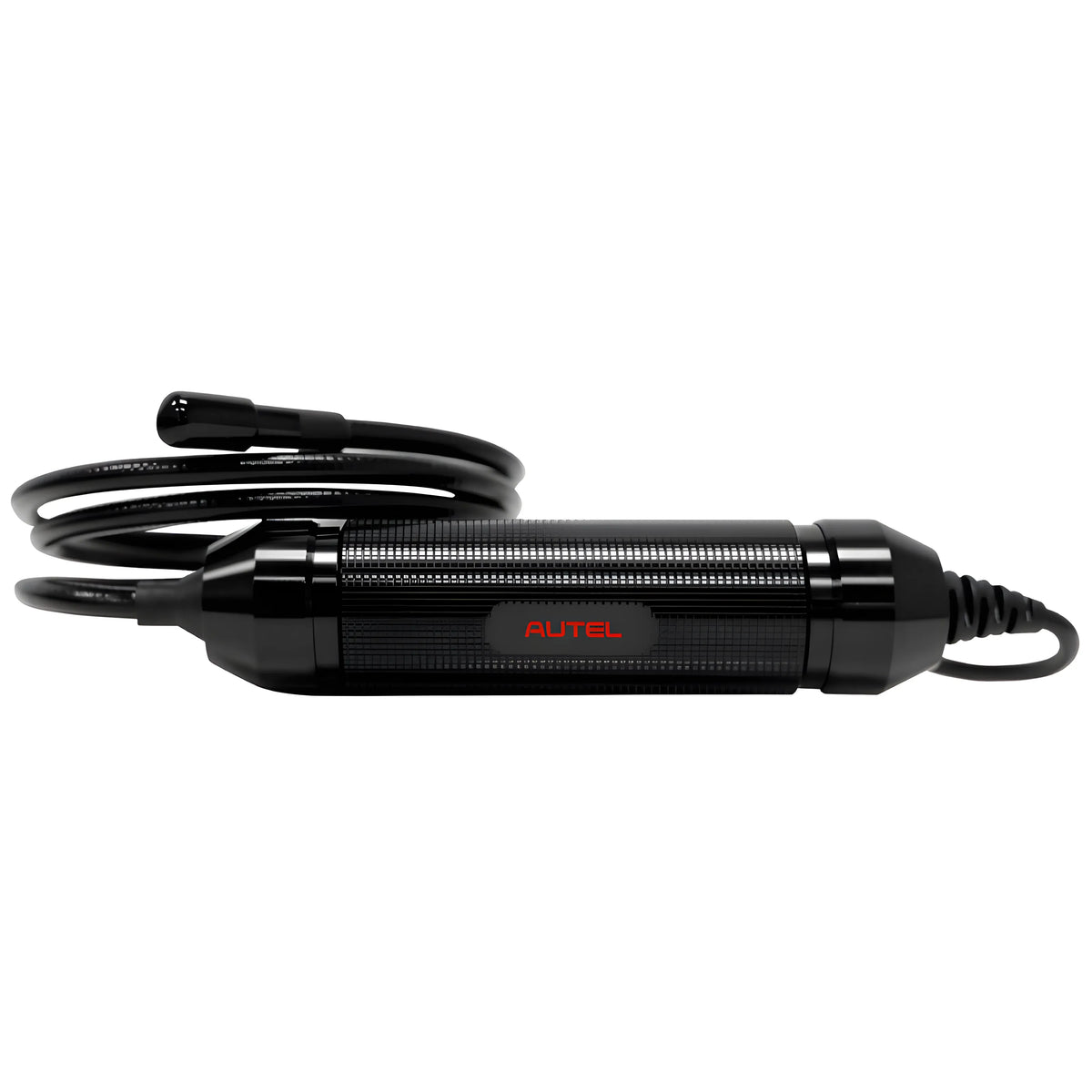

MaxiVideo MV105S(5.5mm Camera Head)
The MV105S digital inspection camera turns your Autel tablet into a video inspection scope, allowing you to examine difficult-to-reach areas hidden from sight. It is capable of recording digital still images and videos. Includes mirror attachment.
The MV105S features a 1 mega-pixel high resolution (1280x720) camera inside a 5.5mm diameter head.
Provides up-close and clear images of confined and dark spaces.
The 5.5mm small diameter camera head that fits into most spark plug holes.
The camera and the Super bright LED provide up-close and clear images when inspecting or searching for parts in confined and dark spaces.
A 1-meter waterproof USB cable connects the MV150S to an Autel tablet and use the MaxiVideo app to record video and capture stills.
The imager head is rated IP67:
6 = Dust tight; dust cannot ingress.
7= Secure when immersed in water up to 1m for 30 minutes.

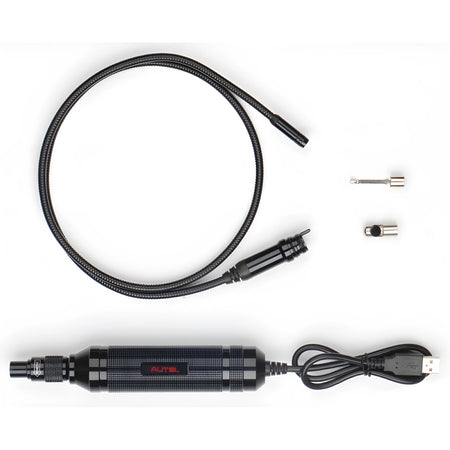

Contents
- MV105s unit with Removable Imager Head Cable, Handgrip, USB Cable
- Magnet – picks up small metal objects, such as dropped rings or screws
- Mirror – to look around corners and see the unreachable areas
- 1-year warranty
| Specifications | |
|---|---|
| Imager Head Distance | 8.5m |
| Camera | 2 MP |
| Resolution | 1920 x 1080 |
| Depth of Field | 3cm to 8cm (1.18" to 3.15") |
| LED Beads | 8 pcs |
| Imager Head Cable Length | 1m (39.37") |
| Waterproof level (Imager Head) | IP67 |
| Operating Temperature | -10 °C to 70 °C (14 °F to 158 °F ) |
| Storage Temperature | -10 °C to 70 °C (14 °F to 158 °F ) |
