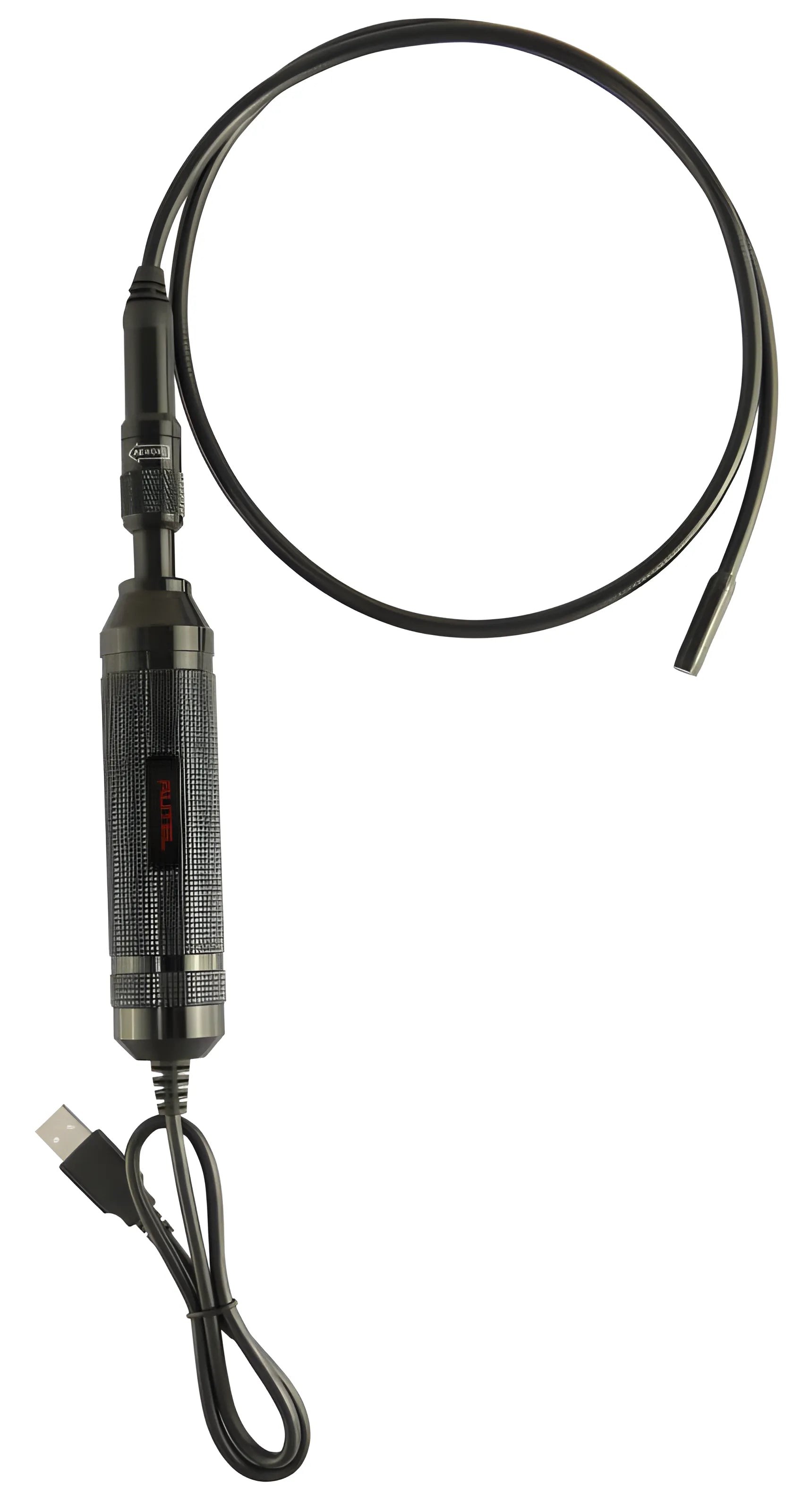

MaxiVideo MV105 (5.5mm Camera Head)
The MV105 digital inspection camera is designed to work with MaxiSys series products or even PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
The power of MaxiVideo inspection camera is directly supplied by the USB port, and no external power source is needed.
White LED lights to illuminate the inspection areas.
Small diameter allows it to be used in the tight spaces.

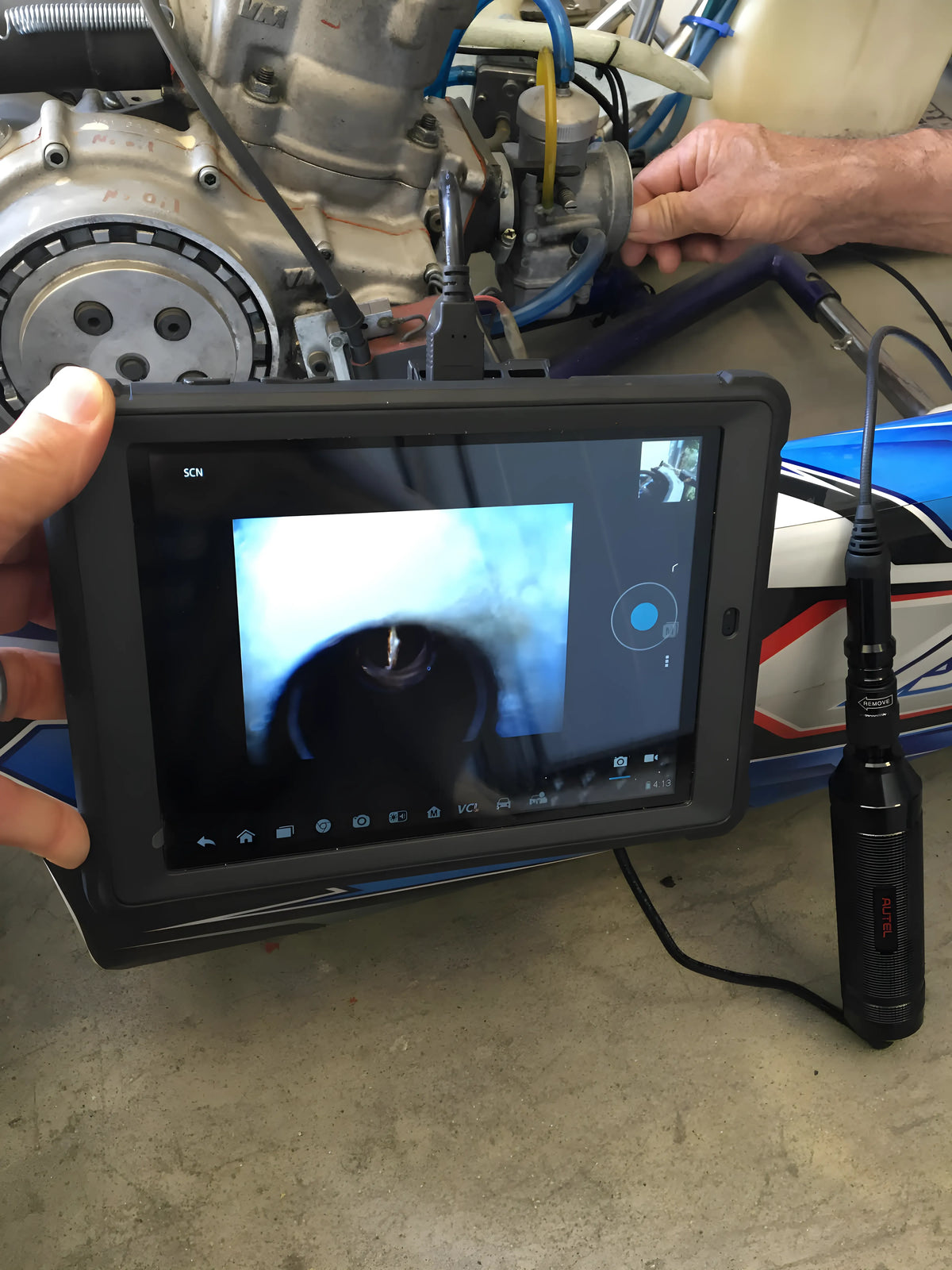

Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
Powerful and perfect for inspecting most spark plug holes.
Super bright LED and high resolution provide crystal clear images.
Contents
- MV105 unit with Removable Imager Head Cable, Handgrip, USB Cable
- Magnet – picks up small metal objects, such as dropped rings or screws
- Mirror – to look around corners and see the unreachable areas
| Specifications | |
|---|---|
| Optimal Viewing Distance | MV105：3/8’’ to 12’’ (0.95cm to 30cm) |
| Image Capture | MV105 (320 x 240) |
| Image Head | MV105: 5.5mm (0.22’’) MV108: 8.5mm (0.33’’) |
| Operating Temperature | Main Unit: 0°C to 50°C (32°F to 122°F) Cable: -10°C to 70°C (14°F to 158°F) |
| Storage Temperature | -20°C to 75°C (-4°F to 167°F) |
| Waterproof | Imager head and cable to 1m(3’) |
| Weight | 0.3kg with 8.5mm diameter imager head 0.2kg with 5.5mm diameter imager head |
| Compliance | FCC (EMC), CE (EMC and LVD) |
