Autel MaxiTPMS TS508WF Kit with Wi-Fi
Autel MaxiTPMS TS508WF – Wi-Fi Enabled TPMS Service Tool
Sensor Programming | TPMS Diagnostics | OBD Relearn | Wi-Fi Updates

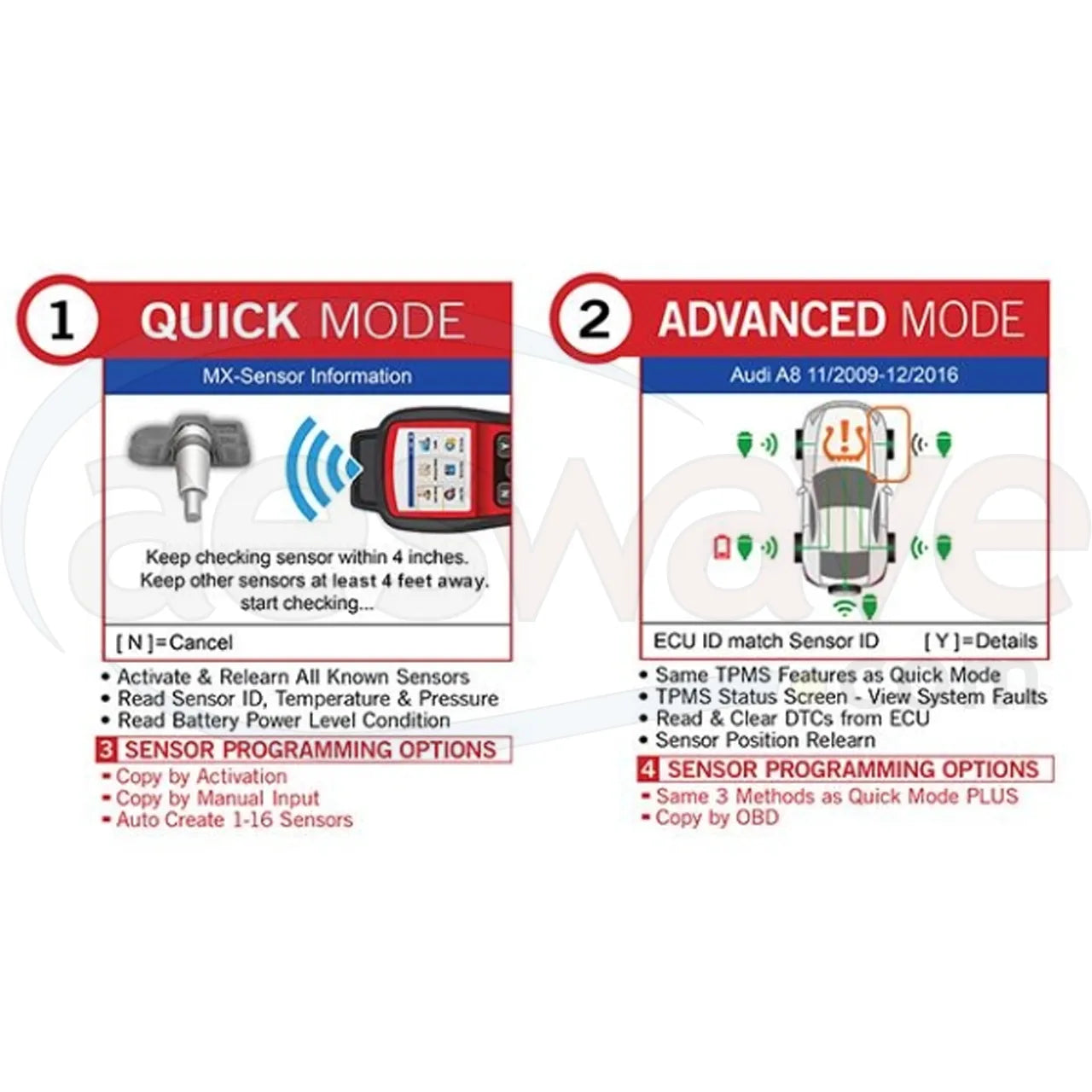

The TS508WF is a full-featured TPMS diagnostic and service tool with support for all known OEM sensors and Autel MX-Sensors. Designed for speed and simplicity, it offers Quick Mode for rapid service and Advanced Mode for complete diagnostics.
With built-in Wi-Fi, the TS508WF makes it easier than ever to stay updated with the latest vehicle coverage, no PC required.
PROGRAM AUTEL MX-SENSOR: TS508WF can program AUTEL MX-Sensors with three programming options:
- Copy By Activation
- Copy By Manual Input
- Auto Create 1-16
- Copy By OBD
ON-TOOL RELEARN PROCEDURE: TS508WF provides on-tool relearn procedure for every TPMS equipped U.S., Asian and European vehicle. No need for relearn charts or Internet lookups.
COVERAGE and UPDATES: Free lifetime updates for life of the tool available after registration. Does this tool have the coverage you need? Search for specific TPMS information based on the market, make, model, and year of vehicle. Find all TPMS product information including sensor frequency, OEM Part No., and relearn procedure. Coverage details.

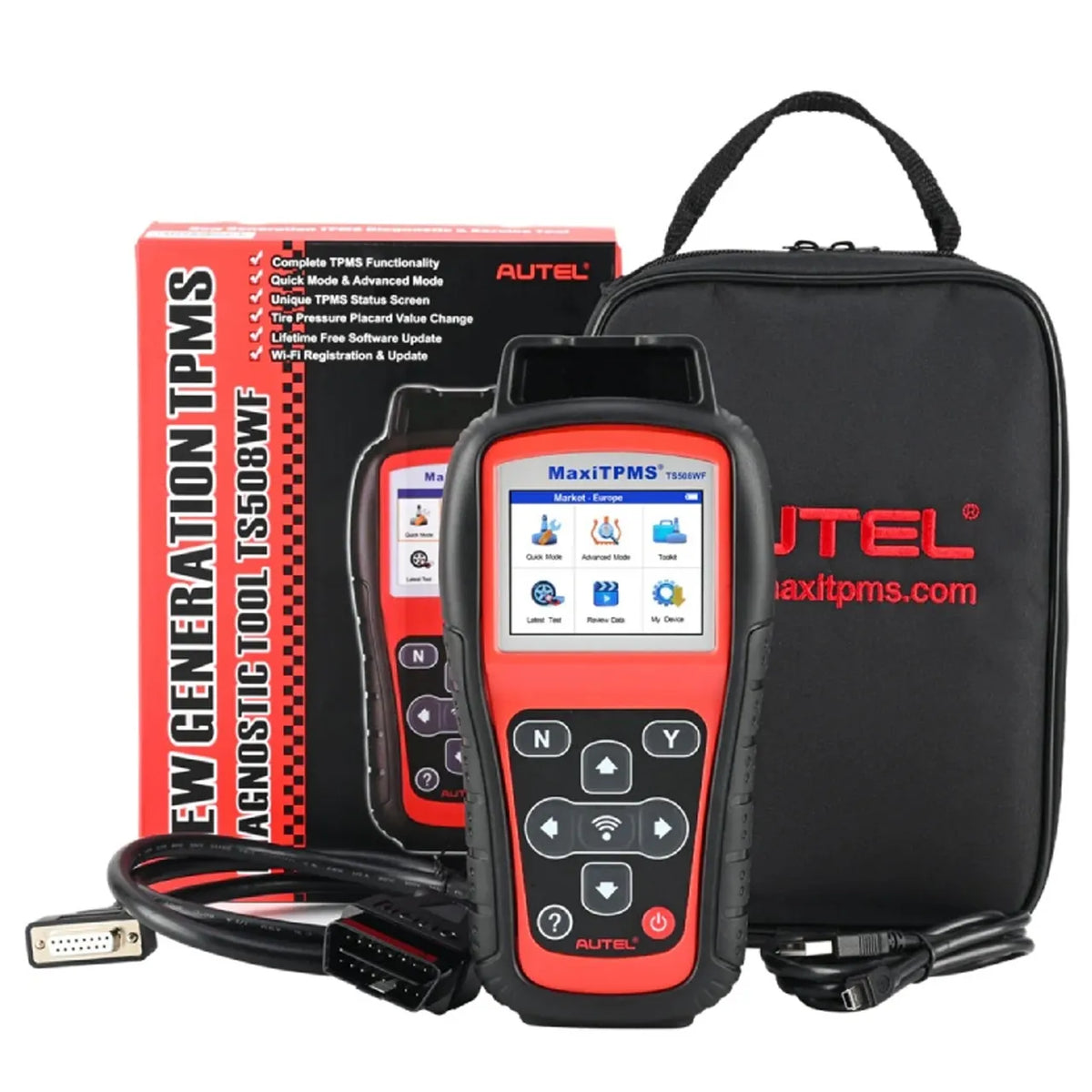

CONTENTS
- MaxiTPMS Wi-Fi TS508 unit
- USB Cable
- OBD II Cable
- Carry Pouch
- User Manual
- 1-year limited warranty
- Free lifetime updates for life of the tool
SPECIFICATIONS
- Display: TFT color display (320 x 240 dpi)
- Power: 3.7 V Li-polymer battery; 3200 mAh
- Operating Temp: 0°C to 50°C (32°F to 122°F)
- Storage Temp: -20°C to 70°C (-4°F to 158°F)
- Dimensions: 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
- Weight: 0.38 kg (0.84 lb.)
FEATURES and BENEFITS
• Activates ALL magnetic, frequency and tire deflation triggered sensors on most vehicles sold worldwide.
• Receives both 315MHz and 433MHz signals.
• Interprets data including sensor ID, tire pressure, temperature, battery condition, OE part number, and relearn information.
• Checks Remote Keyless Entry (Key FOB) for transmissions
• Provides visual and audible responses to confirm sensors are working properly.
• Accurate diagnosing result - a tool users can trust.
• Incredibly easy-to-use with intuitive navigation and step-by-step on-screen instructions.
• Pre-selection process offers faster activation and diagnostics.
• Programs both 315MHz and 433MHz MX-Sensors.
• Displays different sensor relearn procedures for different OEM sensors.
• OEM sensor information display based on vehicle Make/Model/Year.
• Displays OBD locations for test vehicles.
• 2.8" 320x240 TFT color display.
• Proper LF signal to prevent being fooled by other RF signals.
• Built-in rechargeable 3200 mA Li-polymer battery.
• Free upgrade via USB port.
• Multilingual support (English, Spanish, French).
• Saves up to 5 TPMS sensor records for future data review.
• Automatic power-off to preserve battery life.
• Modular design allows for future capability expansions.
• Ergonomic design features strong housing and protective rubber boot.
