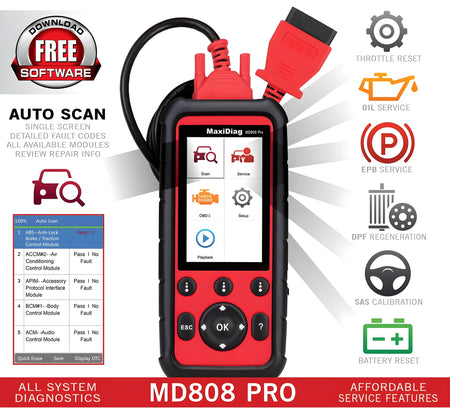

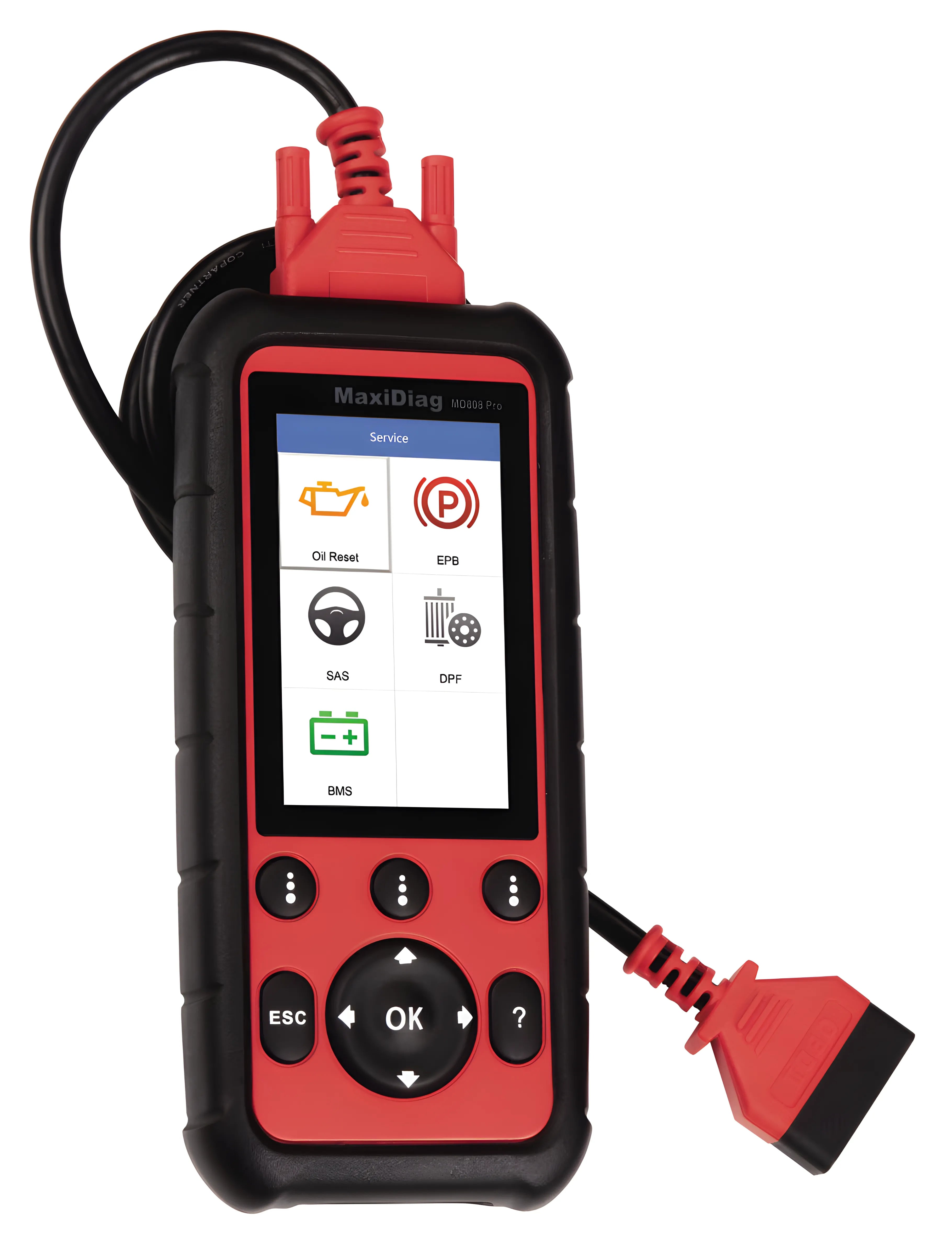

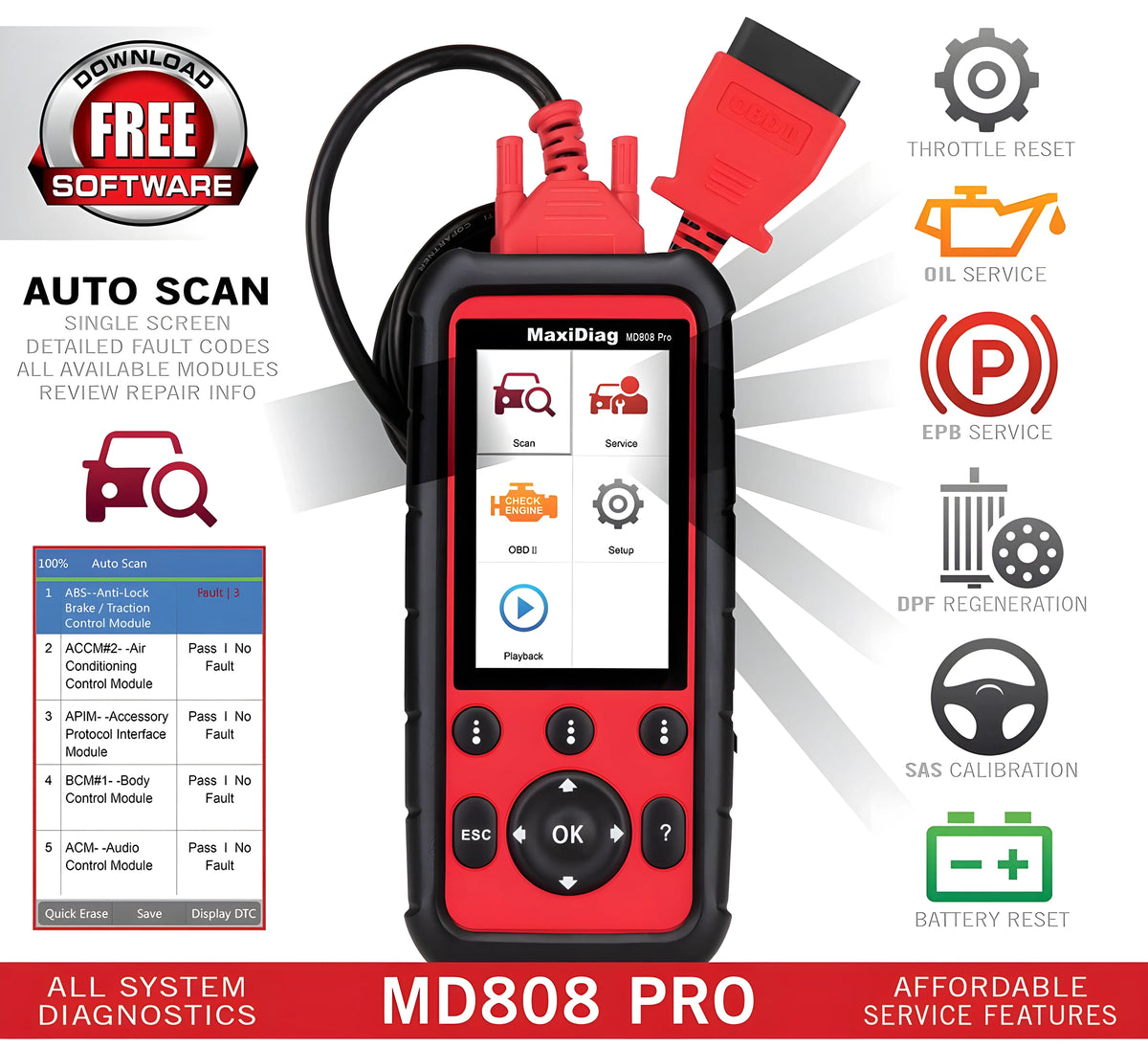

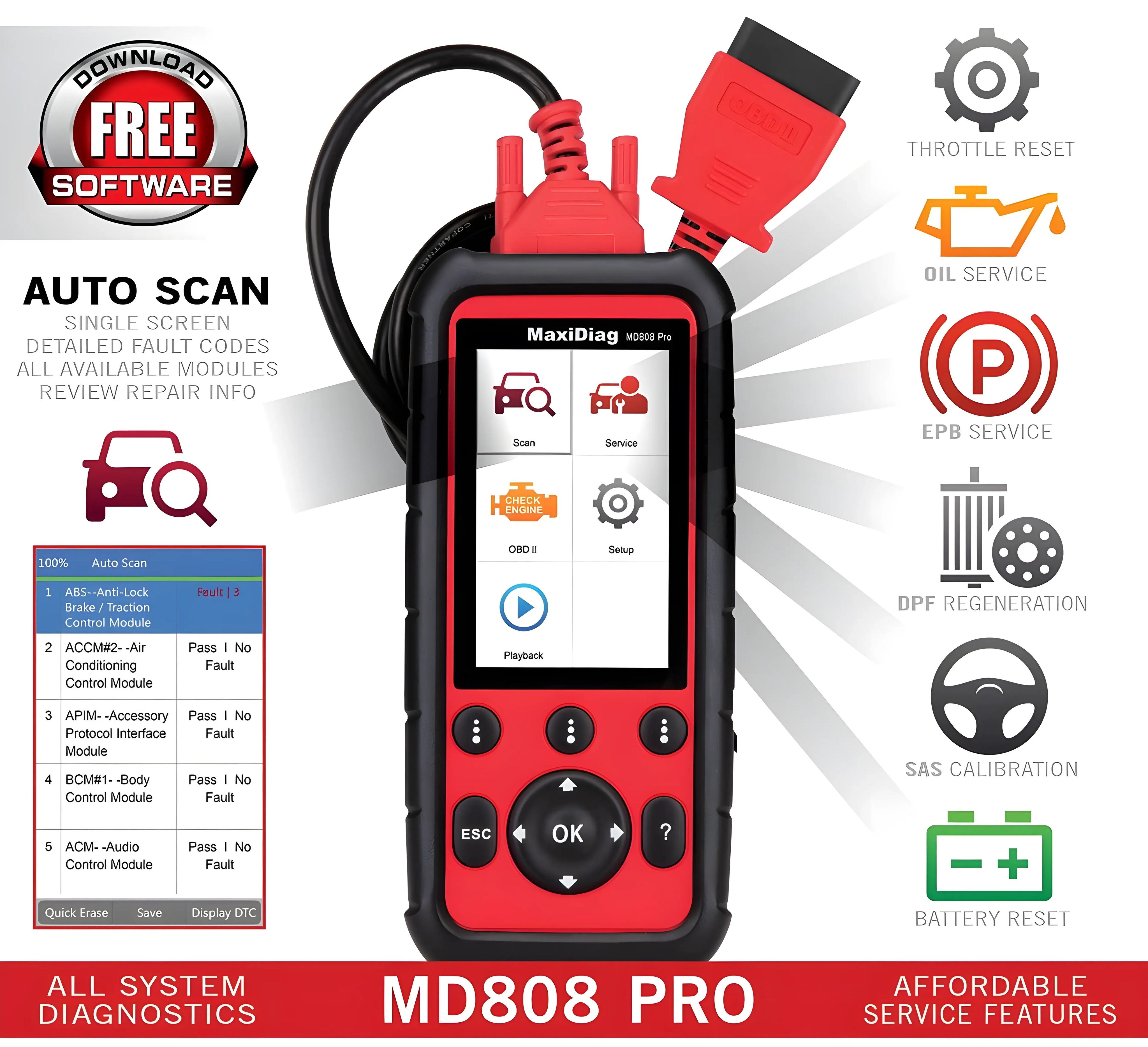

MaxiDiag MD808 Pro
The MaxiDiag MD808 Pro is offers oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle sensor relearn and diesel particulate filter regeneration functions, MD808 Pro can access ALL available modules for the best diagnosis operations. All that enclosed in a 4-inch hand-held device.
The Autel MD808 Pro has the features and functions of the older MD802 and the MaxiCheck Pro combined and offers more service functions than the either of the older units.
The MD808 Pro is cabled to the vehicle.
Systems
• POWERTRAIN SYSTEM - Read / Test / Clear trouble codes all modules
• BODY SYSTEM - Read / Test / Clear trouble codes all modules
• CHASSIS SYSTEM - Read / Test / Clear trouble codes all modules
• INFO & COMMUNICATION - Read / Test / Clear trouble codes all modules
• Auto VIN Detection
• Auto Scan all major systems
• Live Data to test individual systems
• Communicate with door modules, body controllers, electronic modules
• Support all OBDII protocols and 10 test modes including Freeze Frame, Enhanced Mode 6, Vehicle Info, I/M Readiness, On-Board Monitor and Component Tests
• Graph, record and playback freeze frame data
Bi-Directionals
The MD808 Pro does not offer any bi-directional controls, for this capability consider the ms906BT.
Service
The MaxiDiag MD808 Pro provides the following functions for most modern vehicles:
Oil Reset Service
EPB Service (Electronic Parking Brake)
BMS (Battery Management System)
SAS Service (Steering Angle Sensor)
DPF Service (Diesel Particulate Filter)
Page 21 of the User's Manual (PDF page 26) has more details about each service function.

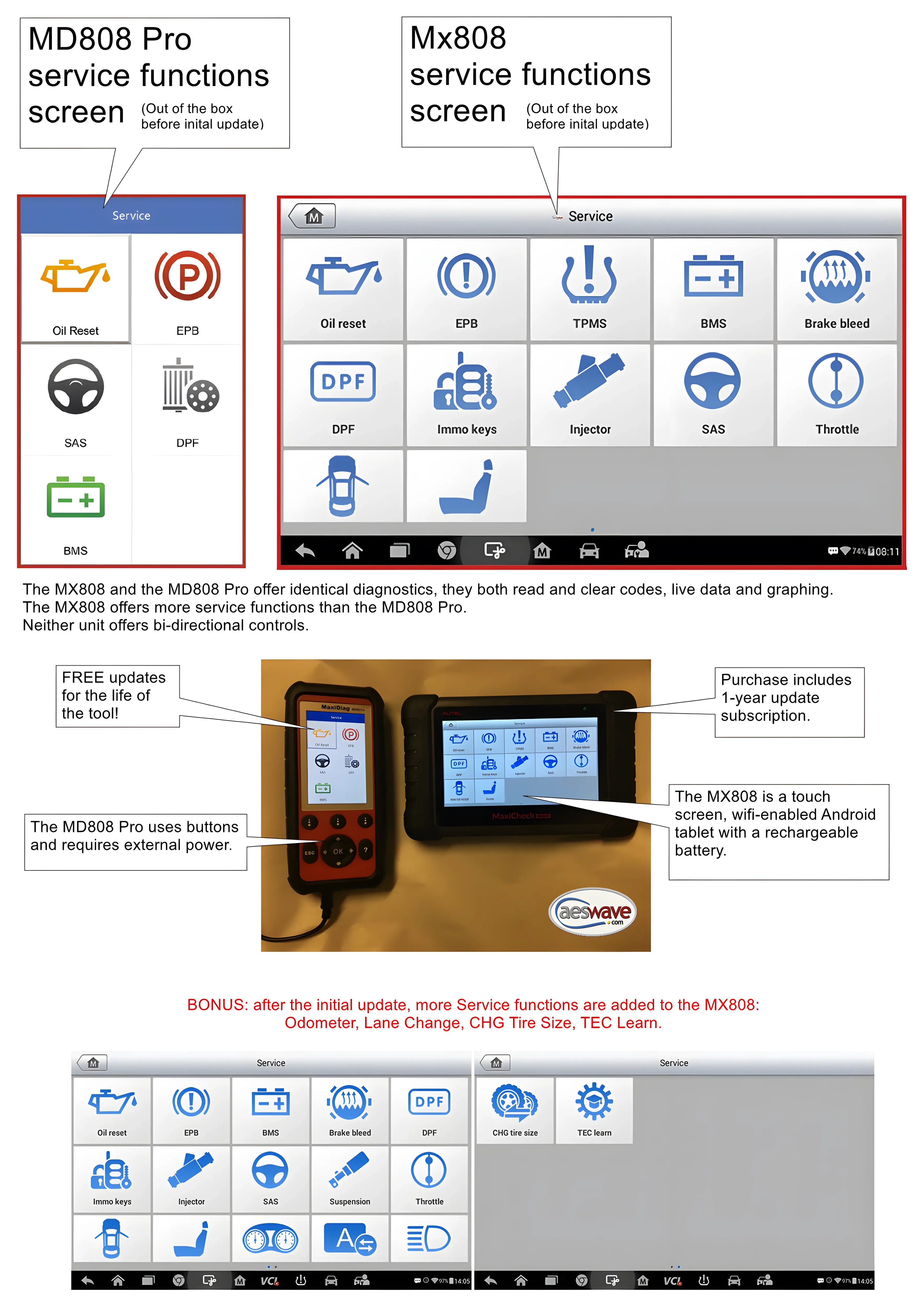

The MaxiDiag MX808 has additional service functions.
Will it work with my car?
It might. Search through the coverage details. Coverage is best on pre-2014, sparse on 2014-newer (as of Q3 2018).
- Select the tool, such as, MD808 Pro, and click the search button.
Or
- Select the tool, enter a Mfg and then click the search button.
Package Contents:
· MaxiCheck md808 Pro base unit
· Main cable
· Hard carry case
· Quick Reference Guide
· Mini USB cable
· Free updates for the life of the tool
· User's Manual
Specifications
| Specifications | |
|---|---|
| Processor | ARM® Thumb® Processor (400 MHz) |
| Memory | 32MB, 166 MHz |
| Display | 4.0 inch LCD with 800x480 resolution |
| Connectivity | Mini USB 2.0 Micro SD card (supports up to 16GB) |
| Sensors | Ambient light sensor for brightness auto changing |
| Power Consumption | 1.7 W |
| Operating Temp. | -10 to 60°C(14 to 140°F) |
| Storage Temp. | -20 to 70°C (-4 to 158°F) |
| Operating Humidity | 5% - 95% non-condensing |
| Dimensions (W x H x D) | 202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”) |
| Net Weight | 313 g (0.69 lb.) |
| Supported Automotive Protocols | ISO9141-2 |
| ISO14230-2 | |
| ISO15765 | |
| K/L-Line | |
| Flashing Code | |
| SAE-J1850 VPW | |
| SAE-J1850 PWM | |
| ISO11898(Highspeed, Middlespeed, Lowspeed, Singlewire CAN, | |
| fault-tolerant CAN) | |
| SAE J2610 | |
| GM UART | |
| UART Echo Byte Protocol | |
| Honda Diag-H Protocol | |
| TP2.0 | |
| TP1.6 | |
