LOADpro with Back Probe Kit
The LOADpro is now available with tip adapters and an assortment of back probes and clips.
The adapter tips thread onto the probe tips of the LOADpro unit and the ground probe, and are equipped with standard 4mm banana plugs which are compatible w/most test leads and test probes/clips/gators.

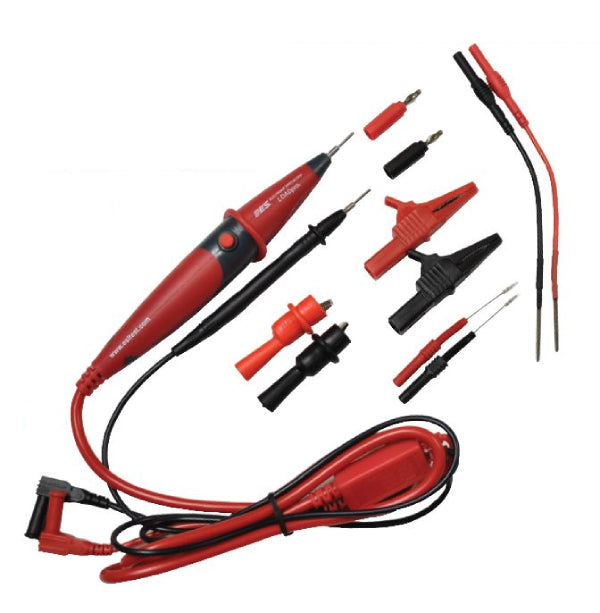

The 187 kit includes:
- LOADpro unit with Test Leads
- Tip Adapters (Threads to 4mm banana plug)
- Flexible Silicon Back Probes
- Spoon Probe Curved Back Probes
- Large Crocodile Clips
- Push-on Alligator Clips
LOADpro® does voltage drops easier and faster….find wiring problems faster, and it works with your existing digital multimeter.
On a 12 Volt system, pressing the switch applies a load of approximately .5 Amps across the circuit. This simple test finds problems in corroded wires/connections and shorts to ground.
Tip Adapters can be bought seperately here.
All the small accessories minus the push-on Alligator Clips can also be bought seperately here.
How much load does the LoadPro output?
The LoadPro outputs a 40mA/Volt load. The load applied varies with the amount of voltage:
On a 1 volt circuit, the load is .04 A.
On a 6 volt circuit, the load is .24 A.
On a 12 volt circuit, the load is .48 A.
On a 15 volt circuit, the load is .60 A.

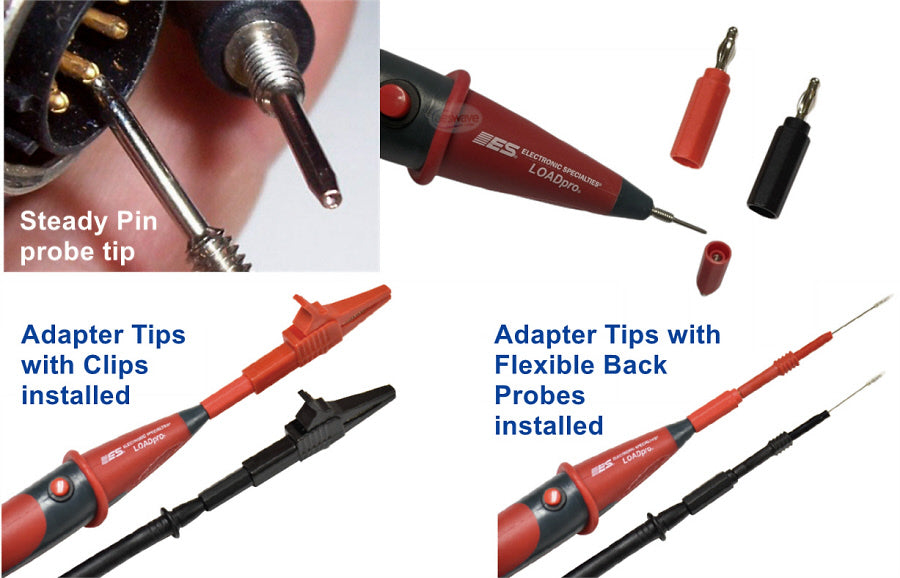

LOADpro features SteadyPin probe tips.
SteadyPin Probes
Instead of a pointed probe, SteadyPin tips have a small recess at the tip that allows the probe to sit firmly on a male ECM or connector pin. Traditional pointed probes fail to give an effective connection and creates difficulties in completing manufacturer specific voltmeter tests.
