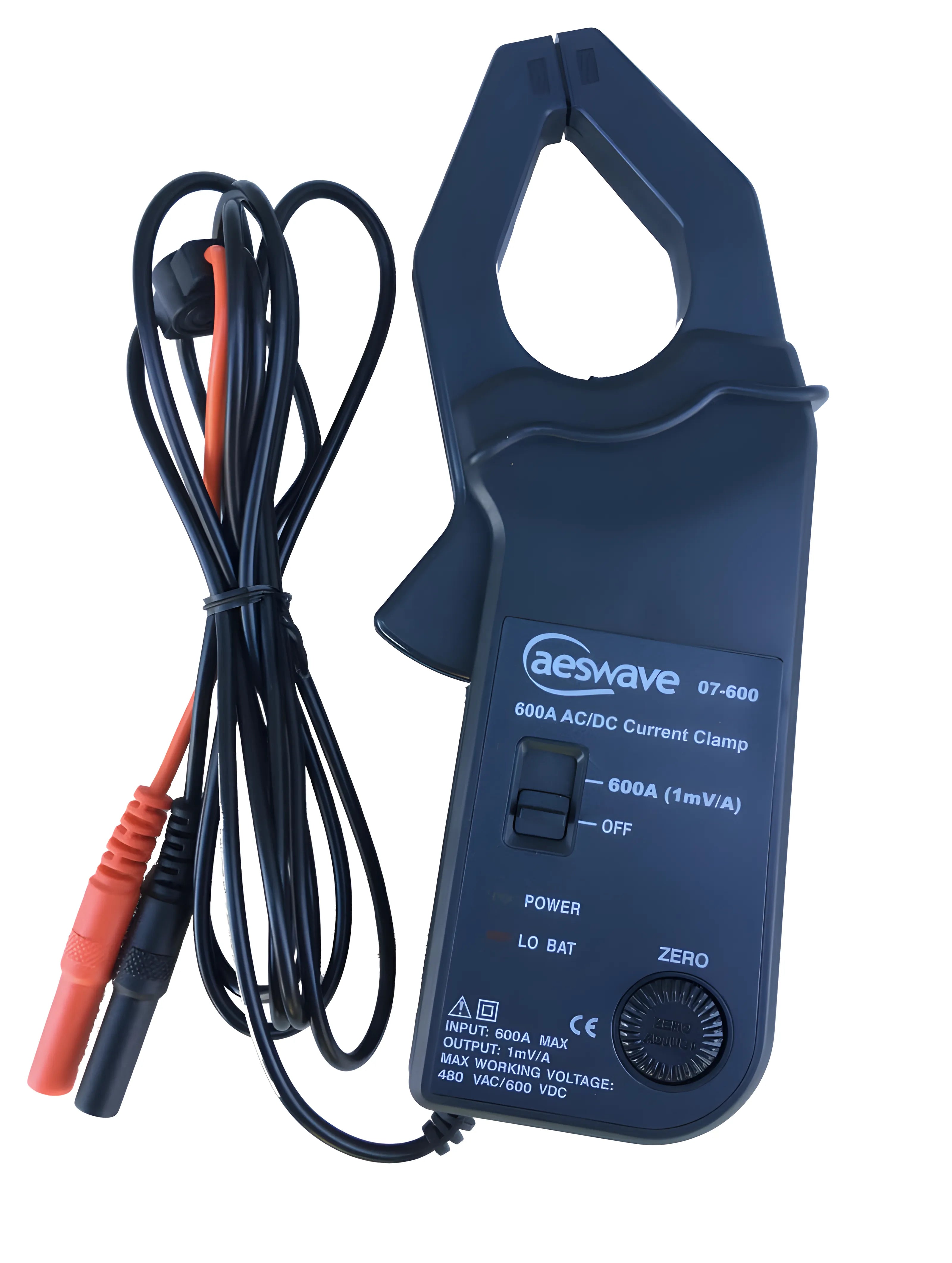

High Amp Probe with Banana Plugs
Low priced, high current probe with large jaw. Rated 1 to 600 Amps.
Features a zero-wheel and an output calibration of 1mV/Amp. This probe is ideal for testing starter and charging systems, relative compression testing, etc.
This high amp current probe can be used with scopes and meters such as the Snap-on Zeues, Verus, VantagePro, and Modis, UEI scopes, graphing meter, and meters. In essence it can be used with any scope/meter that displays a voltage in digital or waveform format and has inputs for 4mm banana plugs.
Frequency response: 50-400Hz.
1-year warranty.
Warning
To connect this amp probe to scopes with BNC inputs you will need an adapter such as the AES# 08-88-m.
Specifications
Test Lead: 6-feet long, terminates to shrouded Banana Plugs 4mm
1-year warranty.
