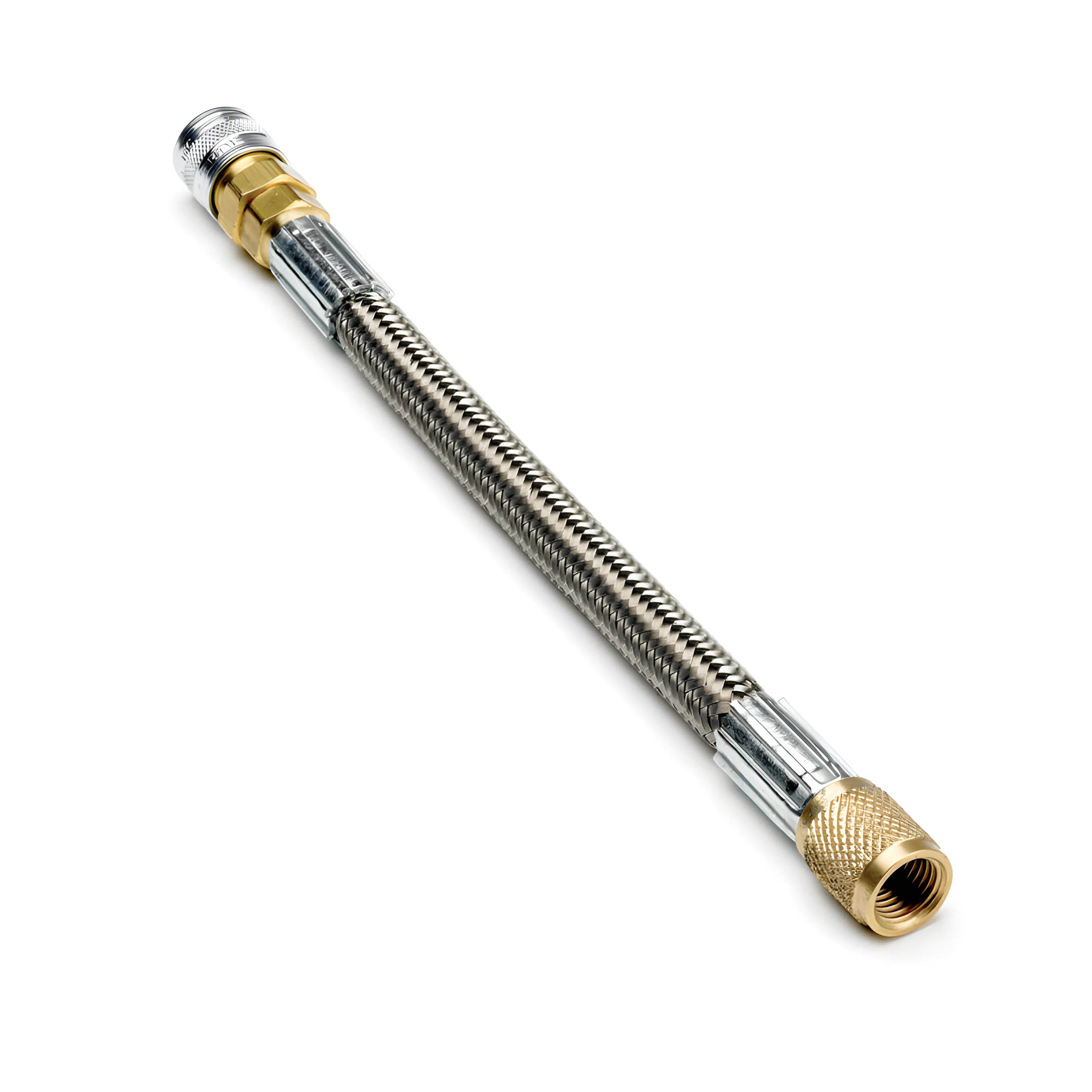

Pico TA083 – Fuel Pressure Test Hose (Large Schrader Valve)

For WPS500X | 500 PSI Rated | SAE 30R9 | Ethanol Compatible

The Pico TA083 Fuel Pressure Test Hose is purpose-built for use with the Pico WPS500X pressure transducer, offering safe and accurate fuel pressure measurements on systems equipped with a standard large Schrader valve.

Engineered with Teflon tubing, a steel-braided outer layer, and a high-pressure Foster quick-connect fitting, this hose delivers durable performance under harsh engine bay conditions. It’s ideal for both gasoline and ethanol blend fuel systems.

Specifications

• Max Pressure: 500 PSI / 34.47 BAR

• Max Temperature: 115°C / 239°F

• Hose Type: SAE 30R9

• Construction: Teflon tube + steel braid

• Fuel Compatibility: Gasoline, ethanol, ethanol blends

• Connections: Foster male (to WPS500X) → Large Schrader valve
