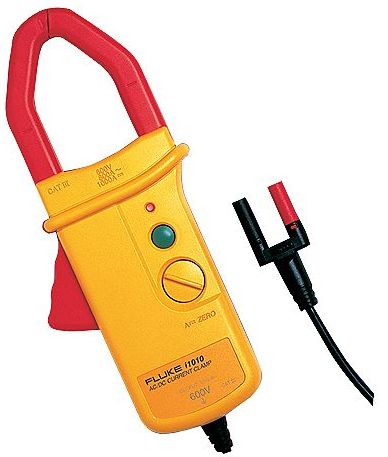

Fluke i1010 Current Probe

(AES# F-i1010)

Battery-powered dual Hall-effect clamp-on probe measures ac current to 600A, dc current to 1000A. Thumbwheel ZERO control compensates for residual core magnetism, improving the range of dc measurements down to 1A.

Output is 1mV per current dc or ac. Maximum conductor size: one 1.18" (30 mm) or two each 0.98" (25 mm). Accuracy: ?(2% of reading +1A), 1A to 100A, dc to 62 Hz; ?3%, 100A to 700A, dc and 48 Hz to 62 Hz; ?5%, 700A to 1000A dc only. Useable to 440 Hz.

NOTE:
This current probe can be used with any lab scope, graphing meter or DVOM although an adapter may be required to connect the current probe to the unit. If your scope/meter has BNC-inputs, use the AES Flexible Adapter (AES# 08-88-m) to connect this probe to your scope.
