Fluke FEV100 Electric Vehicle Charging Station EVSE Test Adapter w/Type 1 Connector and Cable

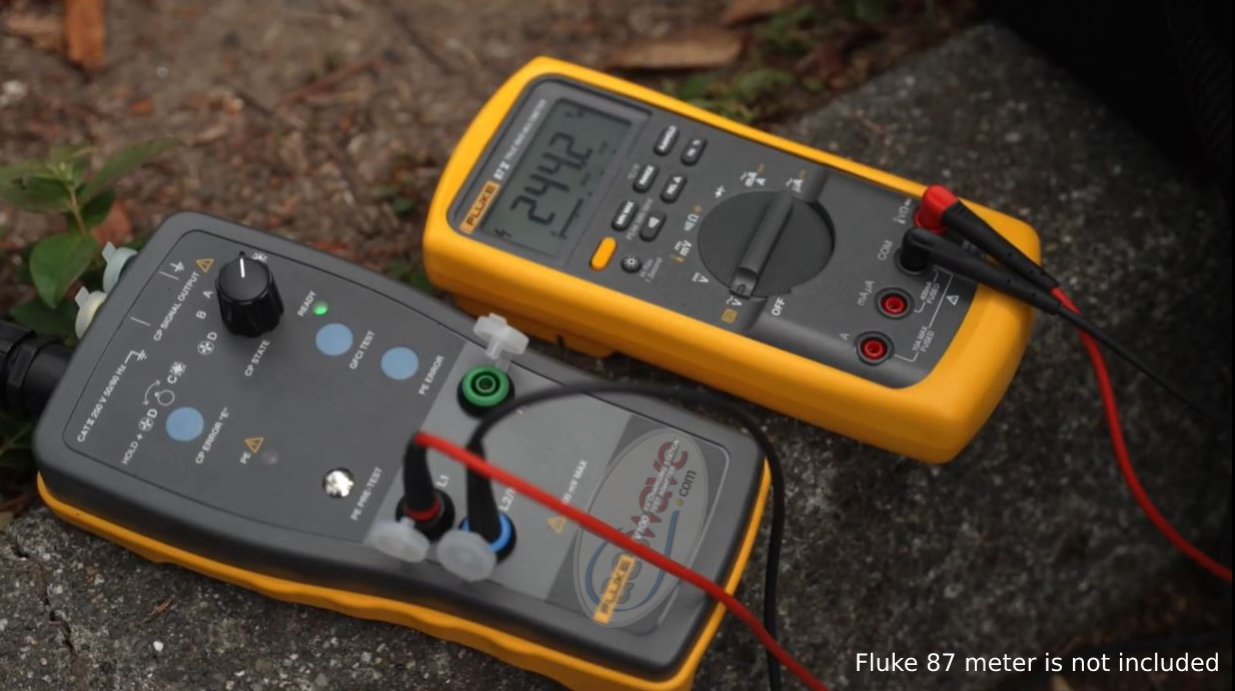

The Fluke FEV100 tester allows you to simulate having a vehicle plugged into a charging station to safely test a SAE J1772 (Type 1), Level 1 or Level 2 electric vehicle ac charging station (EVSEs). This test adapter allows you to conduct tests in combination with appropriate test instruments such as a digital multimeter or oscilloscope. Use the FEV100 to verify an EVSE is working properly after install and during periodic maintenance, or troubleshoot an EVSE if it is not delivering the appropriate charge.
Electrical safety
EVSE charging cables may become damaged over the course of use, increasing electric shock risks to users. Stay protected from and check risk of electric shock with the GFCI trip test. This function verifies the breaker of the EVSE is connected by detecting ground faults. Additionally, the PE grounding protection pre-test verifies that there is no presence of dangerous voltage at the ground terminal.
Simplicity and convenience
Perform a variety of tests including ground fault checks, insulation of wires, measuring voltage and duty cycle to see max current available for charging all in one adapter that safely integrates with the Fluke portfolio of test and measurement tools. There is no need to bring an electric vehicle onsite for EVSE troubleshooting: the adapter acts as an electric vehicle when connected to an EVSE for easy performance and maintenance testing.
Available measurements
• Grounding system Pre-Test (verifies that there is no presence of dangerous voltage at the Ground terminal)
• Phase indicator (presence of voltage)

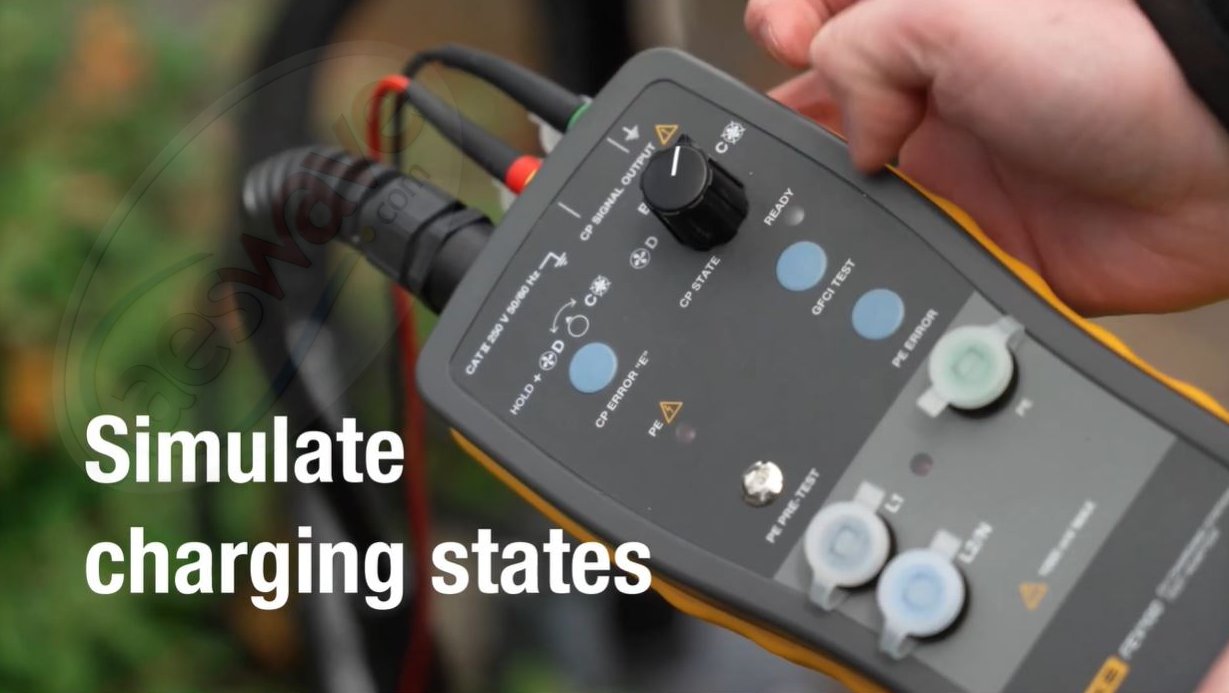

• CP State simulation (A, B, C, D) for Control Pilot

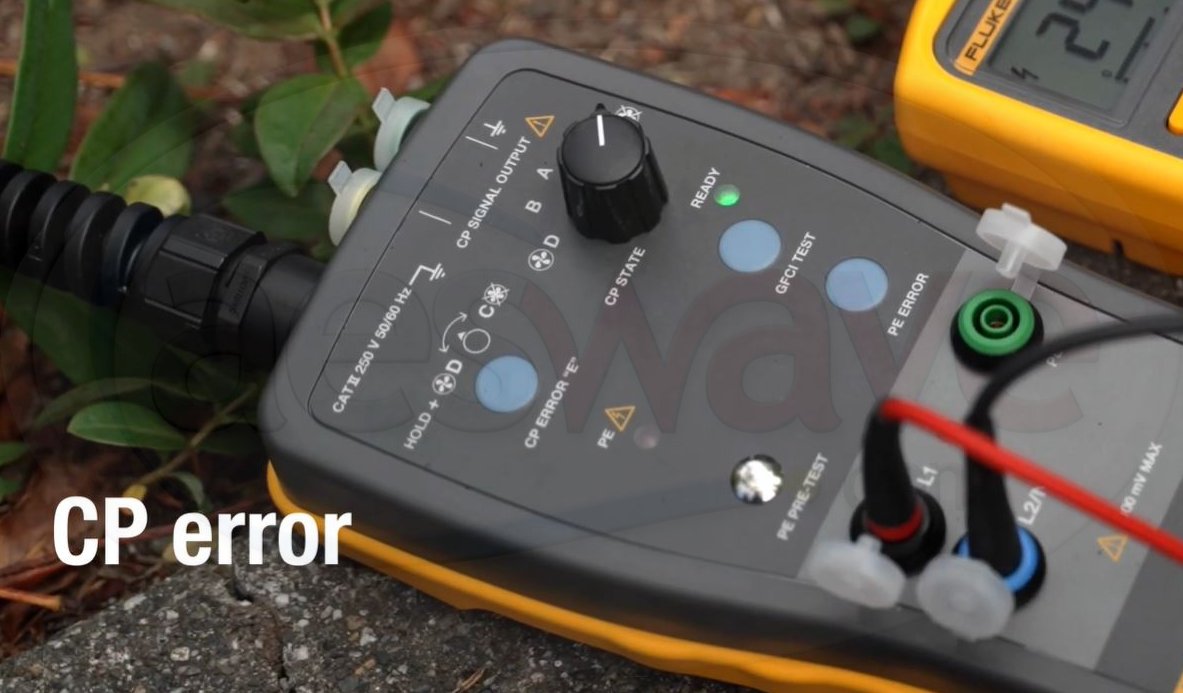

• CP Error “E” simulation (Control Pilot CP signal short-circuited to PE)

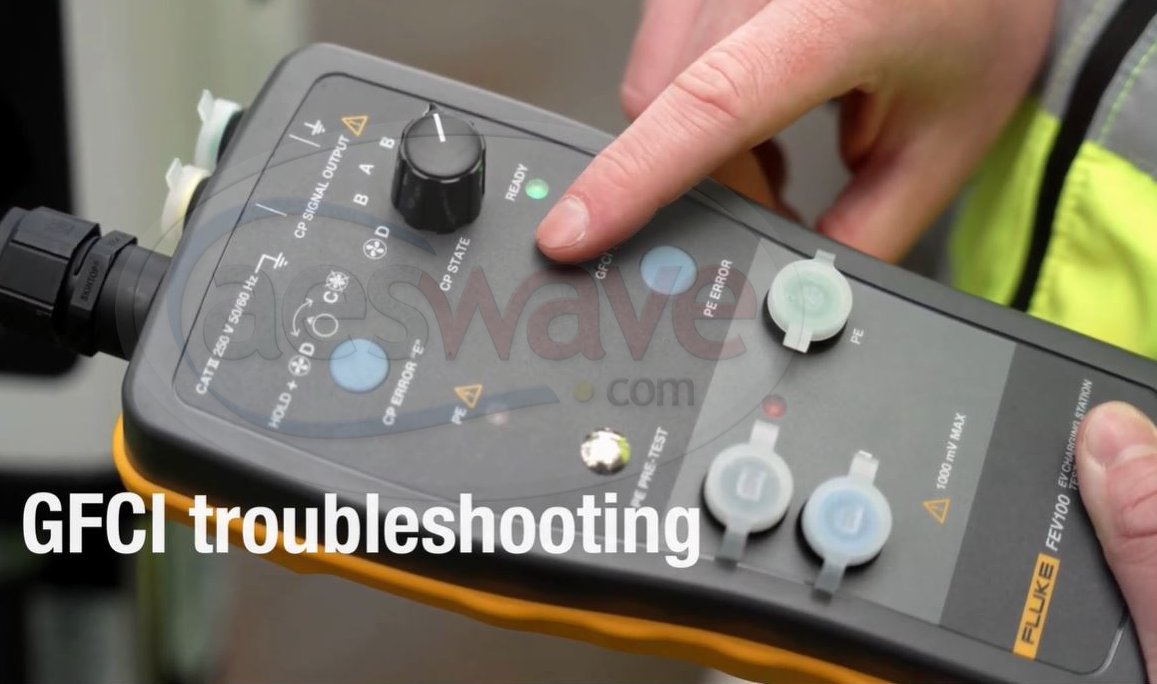

• GFCI ground fault circuit interrupter test
• Fault Voltage test in normal conditions (no GFCI test current) and during GFCI test
• PE Error (Earth Fault) simulation (interruption of PE conductor)
• Measurements on live conductors (L1, L2/N) and on PE ground conductor
• Test of Control Pilot CP signal

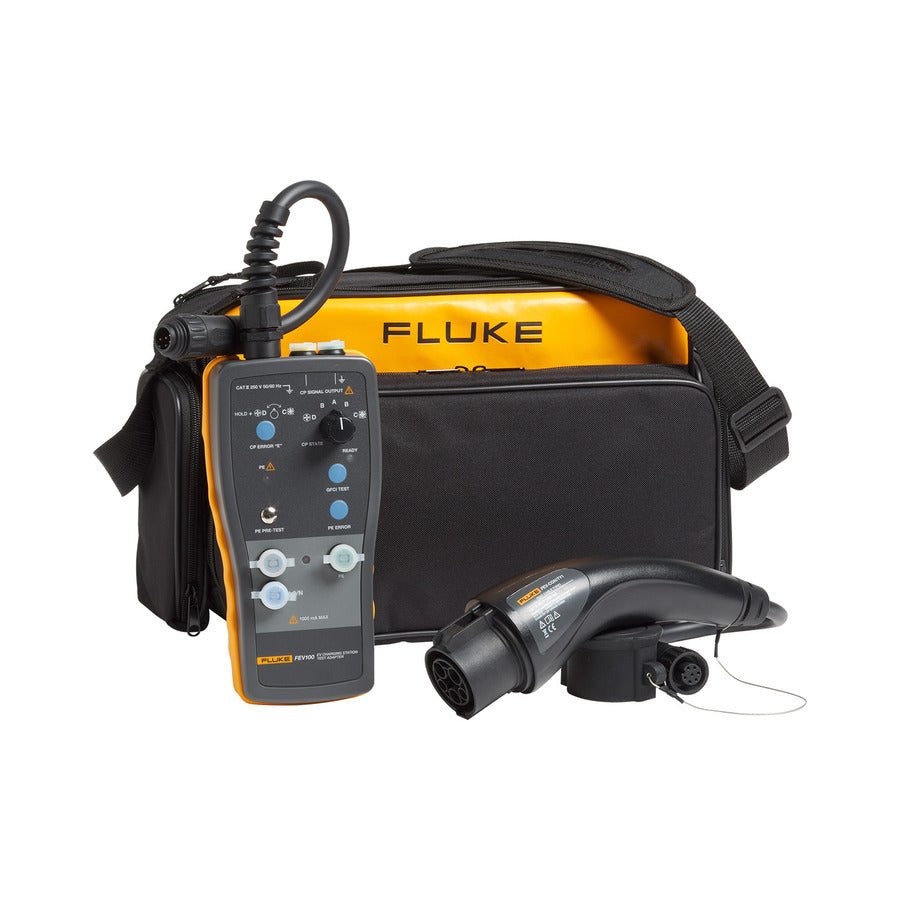

Included with the FEV100/TY1
• Fluke FEV100/BASIC Test Adapter
• Fluke FEV-CON/TY1 Type 1 Connector & Cable
• Soft Carrying Case
• User Manual
• 3-year warranty
A connector/cable for Tesla "Wall Connectors" is sold separately.
Introducing the FEV100 EVSE Test Adapter
Testing an EVSE with the Fluke FEV100 Adapter
- Performing a grounding protection pre-test with the FEV100
- Verify an EVSE Charging Voltage
- How to Test GFCI Protection on an EVSE (edited)
