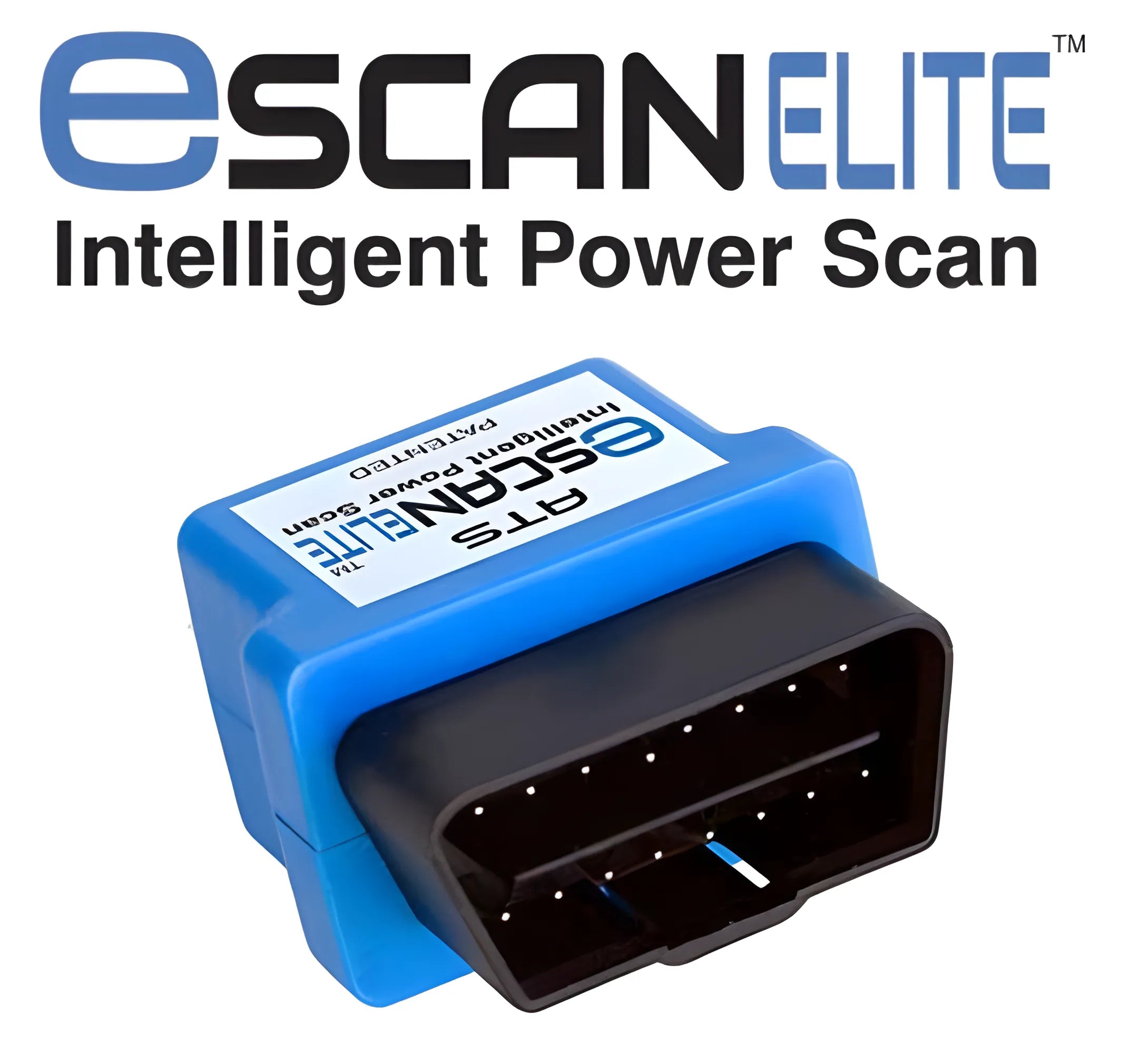

eSCAN ELITE

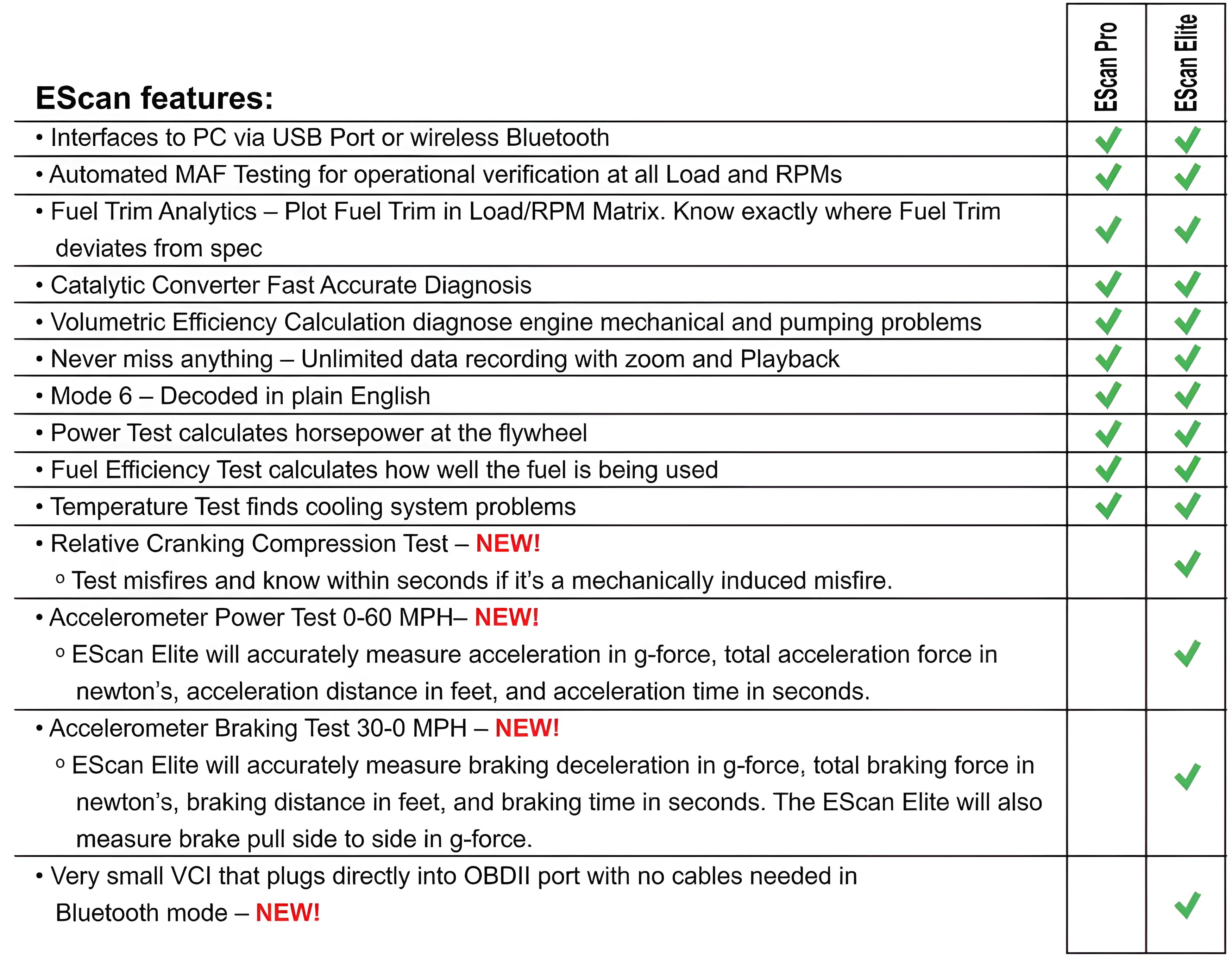

The eSCAN ELITE® does a lot that a typical scan tool cannot:
Relative Cranking Compression Test
Test misfires and know within seconds if it’s a mechanically induced misfire.
Accelerometer Power Test 0-60 MPH
eSCAN ELITE will accurately measure acceleration in g-force, total acceleration force in newton’s, acceleration distance in feet, and acceleration time in seconds.
Accelerometer Braking Test 30-0 MPH
eSCAN ELITE will accurately measure braking deceleration in g-force, total braking force in newton’s, braking distance in feet, and braking time in seconds. The eSCAN ELITE® will also measure brake pull side to side in g-force.
Use the eSCAN to quickly verify:
► MAF Sensors Problems ►Catalytic Efficiency Problems ► Fuel Control Problems ► Fuel Delivery Problems ► Low Power Problems ► Charging System Problems ► Mechanical Problems ► and much more...
More...

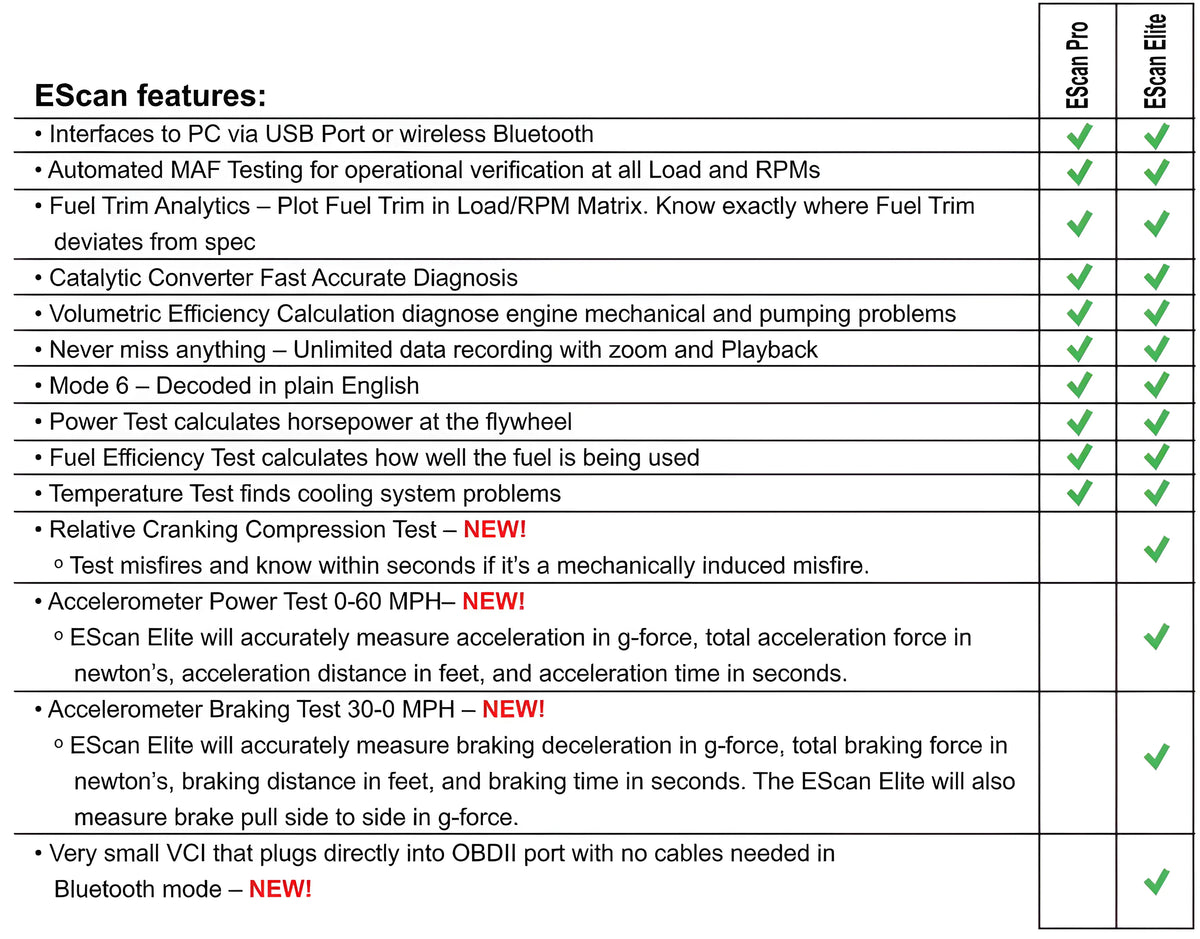

Automated MAF Testing for operational verification at all Load and RPMs
Fuel Trim Analytics – Plot Fuel Trim in Load/RPM Matrix. Know exactly where Fuel Trim deviates from spec
Catalytic Converter Fast Accurate Diagnosis
Volumetric Efficiency Calculation diagnose engine mechanical and pumping problems
Power Test calculates horsepower at the flywheel
Fuel Efficiency Test calculates how well the fuel is being used
Temperature Test finds cooling system problems
Never miss anything – Unlimited data recording with zoom and Playback
Mode 6 – Decoded in plain English
Comprehensive ATS technical support via phone, email, remote.
Data Can be Saved to Text File for Future Retrieval. Unlimited record time!
Data Can be Saved to JPEG Image for E-mailing or Documentation
MultiTool Tab allows Simultaneous Viewing of EScan Data along with Data from other ATS Diagnostic Tools

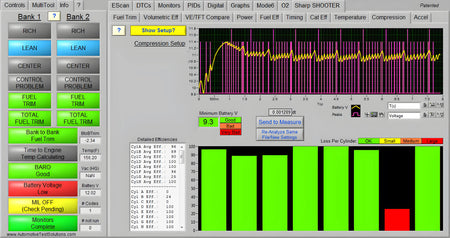

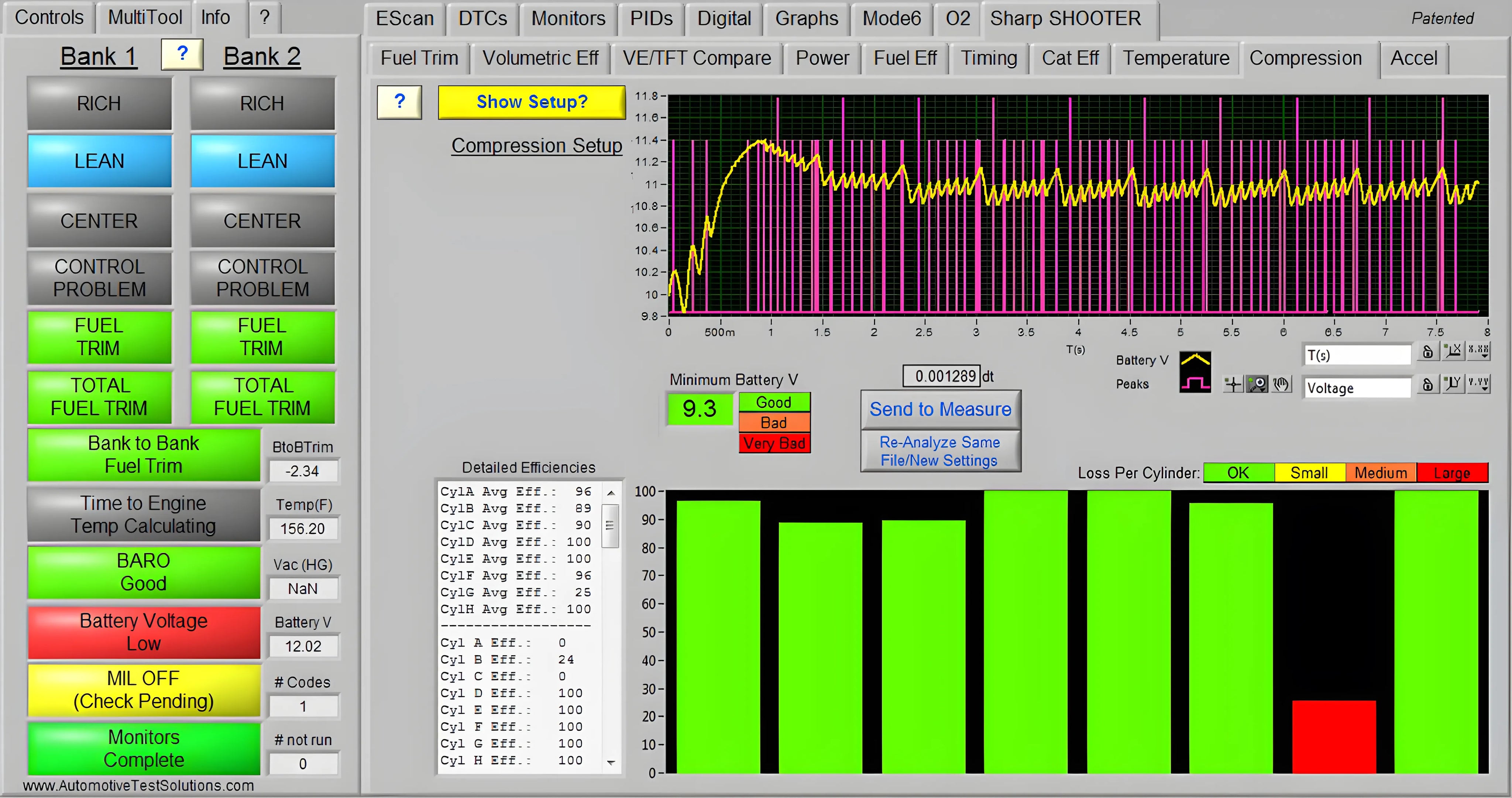

Relative Compression Test
Know within seconds if it’s a mechanically induced misfire.

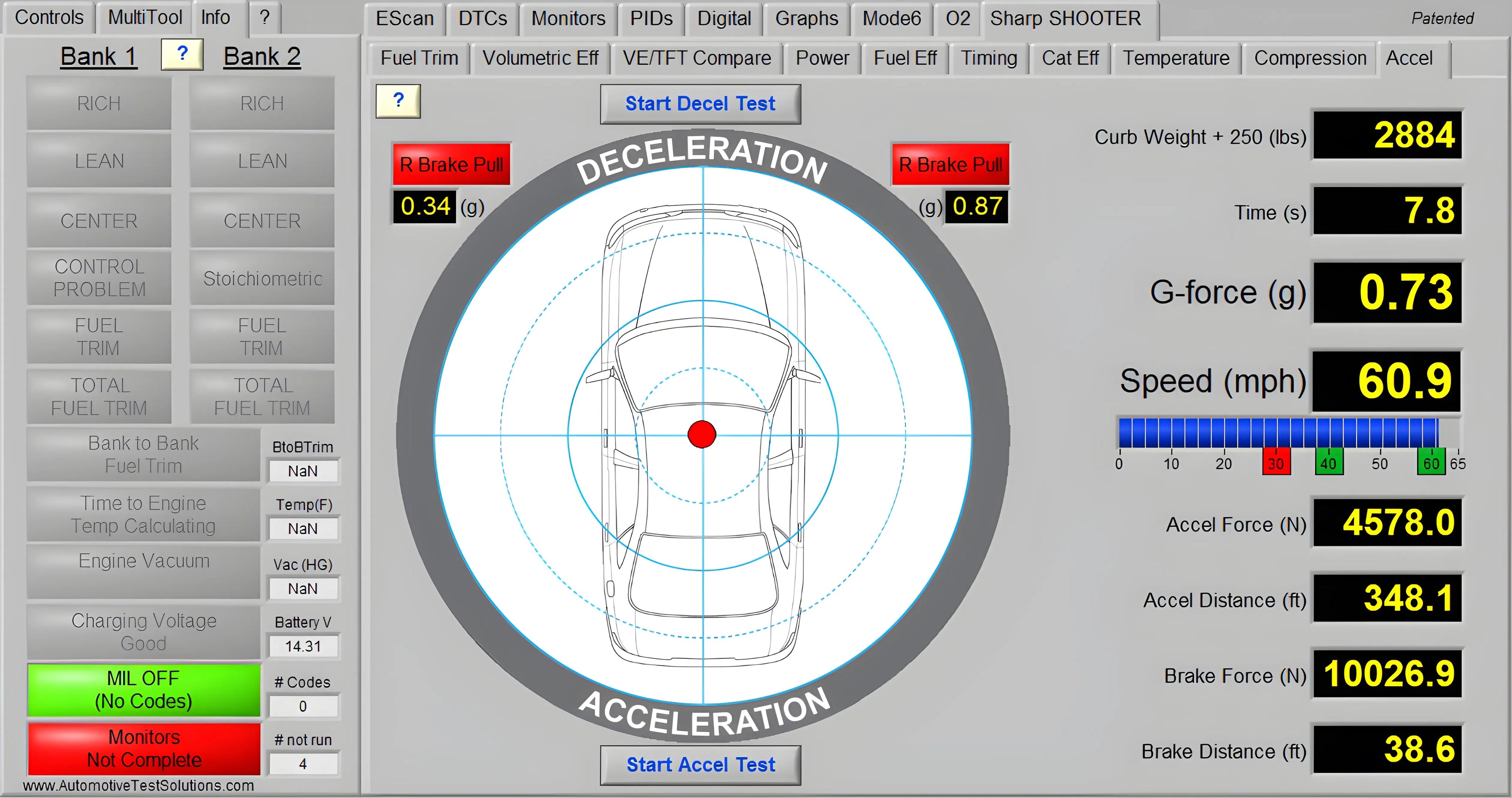

Power Acceleration Test 0-60 MPH and Braking Test 30-0 MPH
Acceleration measurements in in g-force, total acceleration force in newton’s, acceleration distance in feet, and acceleration time in seconds.
Braking measurements in deceleration in g-force, total braking force in newton’s, braking distance in feet, and braking time in seconds. The eSCAN ELITE also measures brake pull side to side in g-force.
eSCAN ELITE analyzes FUEL TRIM.
Green squares = good fuel trim.
Red or Orange squares = bad fuel trim.
Alert lights on the left side of each screen are constantly updated and give you information on Bank 1 and Bank 2 as well as the status of the control system.
eSCAN ELITE analyzes VOLUMETRIC EFFICIENCY.
Yellow and Red graph mirror each other = good.
Yellow and Red graph separate = not good.
eSCAN ELITE analyzes CATALYTIC EFFICIENCY.
Test Cat Efficiency from idle to full throttle.
eSCAN ELITE even translates MODE6 into english.
Values highlighted to indicate close to or out of spec.
eSCAN ELITE Features
* Connects to all major data protocols: ISO-9141-2, KWP2000, J1850 (PWM and VPM), and CAN Bus Types
* Compatible with Wide Ratio Air Fuel (WRAF) Sensors.
* Very Fast Auto Connect for DTC check
* Easy PID Setup plus Calculated PIDs
* Digital and Slide Bar Readouts
* Powerful Graphing
* Cursor Measurements of Charted or Recorded Data
* Recording of Data and Screen Shots
* Reads and Plots Monitors
* Reads and Decodes DTCs and Pending Codes on one screen
* Resets DTCs
* Reads Freeze Frame Data
* Reads and Decodes Mode6 Data
* Reads O2 Sensor Data
* Large 1024x768 Pixel (XGA) Viewing Area with Large Colored Traces
* Unlimited record time!
* Save data to Text File for Future Retrieval
* Save data to JPEG Image for E-mailing or Documentation
PC minimum recommendations for the eSCAN ELITE software
• WXGA (1280x768 pixel resolution screen)
• 1 GHz Processor Speed (faster is better)
• Windows 10 or newer
• 256 MB RAM or more
• 500 MB or more
• USB 2.0 or newer

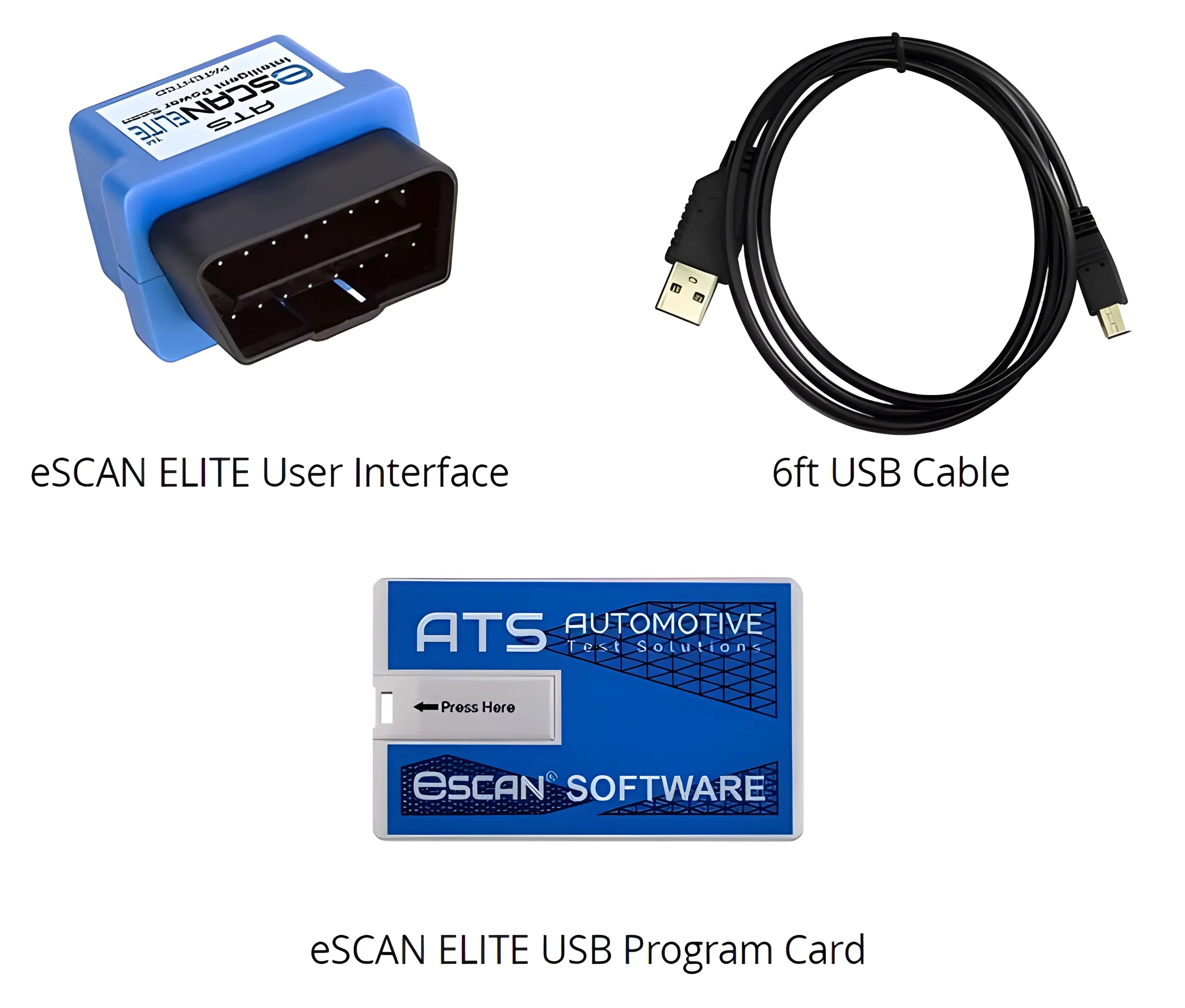

Kit Includes
• eSCAN ELITE with accelerometer
• 6-ft USB Cable
• USB Card and free software updates
• Paperboard storage box
• 1-year warranty
