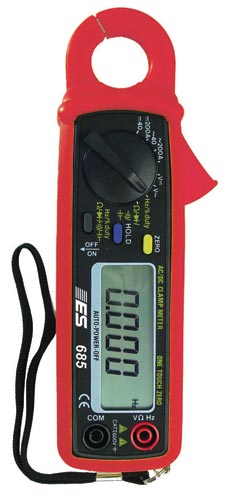

Current Probe / DMM w/ Freq.
Use the #685 all purpose electrical testing: fuel injection systems, fuel pumps, charging systems, electric motors, and most parasitic drains.
The #685 measures Hz, Duty Cycle, Capacitance, Diode Test and is auto-ranging on AC/DC Volts with nine test ranges.
Capable of measuring as low as 10 milliamps!
Features
- 35 Test Ranges
- 10 Test Functions
- Auto Power Off
- Auto-Ranging
- Data Hold
- Continuity Beep
- Overload Protection
- Clamp opening 7/8 inches
Test Ranges
- DC Amps: 0-40A, 200A
- AC Amps: 0-40A, 200A
- DC Volts: 0-400mV, 4V, 40V, 400V, 600V
- AC Volts: 0-4V, 40V, 400V, 600V
- Ohms: 0-400, 4k, 40k, 400k, 4M, 40M
- Frequency: 0-10Hz, 100Hz, 1000Hz, 10kHz, 100kHz, 1000kHz, 10MHz
- Capacitance: 0-4nF, 40nF, 400nF, 4uF, 200uF
- Duty Cycle: 0-.5%-99.0%
- Diode: Diode Test
- Continuity: Audible Beep
Contents
* Model 685 Current Probe/DMM
* 9 Volt Battery Included
* Carrying Case included
* 1-year warranty
