Pico PQ024 – CAN Test Box with Foam Tray Organizer

OBD-II Signal Access | Scope-Ready | Includes 4mm Adapters & Custom Foam Insert

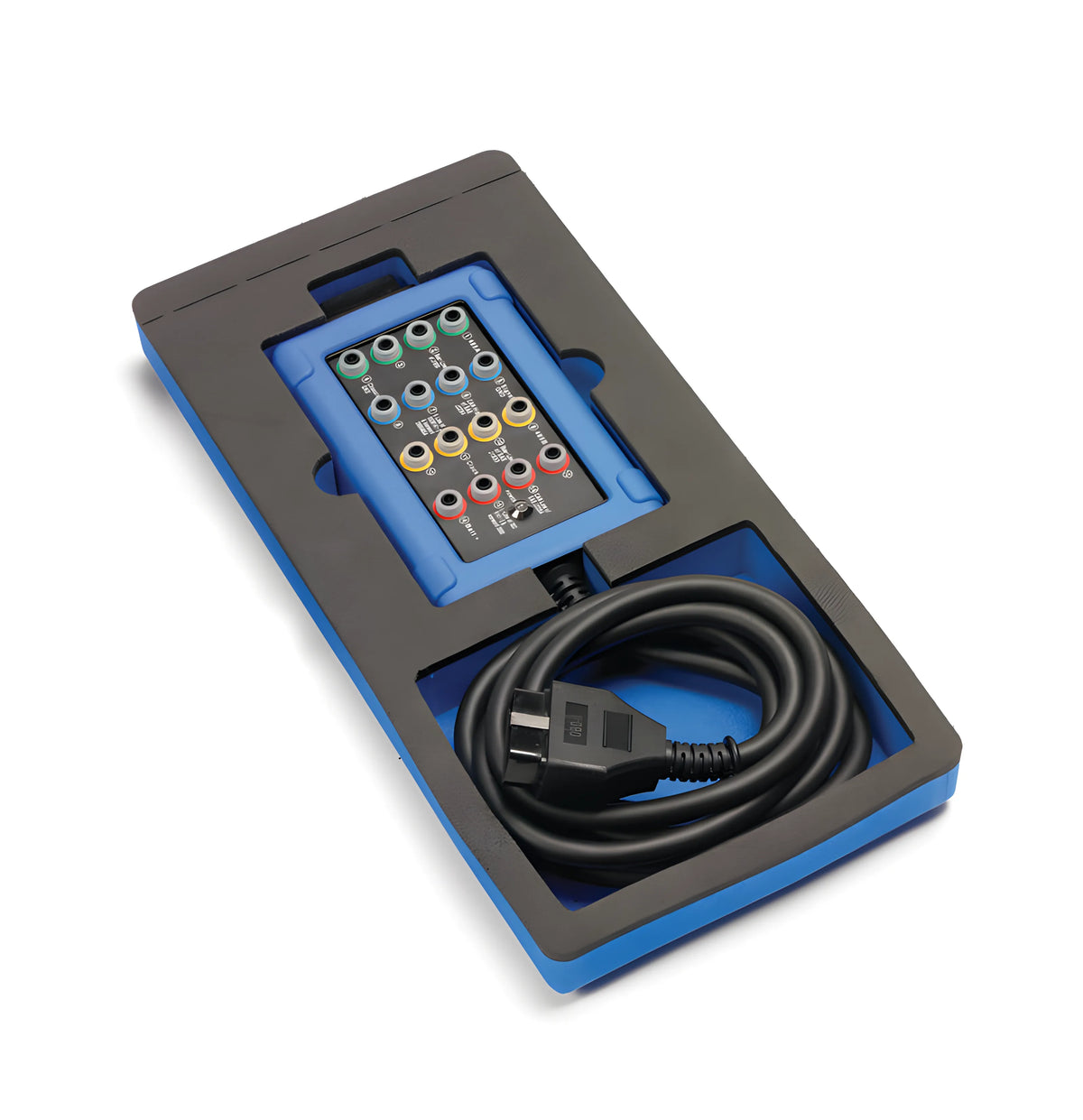

The Pico PQ024 kit combines the trusted PP619 CAN Test Box with a custom foam tray organizer, giving technicians a clean and convenient way to store and deploy this essential diagnostic tool. Designed for fast, non-intrusive access to OBD-II (DLC) signals, the CAN Test Box provides instant visual feedback and allows simultaneous connection of scan tools and scopes, ideal for diagnosing communication faults, verifying power/ground, or capturing CAN waveforms.

Foam Size: 7.28" x 15.25" wide (185 mm x 390 mm) x 1-1/2 deep. Includes a removable 20 mm strip to reduce the width from 15.25" (390 mm) to 14.56" (370 mm).

Contents
• CAN Test Box
• Foam Tray Organizer
• 2 @ mm shrouded - unshrouded adapter - black
• 2 @ 4mm shrouded - unshrouded adapter - red

(Attach the unshrouded adapters to the ends of the Pico test lead to safely insert them into the CAN Test Box.)

Key Features

• Connects to 16-pin OBD-II connector for signal access

• Numbered, backlit LEDs show live signal activity on each pin

• Scope-compatible via standard 4mm banana jacks

• Pass-through port allows scan tool and scope to operate simultaneously

• 2.5m (8.2 ft) cable lets you test from the passenger seat or workbench

• Compatible with 12V & 24V vehicles

• No external power required – powered by the vehicle's DLC

Signals Monitored

• CAN High/Low (Pins 6 & 14)

• J1850 Bus+/Bus- (Pins 2 & 10)

• K & L Lines (Pins 7 & 15)

• Chassis Ground, Signal Ground, Battery+ (Pins 4, 5, 16)

• Manufacturer-specific and future upgrade lines also indicated

LED Behavior:

• Solid ON = Active circuit

• Pulsing = Signal activity (high/low transitions)
