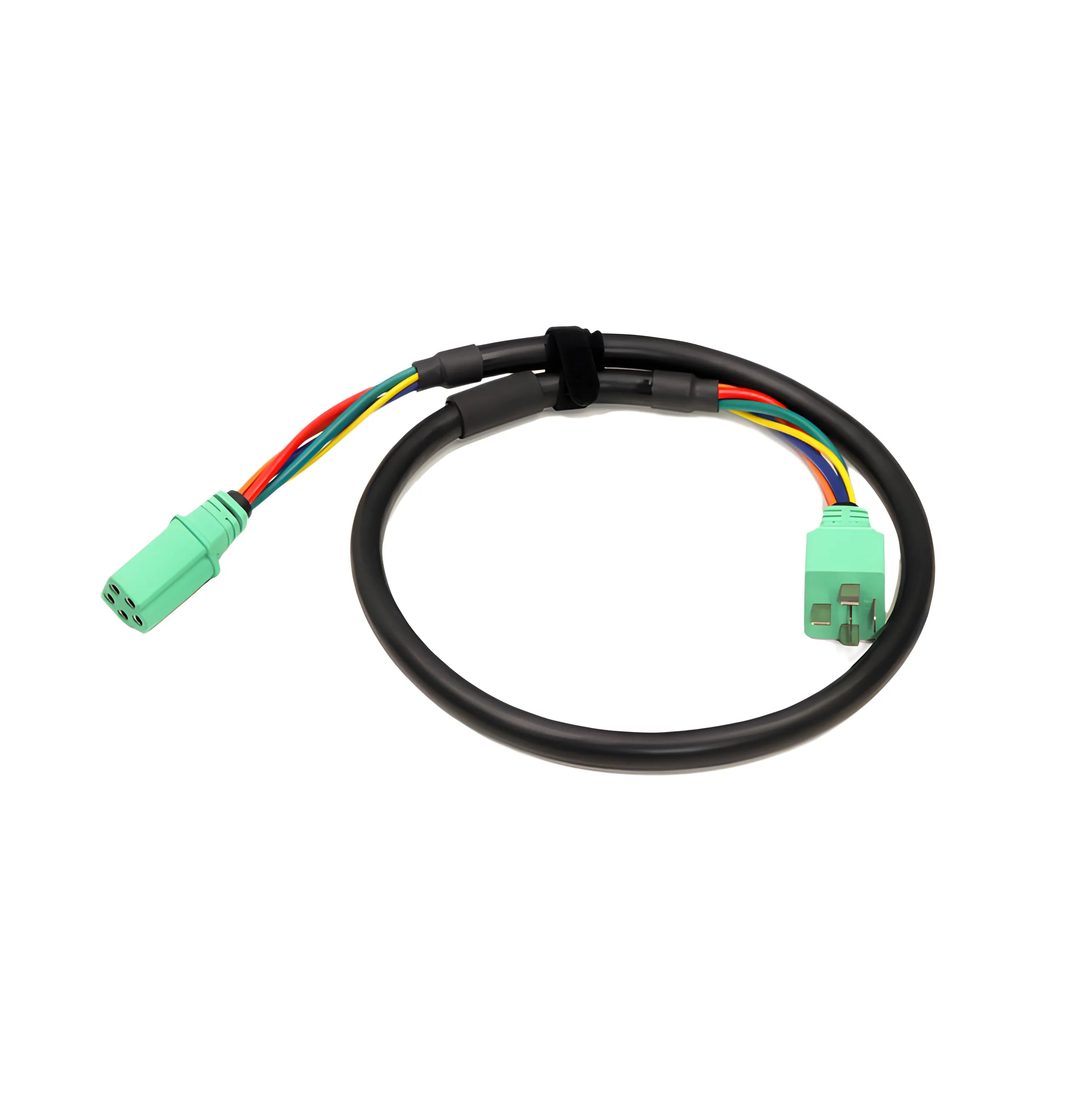

5-pin (BMW) 87+87 - ISO Mini Type A
Lime Green ISO Mini Type A relay has two 87 contacts (87+87) that are tied together making simultaneous contact when switched
Caution:

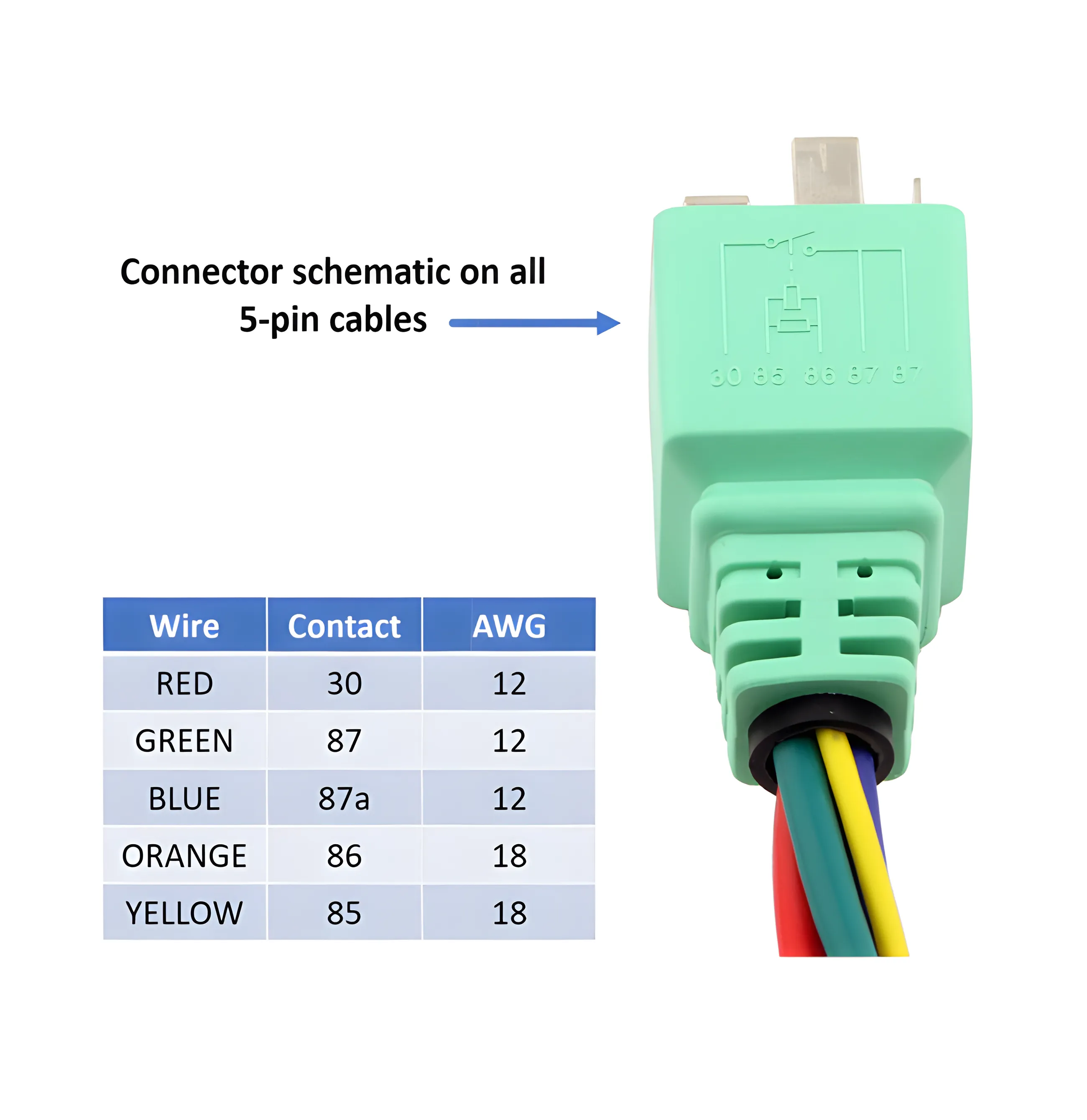

Although this relay cable will fit into a standard ISO Mini socket due to a similar terminal layout, the terminal designations (internal wire connections) are not the same. 30 and 86 positions are swapped!
These cables are not interchangeable!
TYPE A is used by some manufacturers such as BMW, Jaguar, Euro Fords, and Opel. The lime-colored ISO Mini relay is just one example of many color-coded Type A relays popular with BMW.
TYPE B is the most common ISO Mini version and is referred to
as the €œBosch relay€ and is standard in most U.S. vehicle and aftermarket applications.
NOTE: We can provide a custom cable that isolates the two 87 terminals so each branch can be tested separately - instead of 87 + 87 it would be 87a or 87.
