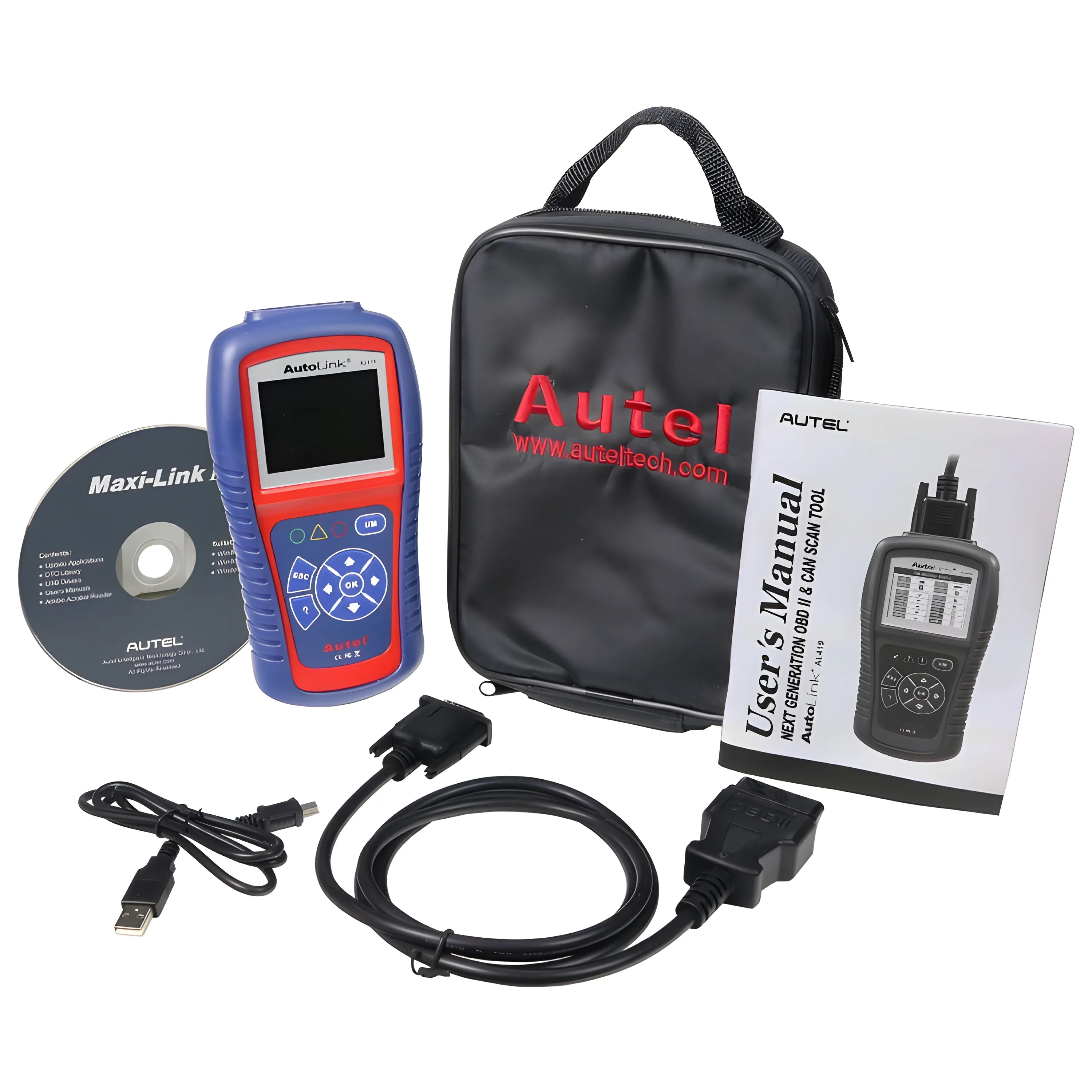

AutoLink AL419
Features
- Works on most 1996 and newer vehicles(OBDII & CAN)
- Features the unique patented One-Click I/M Readiness Key for quick State Emissions readiness check and drive cycle verification
- Bright color coded LEDs and built-in speaker provide both visual and audible tone for readiness verification
- Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes
- Easily determines the cause of the Malfunction Indicator Light ( MIL)
- Turns off Malfunction Indicator Light (MIL), clears codes and resets monitors
- Displays DTC definitions on the TFT color screen
- Views freeze frame data
- Displays monitor and I/M readiness status (emissions)
- Troubleshooter code tips guide technicians to the root cause of trouble code faster, saving diagnosis and repair time
- Retrieves vehicle information (VIN, CIN and CVN)
- Multilingual menu and DTC definitions- English, Spanish and French, etc
- Internet updateable
- Prints data via PC
| Specifications | |
|---|---|
| Display | TFT color display (320 x 240 dpi) |
| Operating Temperature | 0 to 60°C (32 to 140 F°) |
| Storage Temperature | -20 to 70°C (-4 to 158 F°) |
| External Power | 8.0 to 18.0 V power provided via vehicle battery |
| Length\Width\Height | 199 mm (7.83”)\104.5 mm (4.11”)\37.5 mm (1.48”) |
| Weight | 0.28kg (0.75lb, without wire) or 0.484kg (1.3lb, with wire) |
