Autel MaxiSYS MS909CV Diagnostic Platform for HD and Commercial Vehicles
The Autel MaxiSYS MS909CV advanced commercial vehicles diagnostic tool is compatible with more than 80 models of light, medium and heavy-duty vehicles. The 9.7-inch wireless Android-based touchscreen tablet performs extensive vehicle diagnostics including the ability to read/erase codes, view and graph live data, and perform active tests.

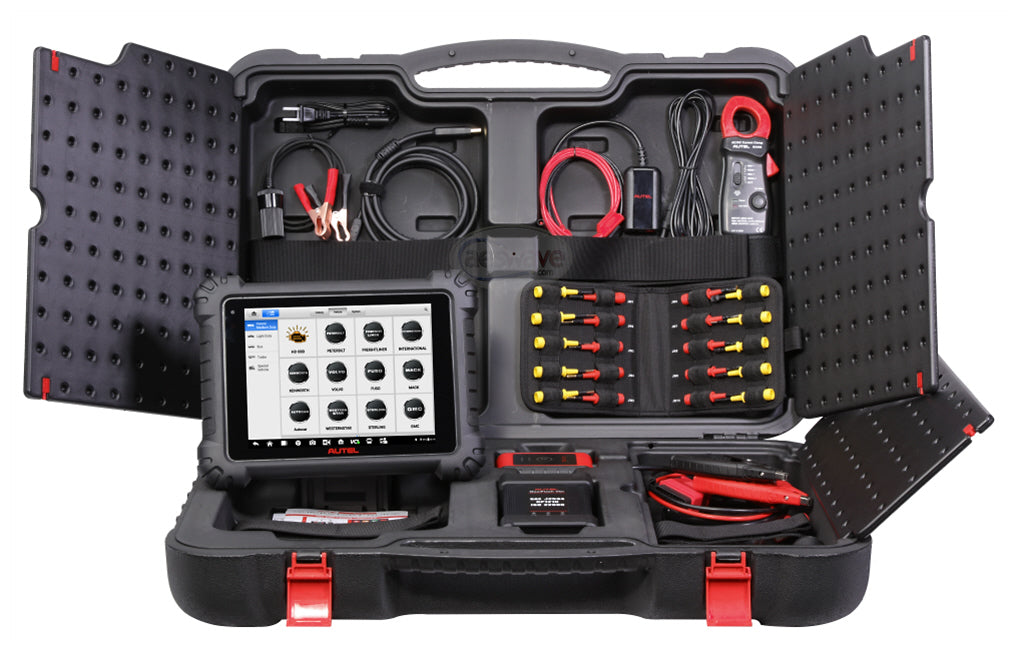

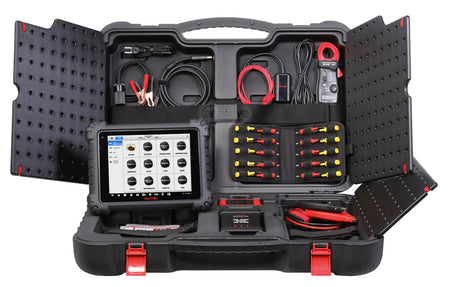

The tablet includes a Bluetooth-enabled vehicle communication interface (VCI)/J2534 pass-thru programmer, the MaxiBAS B200 battery, starting and charging system test device and alligator clamps, a multimeter and amp clamp. The tablet also includes ADAS Calibration Software for Class 3 to 5 vehicles and Class 6 to 8 Vehicles with Dynamic Calibrated Systems. (Class 6-8 Static Calibration – coming soon).
The MS909CV includes a one-year limited warranty and a year of free software updates.
TABLET FEATURES
• 9.7” Touchscreen tablet running Android 7.0 Operating System
• Octa-Core Processor / 4GB RAM & 128GB On-board Memory
• Cameras: Front 5.0MP / Rear 16MP, autofocus with flashlight
• Connectivity: WiFix2, BT, GPS, USB 2.0 (TWO USB HOST Type A, ONE USB mini device), HDMI 2.0, SD Card (supports up to 256GB)
• 15000mAH 3.8V lithium-polymer battery
• Charging via 12V AC/DC power supply
• Print via WiFi to PC to Autel's "Maxi PC Suite" software
• Save reports to PDF and email
INTELLIGENT DIAGNOSTICS
• Enhanced AutoSCAN / VINScan for easy vehicle identification
• DTC Analysis / Repair Guided Assist
• Pre/Post scan reports
• Module Topology on many light duty vehicles, some Class 6-8, some Freightliner and Paccar. The tablet must be connected to the internet to display topology.
ADAS CALIBRATION
• Class 6-8 Dynamic Calibration
• Class 3-5 Complete ADAS Coverage
• Class 6-8 Static Calibration (coming soon)
BATTERY ANALYSIS
• Heavy Duty Battery Test & Health Report
• Includes the BT506 and the BTAK
Coverage
The MS909CV includes coverage for more than 80 models of light, medium and heavy-duty vehicles. The MaxiFlash VCI is compatible with the latest J2534 protocols (DOIP) and is compliant with RP1210 ans ISO 22900, for details click here.
Contents
