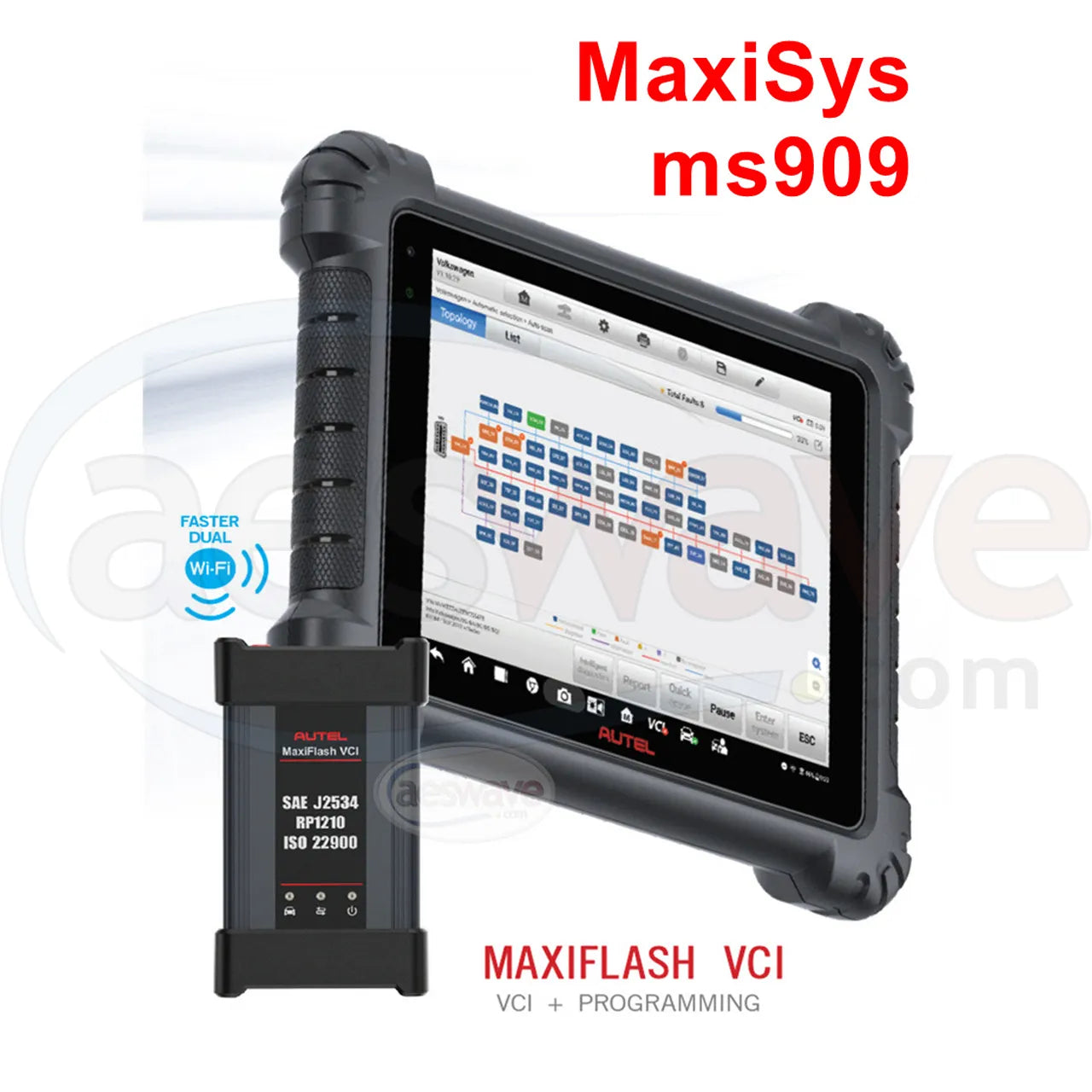

Autel MaxiSYS MS909
How the Autel MS909 differs from the older Elite and MS908s:
- More memory: 128GB Memory
- VCI interface with updated J2534 compatible with DoIP, MEGACAN, and more!
- Topology M Module Listing organizes and displays modules by communication network
- Faster processor
- Does not include a docking station
- Does not include early OBD-II adapters!
- Android 10 OS
- 1-year update subscription and warranty (Both can be renewed)
Features
- 9.7’’ Touchscreen (1536 x 2048)
- Android 10 OS
- 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
- New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
- Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
- Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
- Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
- Code-Related Technical Service Bulletins (on select vehicles)
- License Plate Reader
- ScanVIN: Barcode or Text Recognition with Camera
- Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)
- Enhanced Diagnostic Reports: PreSCAN & PostSCAN
- 15000mAh lithium-polymer battery, 8hrs Continuous Use
- 16MP Rear Camera Autofocus with Flashlight & 5MP Front Camera
- 1-year update subscription and warranty (Both can be renewed)

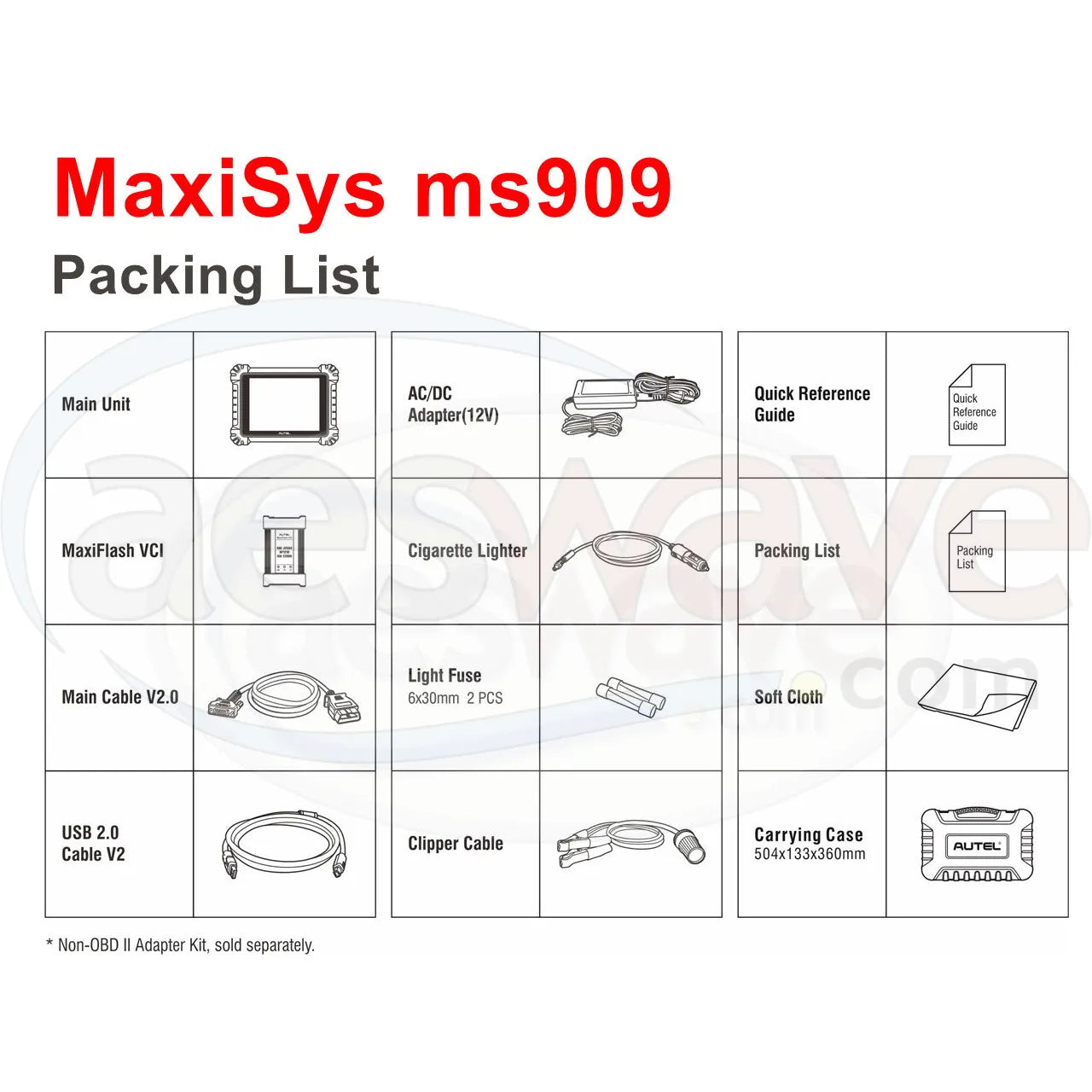

Contents
Why buy from AESwave...
Since 2009, AESwave has been an authorized dealer for Autel USA providing technical support, account setup, and warranty assistance via phone, email, or remote login.
| Specifications | |
|---|---|
| OS | Android 10 |
| Processor | Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen |
| Connectivity | WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) |
| BT v.2.1 + EDR | |
| GPS | |
| USB 2.0 (Two USB HOST Type A, one USB mini device) | |
| HDMI 2.0 | |
| SD Card (Support up to 256GB) | |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight |
| Front: 5 Megapixel | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio | Microphone |
| Dual Speakers | |
| 3-Band 3.5 mm stereo/standard headset jack | |
| Battery | 15000mAh 3.8 V lithium-polymer battery |
| Charging | Charging via 12 V AC/DC power supply |
| Input Voltage | AC/DC 12V/3A Adapter |
| Operating Temp. | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66lbs) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
