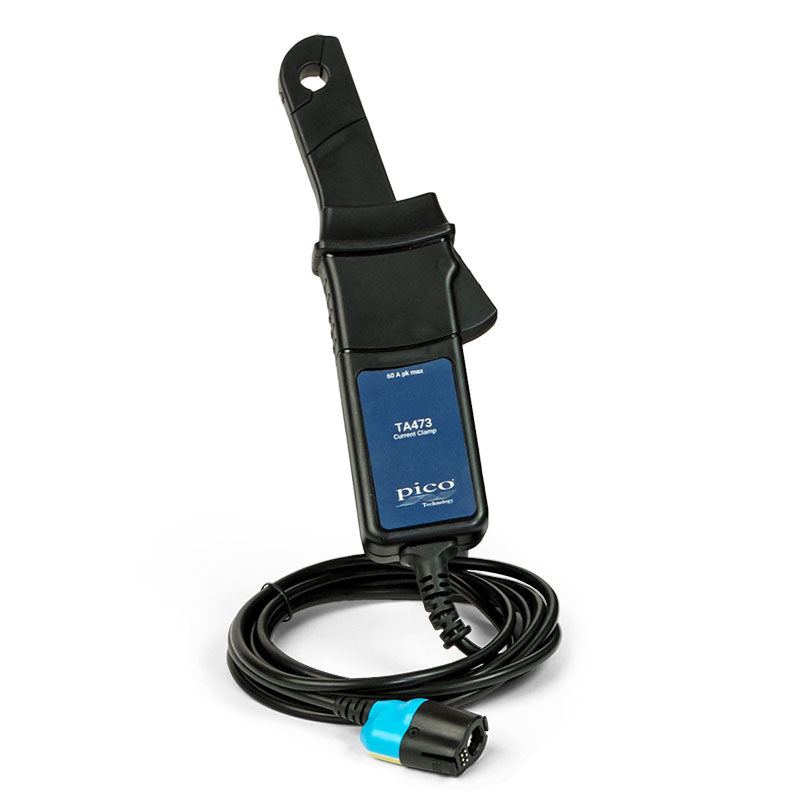

60A AC/DC Current Clamp with PicoBNC+ (TA473)
The Pico 60A AC/DC Current Clamp (TA473) with PicoBNC+ does not require a battery; it is powered by the scope (4225A/4425A) via the PicoBNC+ connector.
The PicoBNC+™ enables the PicoScope software to auto-configure itself for the TA473 60A AC/DC Current Clamp when used with a compatible PicoScope, such as the 4225A or 4425A. Additionally, ranging is carried out automatically with no user switching required and the clamp is auto-zeroed whenever connected to the scope.
The TA473 clamp boasts amazing resolution and accuracy with reduced noise levels when testing:
- Gas and diesel injectors
- Solenoids
- Throttle motor functions
- EGR actuators
- Broadband 02 sensors (in conjunction with current multiplier)
- High current consumption tests up to 60 Amps (Motor lock-up test)
- Parasitic drain measurements
The TA473 60A AC/DC Current Clamp features:
- PicoBNC+™ scope connector
- Range: 10 mA and 60 A.
- 12mm diameter jaw
- Overall length of probe with shielded lead is 2.85 meters
- Battery not required!
- 1-year warranty
