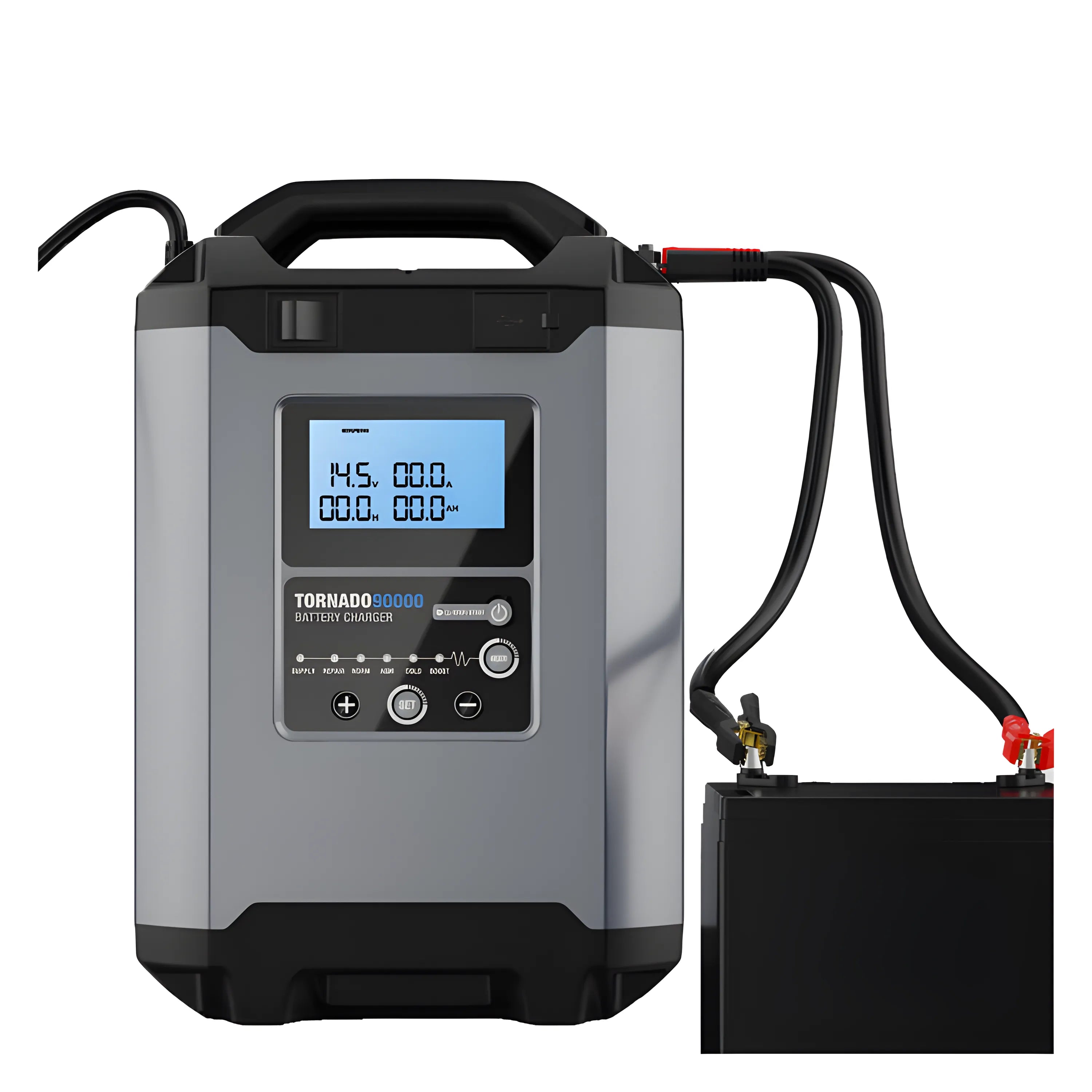

Tornado90000 Smart Charger and Stable Power Supply
Updated to charge 12V Lithium batteries
The TOPDON Tornado90000 is a professional-grade smart charger and voltage stabilizer. It features a large, easy to grab handle and can be powered via NEMA 5-20 AC service plug and or via NEMA 5-15 with the included adapter.
Features/Capabilities
• 6 Charging Modes
• 9-Step Smart-Charging
• Extended KOEO Diagnostics
• Protects Against Short Circuits, Over Voltages, Over Charges, Reverse Polarities, and Over Temperatures
• Input Voltage: 100-130V or 200-240V
• Output Current: 12V 5-90A 24V 5-45A
• Charging Mode: 12V/24V Mode: SUP/NORM/COLD/BOOST/REP
• Applicable Batteries: 20-2800Ah
• Clip Type: 1 Pole Clamp
• Clip Cord Length: Positive AWG4#, 7.2ft, Negative AWG4#, 7.2ft
• AC Cable Length: 5ft 10 in cable with AWG18# Input
• Waterproof Rating: IP20
• Air-cooled, built-in fan
• Features NEMA 5-20 AC service plug and includes an adaper for a NEMA 5-15plug
6 Charging modes, adjustable current and voltage
The Tornado90000 offers 6 programmable charging modes to ensure the right current and voltage output at all times. This device also features an electrical current edit, and voltage edit function. The voltage adjustment ranges from 11-15.8V, and 22-31.6V. Corresponding currents are 5 -90A and 5 - 45A.

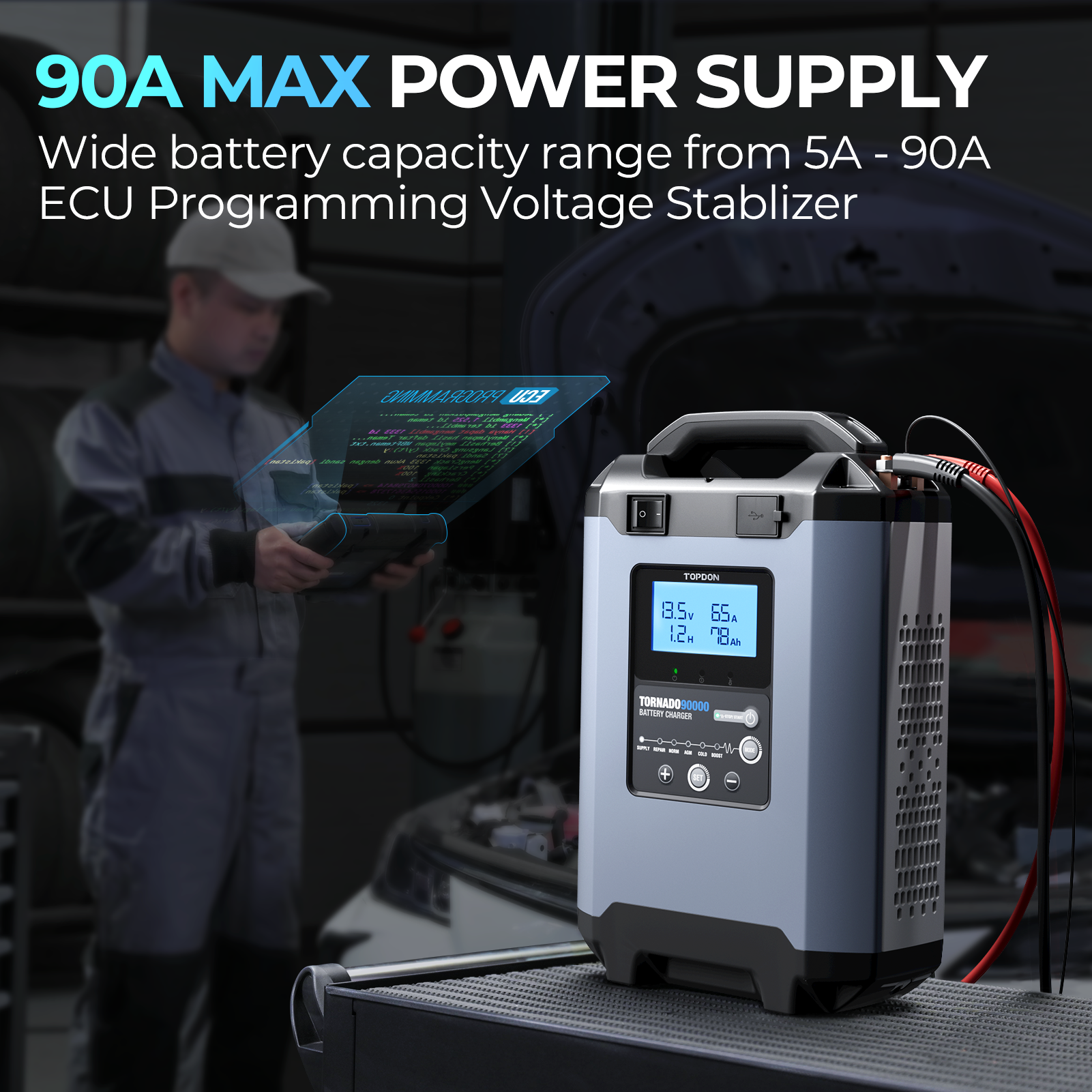

ECU Programming voltage stabilizer
ECU programming voltage stabilizer can match multiple brands and types of automotive systems.
Large power bank
The Tornado90000 can act as a stable power supply for various automotive appliances such as tire inflators, car fridges, and more.

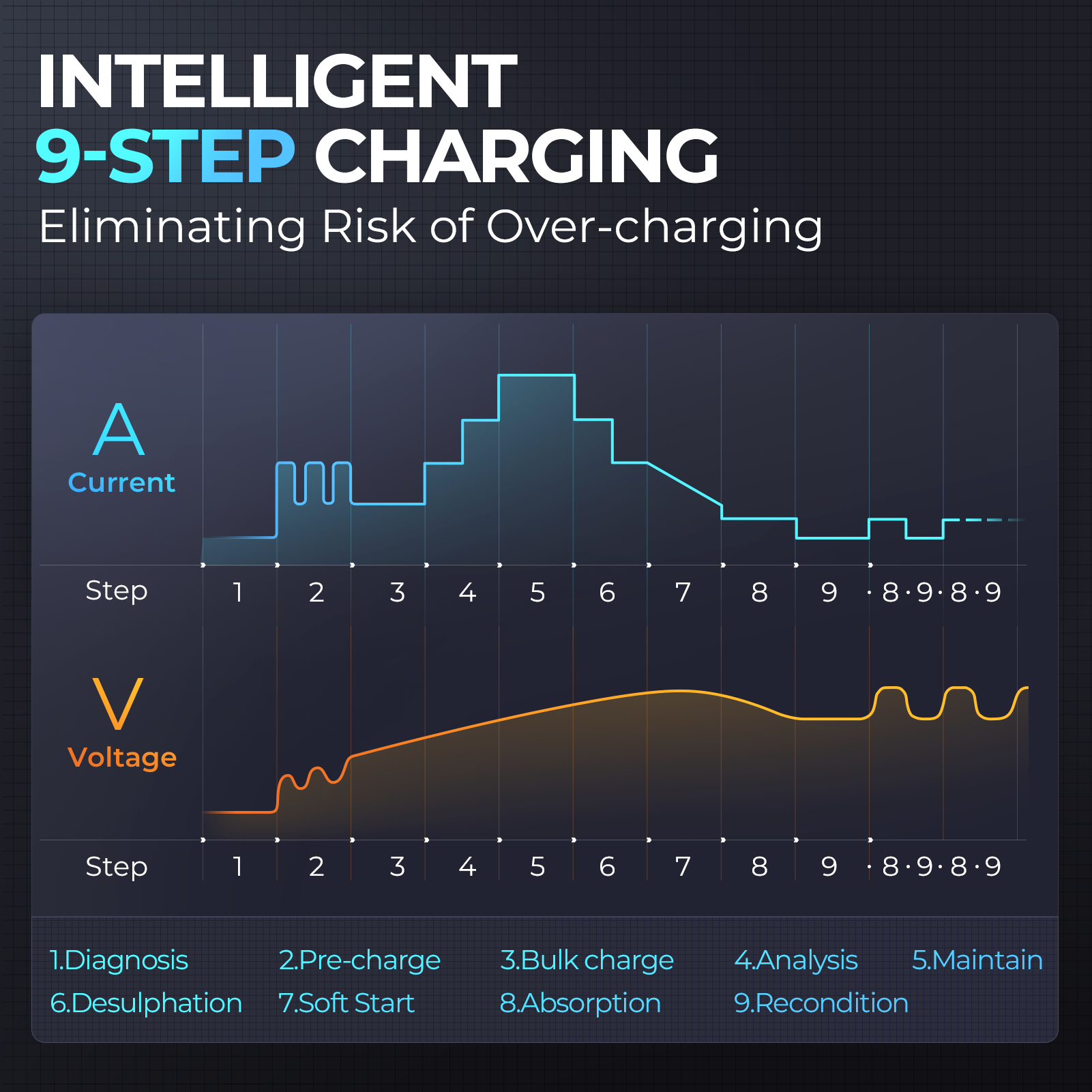

9-step Smart Charging
Its "9-step smart charging" provides strong protection to the battery and the automatic charging and disconnection system eliminates any risk of overcharging.
Your Battery's Bodyguard
With the T90A you get a multi-protection system against: reverse polarities, reverse charges, short circuits, overheating, and over-voltages.
Dual Temperature Monitoring for Safety In Every Element
The T90A features a built-in temperature sensor constantly protecting the device being charged. It has a built-in temperature sensor to detect the temperature of the device at all times; External temperature sensing probe to monitor and protect the device being charged.
Contents
• Tornado90000
• Battery Cables (7.2 feet long)
• Wrench
• User Manual (printed)
• 3-year warranty
