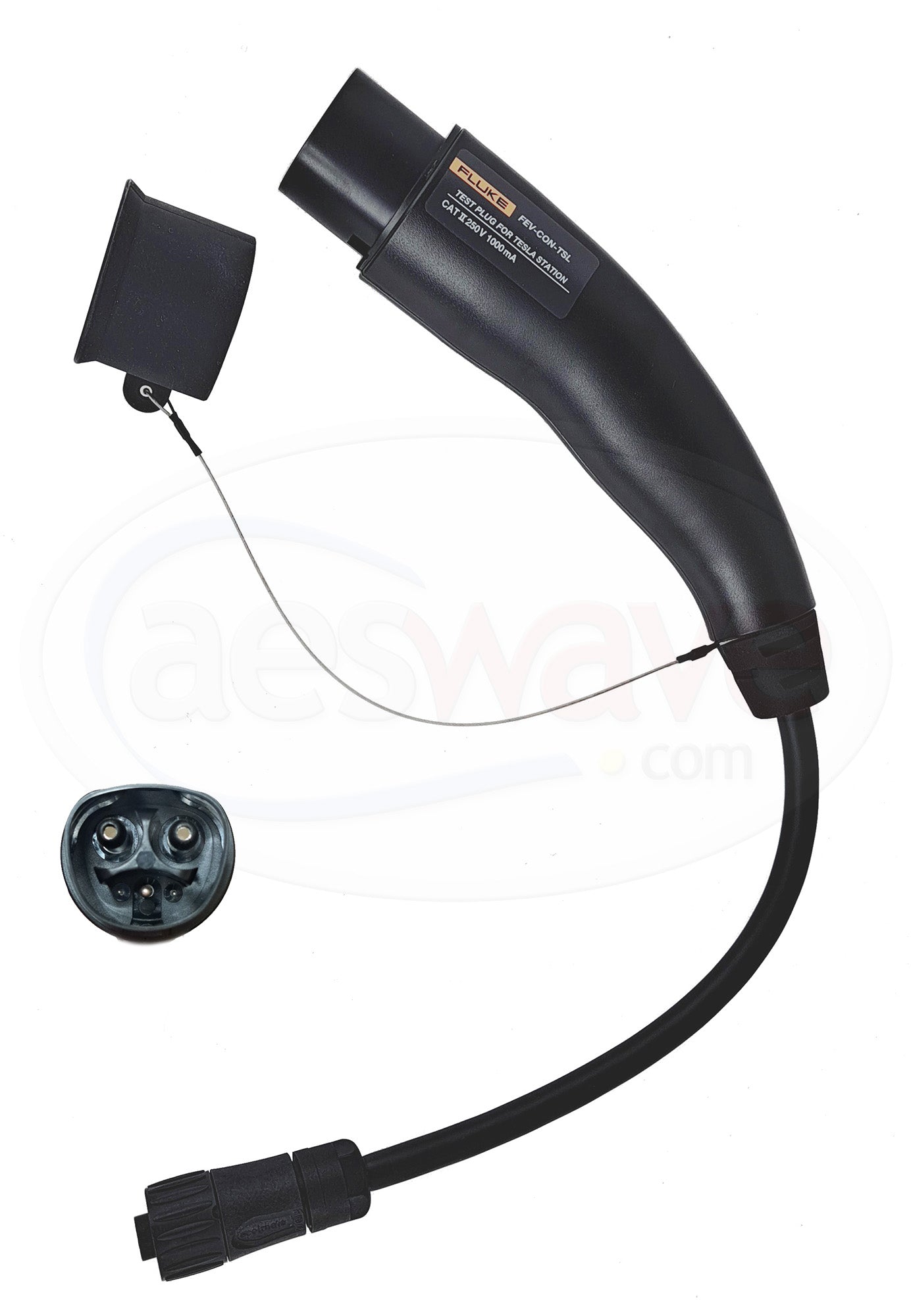

Tesla™ Wall Station Plug Adapter for Fluke FEV100
The Fluke test plug for Tesla™ Wall Stations (FEV-CON-TSL) is a high-quality accessory designed for use with the Fluke FEV100 EV Charging Adapter. The FEV100 is used to test the function and safety of electric vehicle charging equipment. When combined with the FEV-CON-TSL, you can safely perform a variety of tests, including ground fault checks, insulation of wires and measure voltage and duty cycle to see max current available for charging.
There is no need to have an electric vehicle onsite for Level 1 or Level 2 electric vehicle AC charging station (EVSE) troubleshooting. The adapter acts as an electric vehicle when connected to an EVSE for easy performance and maintenance testing. With over 35,000 Tesla Wall Stations installed, there is a growing need for a Tesla-specific test plug.
Please note: The FEV-CON-TSL is not designed for use with Tesla Superchargers, or any other DC fast charging stations. Do not attempt to use this adapter with DC fast chargers.
| FEV-CON-TSL Specifications | |
|---|---|
| Safety: | IEC 61010-1, IEC 61010-2-030, pollution degree 2 |
| Ratings: | CAT II 250 V, max 1000 mA |
| Operating temperature: | -4° to 104°F (-20° to 40°C) |
| Storage temperature: | -4° to 122°F (-20° to 50°C) |
| Operating humidity range: | 10 % to 85 % relative humidity non-condensing |
| Storage relative humidity: | 0 % to 85 % non-condensing |
| Operating altitude: | 6561 ft (2000 m) max. |
| Length: | Approx. 23.2 in (590 mm) including connectors |
| Weight: | Approx. 1.2 lb (550 g) |
| Warranty: | 1-year |
