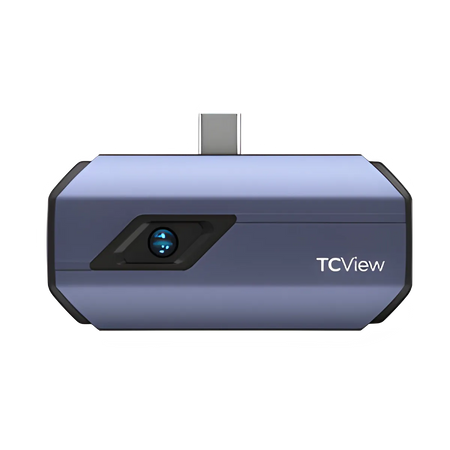

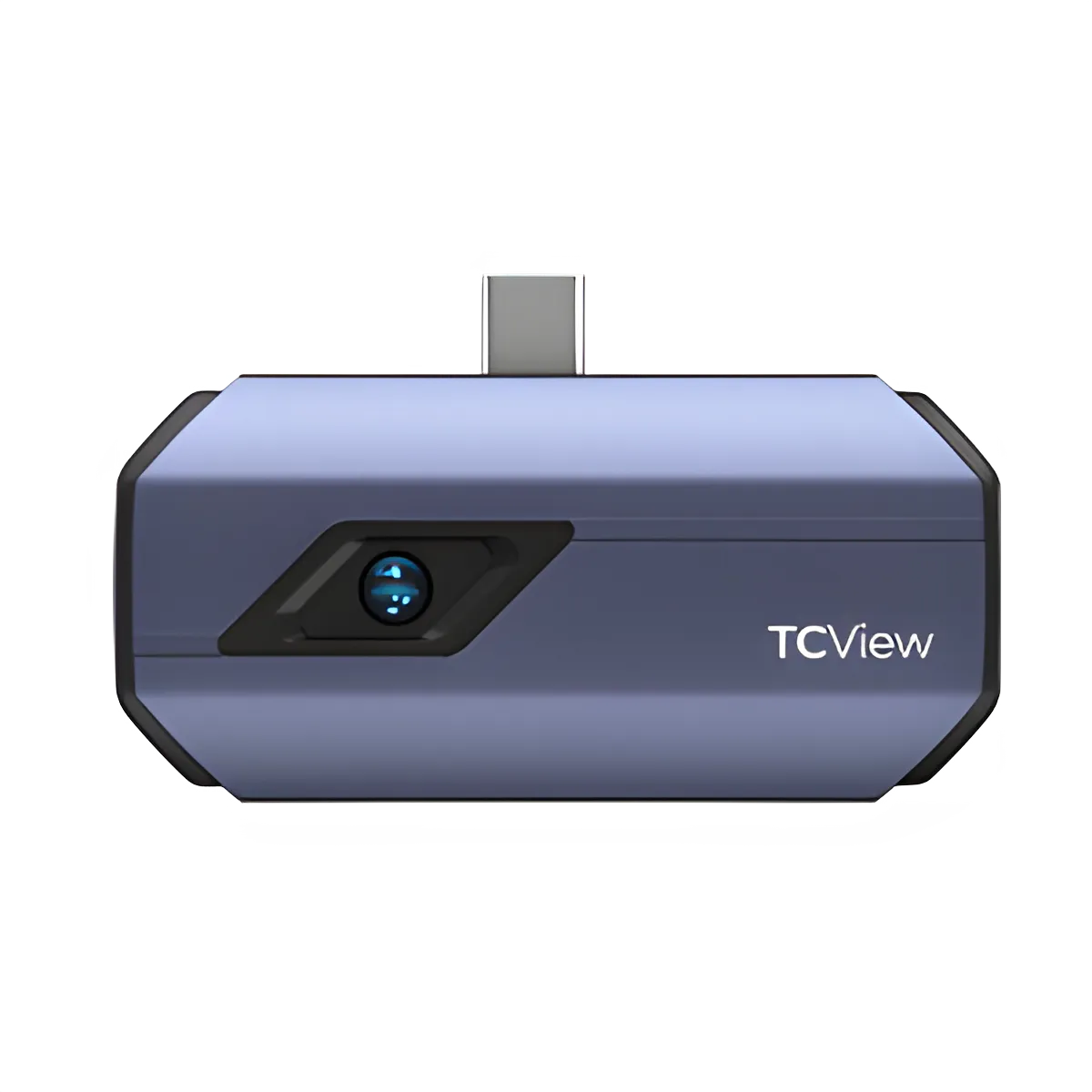

TC002 Thermal Infrared Camera for iOS
The TOPDON TC002 camera turns your Apple iOS smartphone or tablet into an infrared thermal camera. Use this camera with your phone to check cooling systems, HVAC, seat heaters, wheel bearings, brakes, and more. The TOPDON TC002 is designed to provide accurate thermal imaging for everyone, whether the job is home repair, professional automotive services, or protecting crops and livestock.
Features
• Superior Image Quality with an IR Resolution of 256x192
• Low power consumption of only 0.25W
• Compatible with iOS devices that have a Lightning port only.
• Enhanced Testing Range of -4°F to 1022°F (-20C to 550C)
• Three Temperature-Reading Dimensions (high, low, and aim point)
• Customizable Temperature Range
• Generate Temperature Graph for monitoring and logging data
• Image Enhancement Technology
• Plug'n'play, registration not required
• Use with the free TOPDON TC001 app in the Apple store
Specifications
• Spectral Range: 8~14μm
• IR Resolution: 256×192
• Pixel Size: 12μm
• Frame Rate: 25Hz
• Object Temperature Ranges: -20~150°C (-4~302°F), 150°C~550°C (302~1022°F)
• Accuracy±2ºC or ±2% of reading
• Dimensions 71x42x14mm, weight 30g

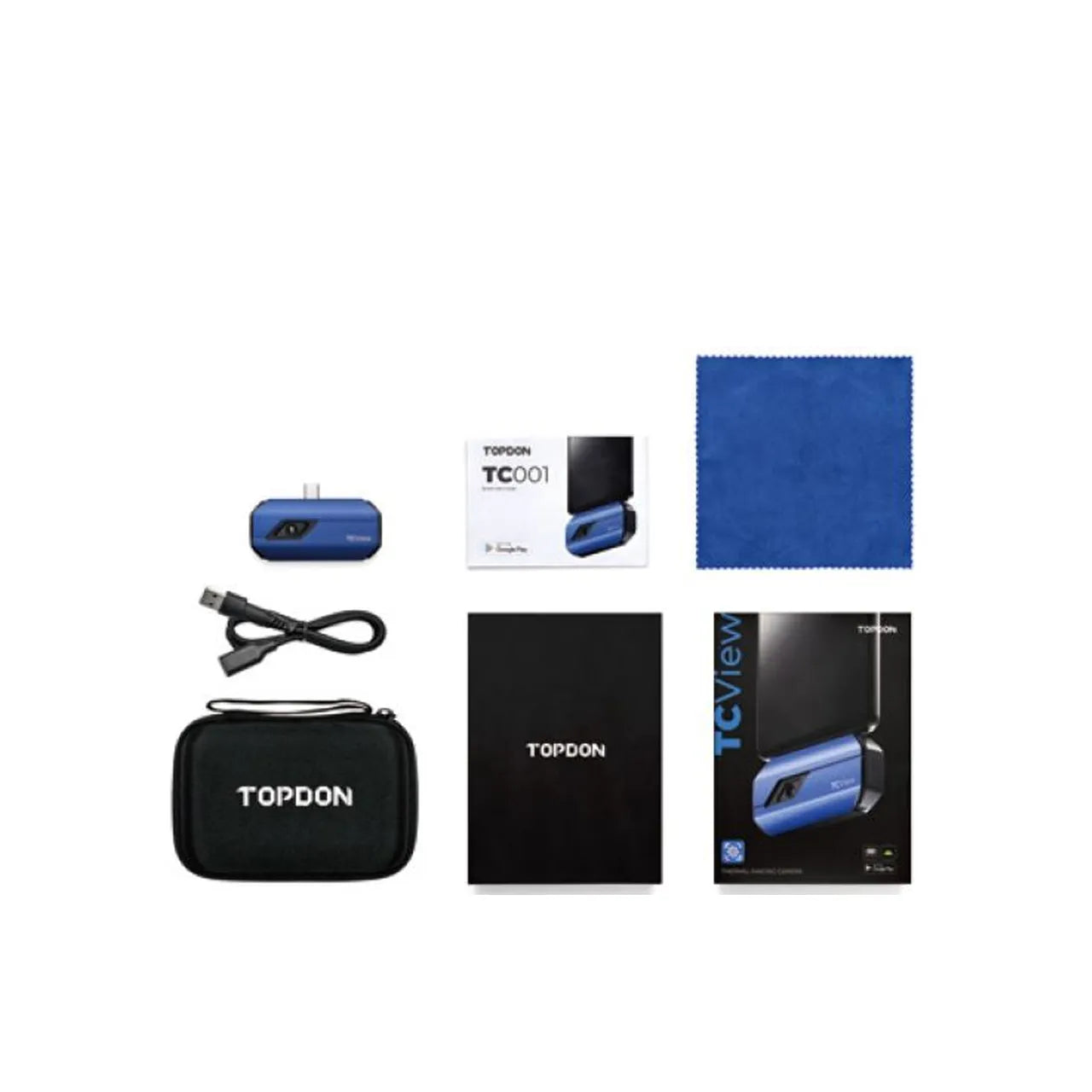

Contents
• TC002 Thermal Imaging Camera
• USB-C to USB-A Adapter
• Carrying Bag
• Cleaning Cloth
• Quick User Guide
• 1-Year Warranty
