Set of 2 high-pressure fuel hoses (max. 500 psi / 34.47 bar) , large and small Schrader valve

Set of Fuel pressure test hoses, small and large schrader valve.

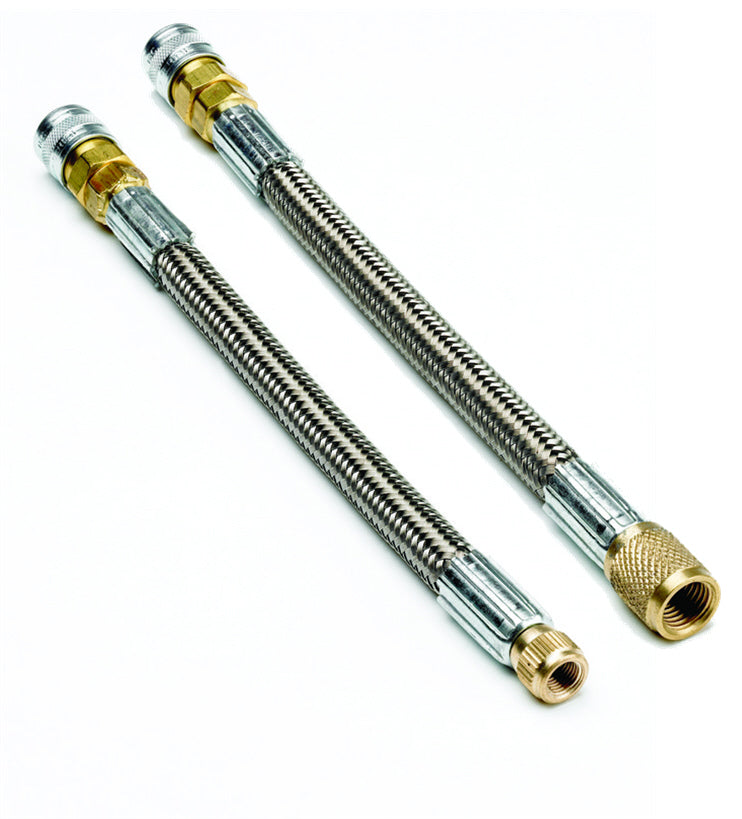

The TA117 (small) and TA083 (large) fuel pressure hoses are designed specifically for use with the WPS500X pressure transducer, with a strong construction to ensure safe and accurate operation. Each hose is terminated at one end with a Foster connector to fit the WPS500X, and at the other end with a Schrader valve to fit standard fuel rails.

Specifications:
* Conforms to SAE30R9
* Maximum working temperature of 115 degrees C
* Maximum pressure rating 500 psi (34.47 bar, or 3.447 kPa)
* Hose materials: Teflon tube reinforced by outer steel braid
* All materials compatible with gasoline and ethanol/ethanol blends
* Low permeation
* Viton seals in couplers and valves
