Waekon 78065 - PWM/Power PRO
Power Pro Tester drives both DC and PWM components, saving you time & money letting you test the component first!
Current diagnostic routines dictate time consuming circuit testing and NEVER test the component.
More and more of today's vehicles are using Pulse Width Modulated (PWM) motors, actuators and solenoids. You can't simply test them by directly applying 12 volts. This can cause expensive misdiagnosis.
Power Pro can drive:
• Fuel Pumps • EGR / EVAP Solenoids • HVAC Blower Motors / Blend Doors • Cooling Fans • Drive-by-Wire Actuators • and much more!
Features and Benefits
Drive both PWM and DC components
Delivers 0 - 40 Amps
0 - 100% adjustable drive in 1% increments
Drive connected or disconnected components
Displays actual current draw
Simple to use and connect

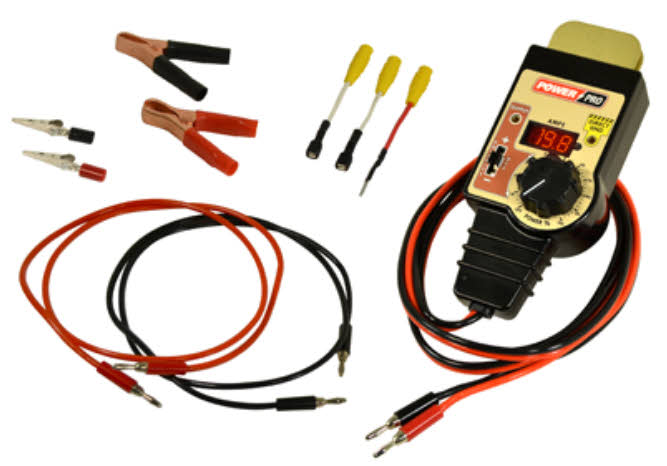

Contents
1 @ Tester with 7ft cables
2 @ 3ft. 40A Test Lead
2 @ Battery Clips
2 @ Alligator Clips
2 @ Female Spade Probes
1 @ Male Spade Probe
Specifications
•Power Supply: 11 - 18 VDC
•Output Current: 0 - 40A (high side/low side drive)
•Current Display: 0 - 40A (0.1A resolution)
•PWM Rate: 15kHz
•PWM Range: 0 - 100% duty
•Over Temperature: Heat Sink > 120° F (output disabled)•Over Current: > 40A (output disabled)
•Continuous On Time: 2 minutes@ 40 amps, 10 minutes @ 20 amps, 25 minutes @ 10amps, 30 minutes @ 5 amps
