Power Probe 4 (PP401AS)

A tool for technicians of all levels. The Power Probe IV is the same size as the Power Probe 3 but includes multi-meter functions, advanced diagnostic test modes, an easy to read color LCD display and a rugged water and dust resistant housing.

Use the Power Probe IV on 12 to 24 VDC electrical systems:
• Activate Components With Positive & Negative Source Voltage
• Sensor Testing
• Fuel Injector & Signal Tracing
• Glitch Capturing

Large Multi-Line Color LCD Screen

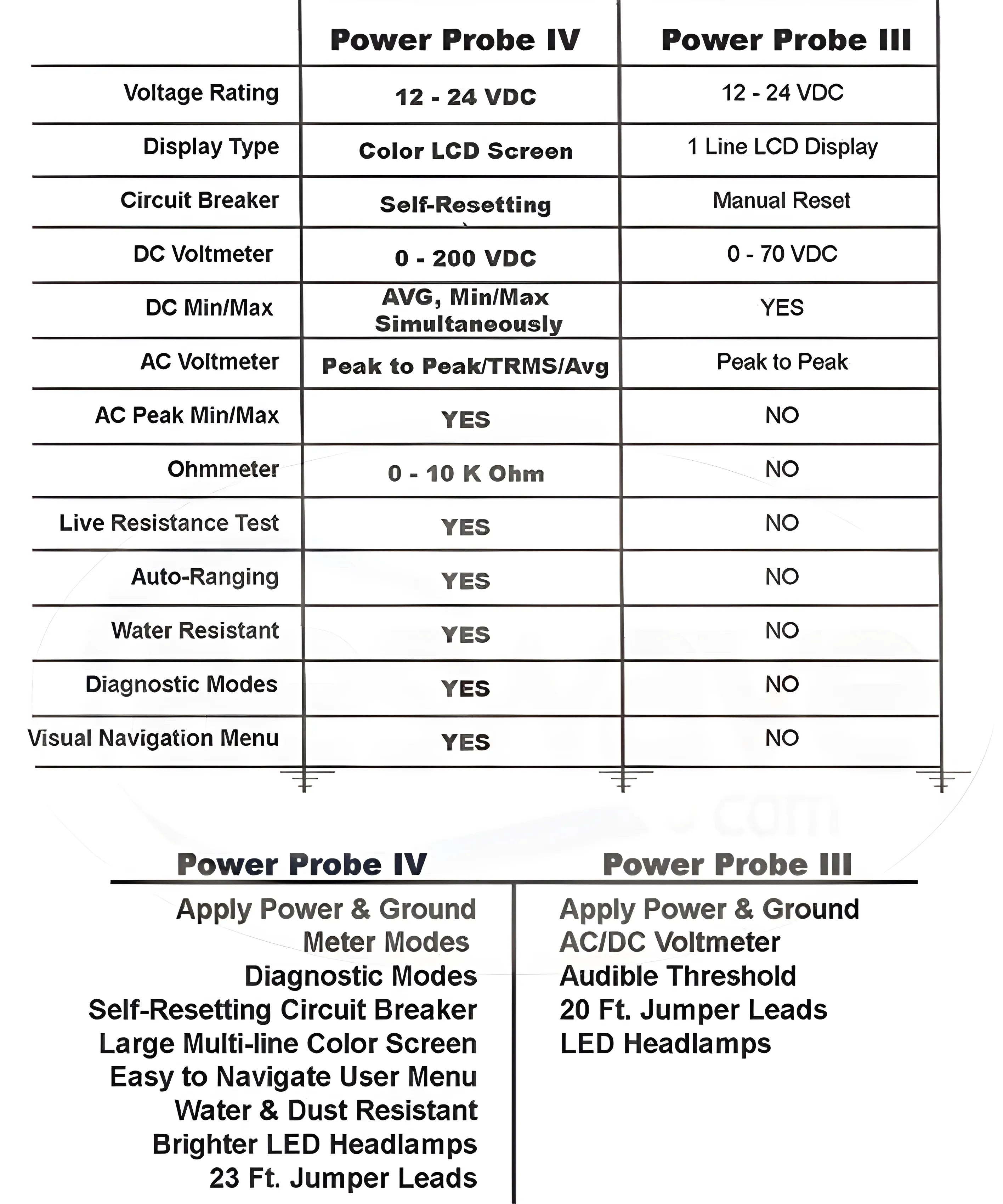

• Brighter screen, higher contrast visibility than the Power Probe 3
• 40% larger color screen than the Power Probe 3
• Simultaneously provides multiple data points on the same screen.
• View all the readings you need at once

Advanced AC/DC Voltmeter
• 50μs testing AC and DC
• Min/max voltage \ reading capture
• Resistance Testing Live & Unloaded
• Load Testing (Power Feed Test)
• Field replaceable switch & circuit breaker
• .001 ohms - 100k ohms accuracy
• Load test circuits
• Circuit health check
• Circuit Breaker Auto Reset

Meter Modes
The Power Probe IV has 8 different test modes available
• DC Voltmeters: Glitch Capturing
• AC Voltmeter - TRMS, Average & AC Peak M in/Max
• Frequency and Duly Cycle (Hz)

The Power Probe IV has 8 different test modes available:
1. VDC: For DC voltage measurements. This is the default mode on startup. Max. 200 VDC

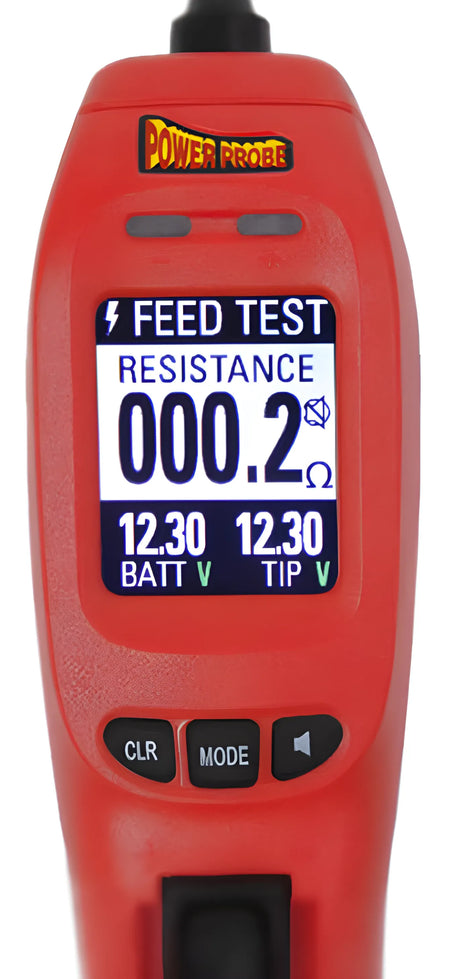

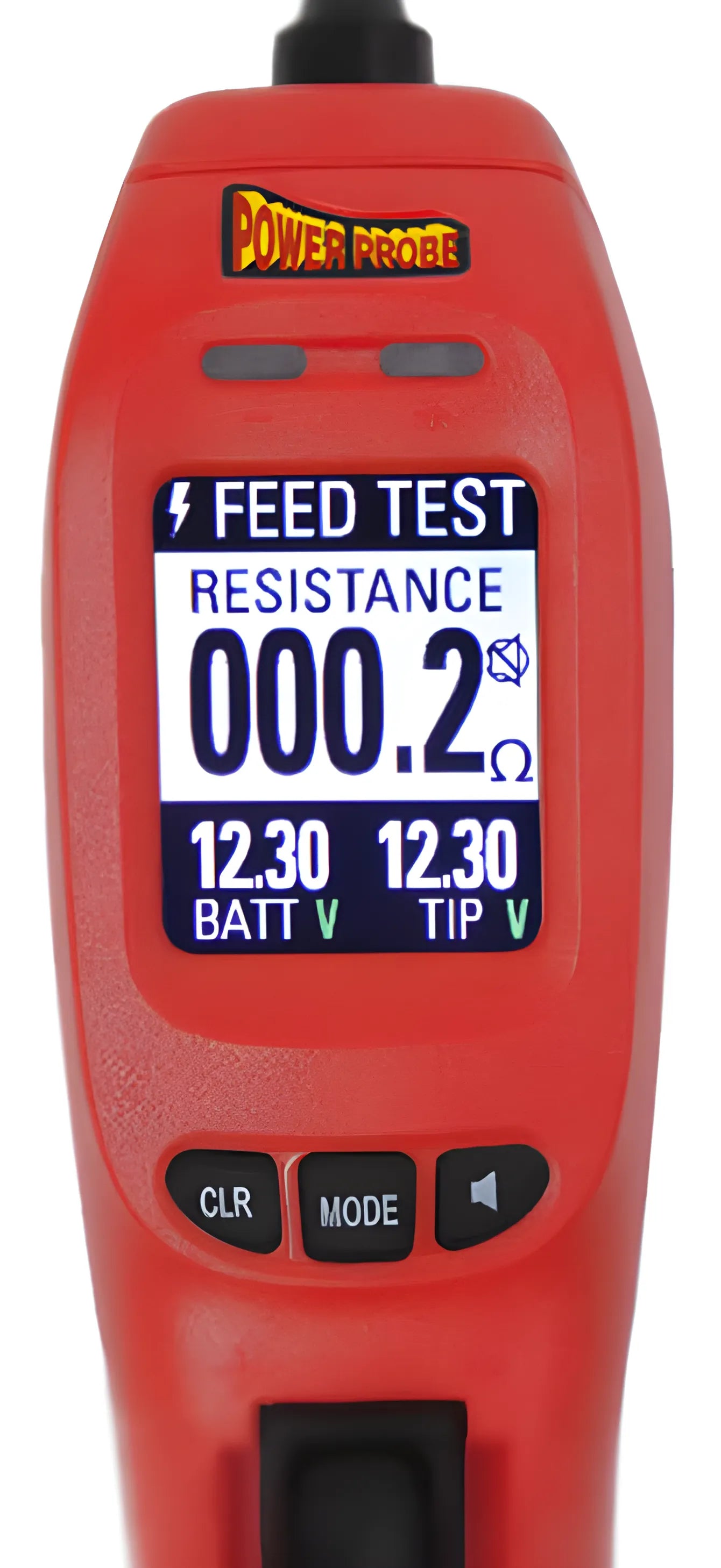

2. FEED TEST: For measuring loaded resistance in Ohms and display voltage drop.
3. AC RMS: For AC voltage measurements. Displays a True RMS averaged AC voltage. Max 200 VAC.
4. P-P: For AC voltage measurements. Displays Peak to Peak AC voltage. Max 200 VAC.
5. Hz FRQ CTR: For measuring signal Frequency. Also displays + and - Pulse Width.
6. FUEL INJ: Tests Fuel Injectors and Injector circuits.
7. DRV TST: Supplies safe voltage for testing computer driver circuits.
8. PPECT: Detects the open circuit signal from Power Probe ECT2000 to assist in locating opens.

Easy Resistance Testing: Live & Unloaded
• Read a Circuit’s Resistance with Live Voltage
• Read a Circuit’s Resistance to Hot or Ground

Diagnostic Modes
• Fuel Injector Tester: Test Injector & CM Health
• PCM & ECM Drner Tester: Test Module Dthers,
• Signal Tracer: Trace ECT Open/Circuit Signals

Built For Shop Life
• Water & dust resistant housing
• Loud indicator tones can be heard in noisy shops
• LED Flashlight always on

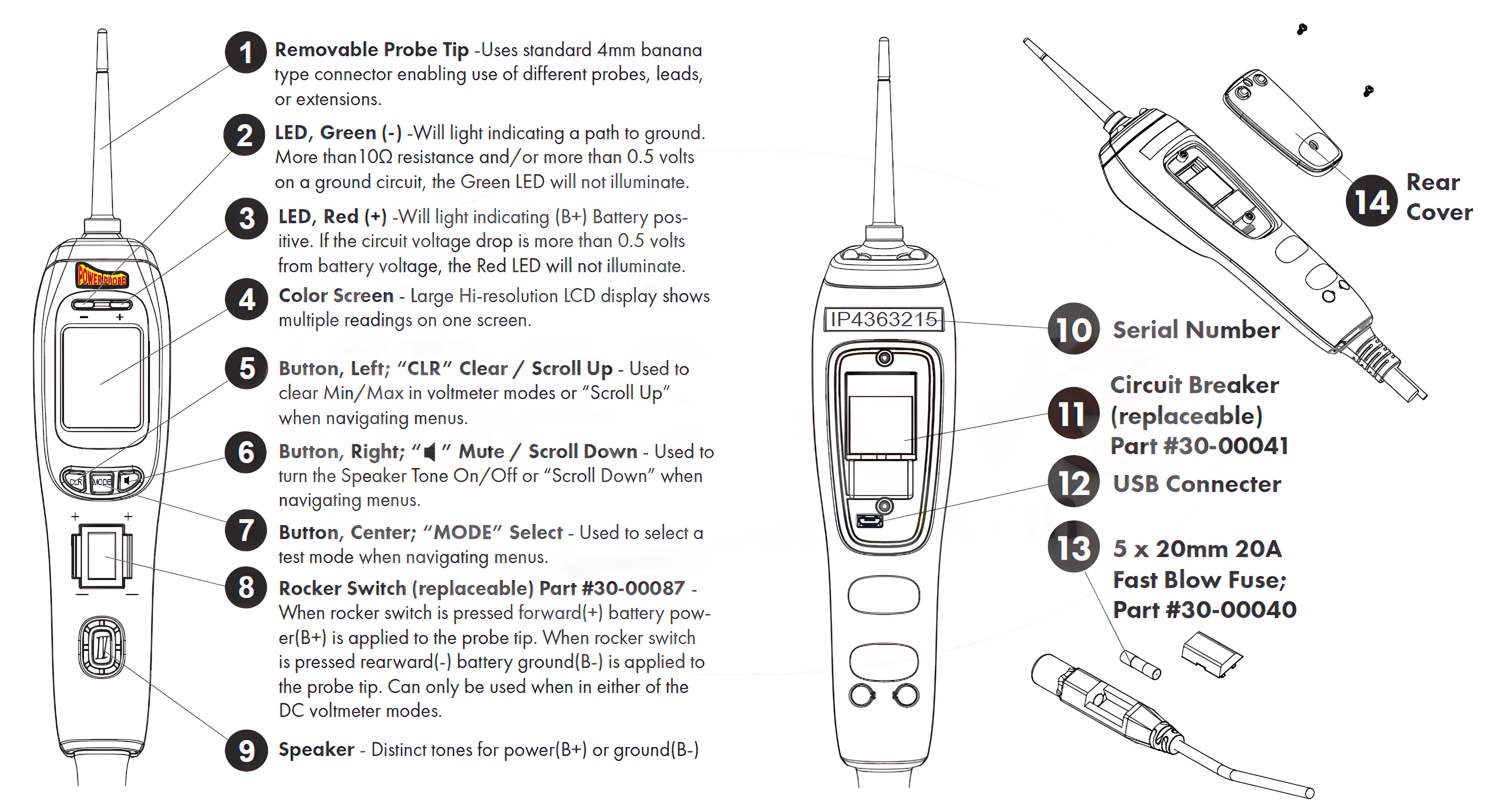

• Field replaceable switch & circuit breaker

Self-Resetting Circuit Breaker
• Self-Resetting Circuit Breaker For Fast and Easy Circuit Protection During Testing

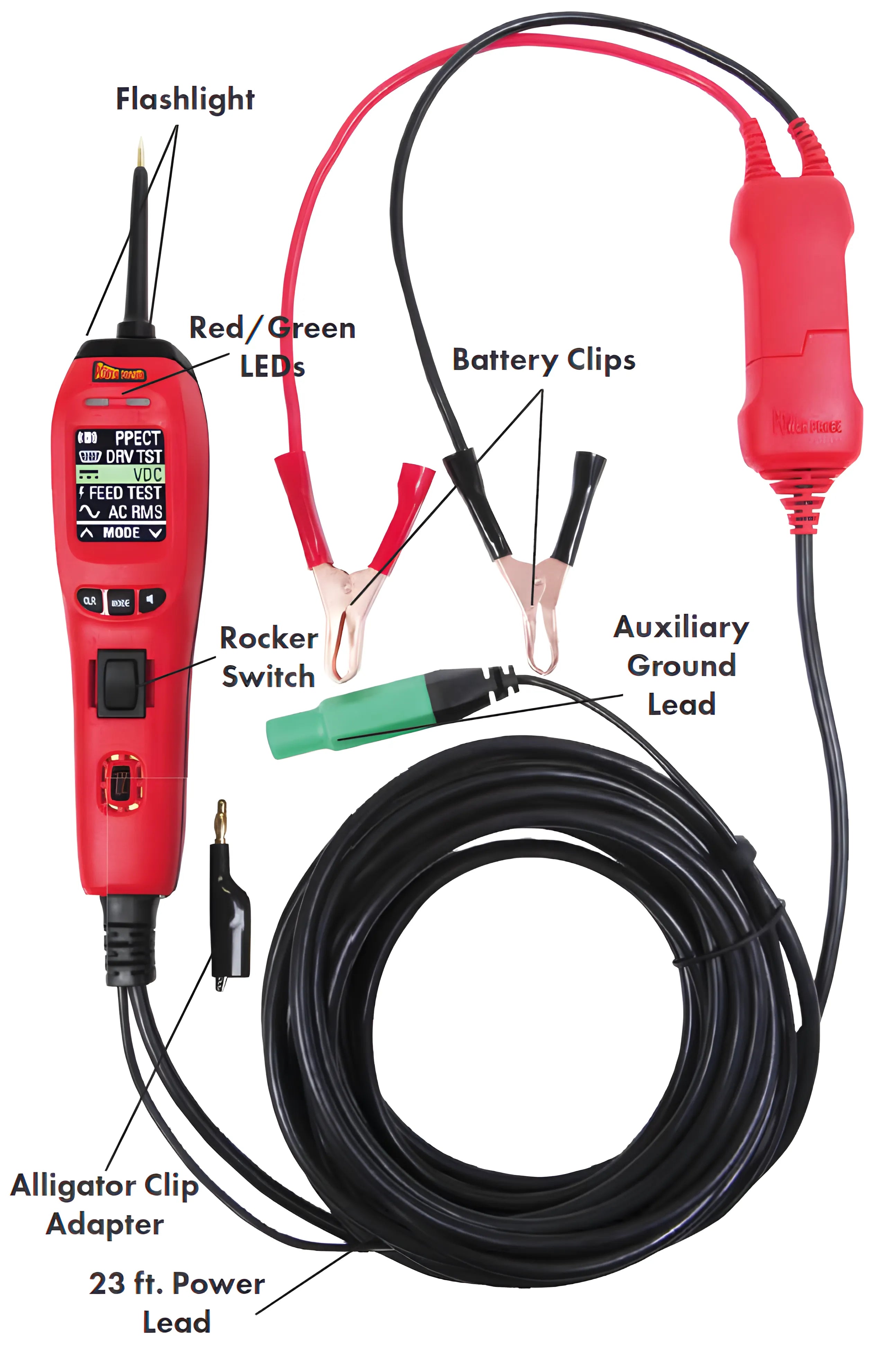

Power Probe IV contents
• Power Probe IV unit
• 23ft power lead with Auxiliary Ground Lead and Y-connector to Battery Clips
• 4mm bannana jack for optional accessories
• Alligator Clip Adapter
• Case (hard shell)
