Mastering The Labscope
Jerry "G" Truglia and Ralph Birnbaum team up again!
This time the creators of the Getting to know... series turn their focus to the automotive lab scope.
Mastering The Lab Scope will familiarize you with the technology of the scope, the display, the settings, the connections, the accessories and applications of lab scopes for automotive testing.
It has 92-action packed pages filled with:
* 90 illustrations, photos and charts (black and white)
* technically competent text which is concise and easy to read that make this book the ulitmate user's manual. Topics include:
Scope Essentials
Scopes compared to other testers, Display structure, Sampling, Triggering

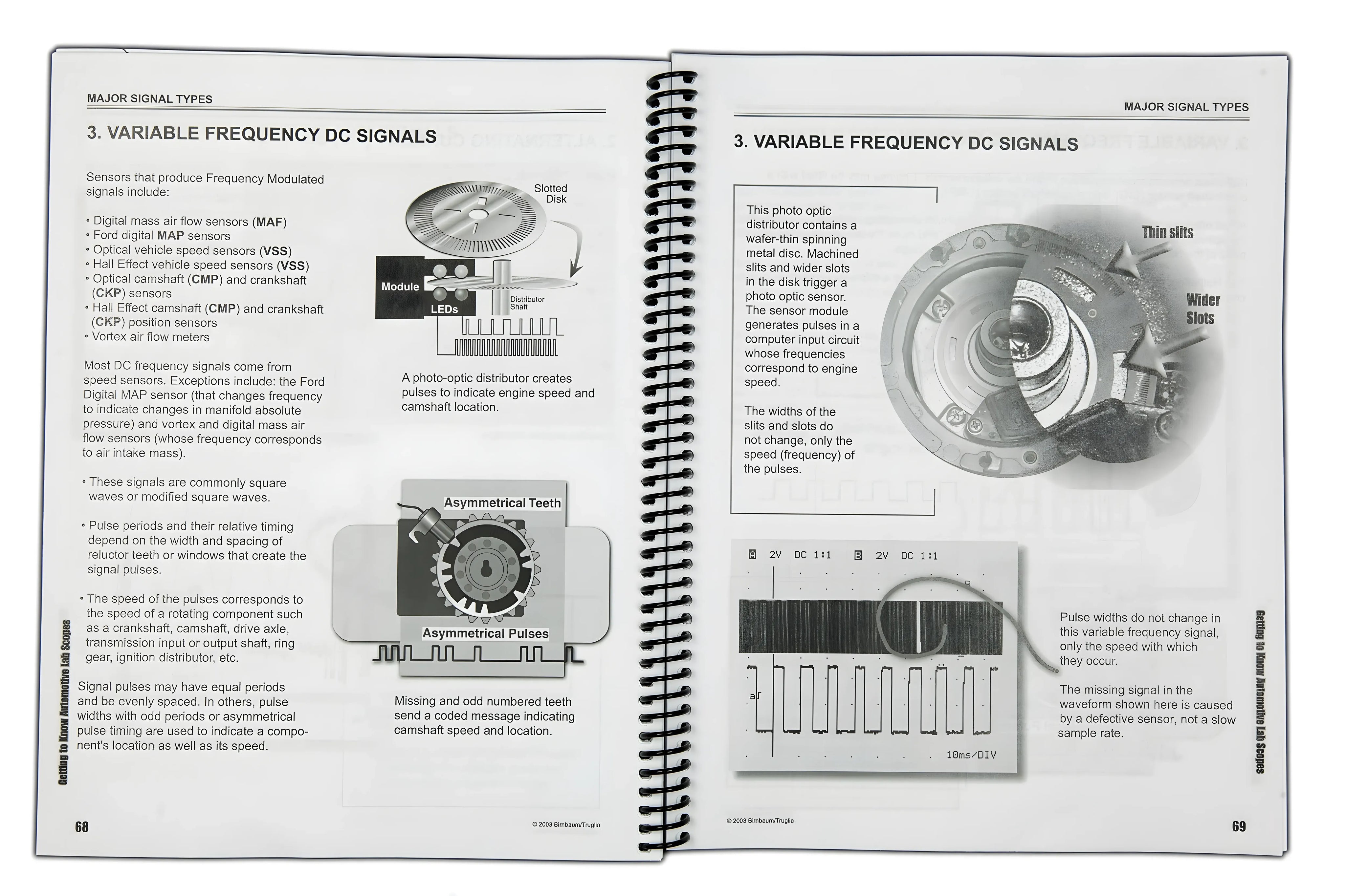

Click image for a sample page:
Controls, Connections, Channels, Coupling
The obvious and not so obvious features of scopes and accessories that affect testing
Time and Voltage Settings
How to use and understand screen setup to get the information you need
Transducers
Amp, pressure and voltage probes
Major Signals Types
DC, AC, Fixed pulse width, Variable pulse width

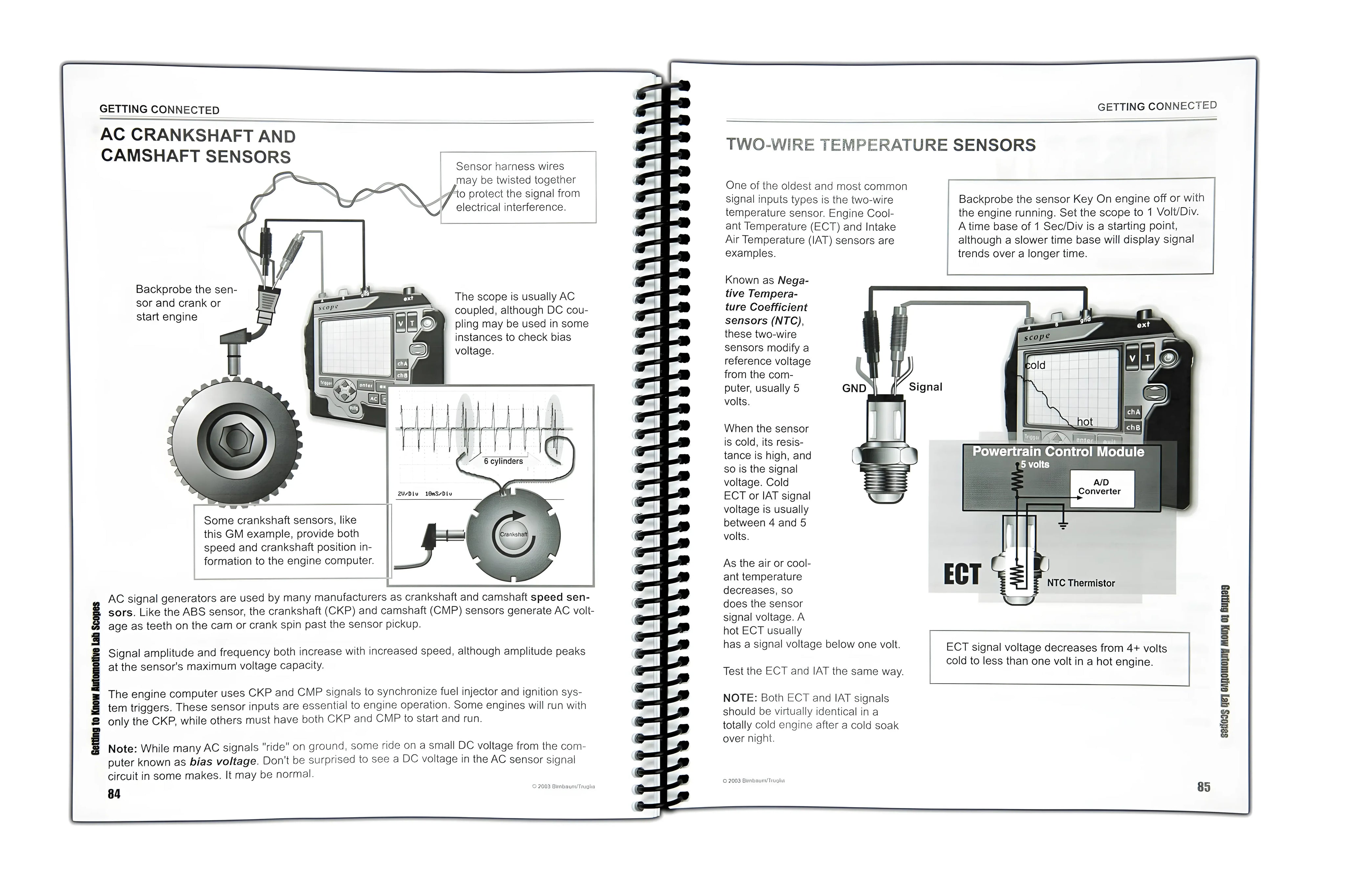

Click image for a sample page:
Getting Connected
Test connections and tips for diagnosis
Glossary
Each chapter features a mulitple choice quiz.
NOTE: This book is not a waveform reference manual!
