GODIAG GD100+ OBD2 Breakout Box

More than a simple OBD-II breakout box, the GODIAG GT100+ is an OBD-II breakout box designed specifically for off-board module and key programming and features a display readout for both voltage and current draw through the box.

Each OBD-II pin has a 4mm safety banana socket and a colored LED to indicate status display:
- Green on pins 4/5 indicates ground
- Red on pin 16 indicates power
- Blue (flashing) is for communication lines
Test leads and probes with 4mm banana plugs will connect directly into the 4mm safety sockets.

The front panel has 3 switches, a master power switch for the box and two separate 12V outputs for powering modules through the DB25 jumper cable.

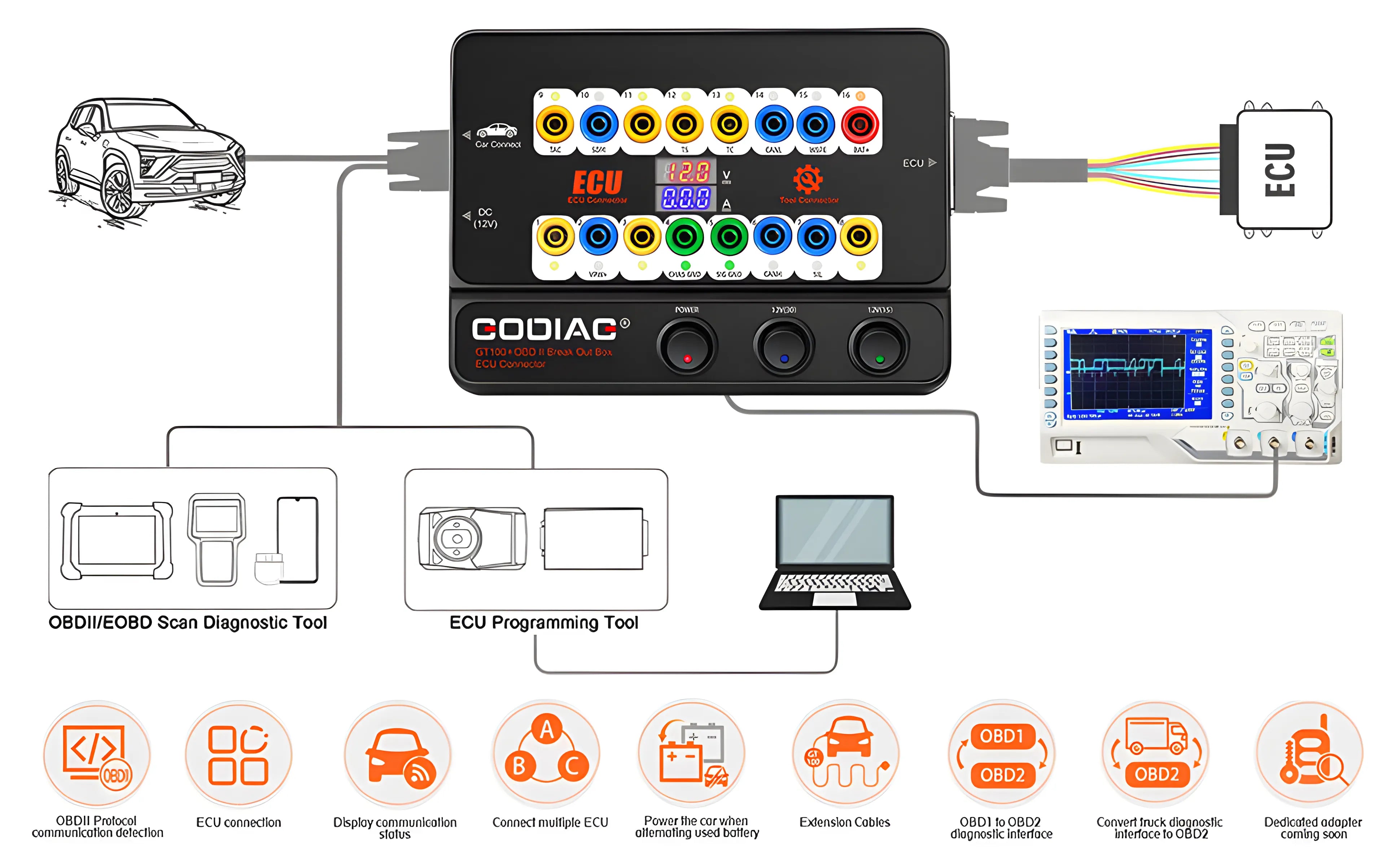

The GT100+ features a unique DB25 jumper cable which allows technicians to connect to and power up one or more modules when performing module diagnostics, programming or immobilzer work. AESwave has customized this cable to include 4mm banana plugs that makes adapting to terminal connections easy, especially when combined with the uTest Advanced Terminal Kit or similar breakout leads. Also, the DB25 jumper cable features 37 colored coded and labeled leads that are grouped together by function to make it easier to find the correct one.

Use the DB25 jumper cable to connect your scan tool’s OBD-II cable to any OBD-I or manufacturer-specific diagnostic port.

Using the included AC adapter, the GODIAG can also be used as an auxiliary power supply and memory saver during battery service or replacement.

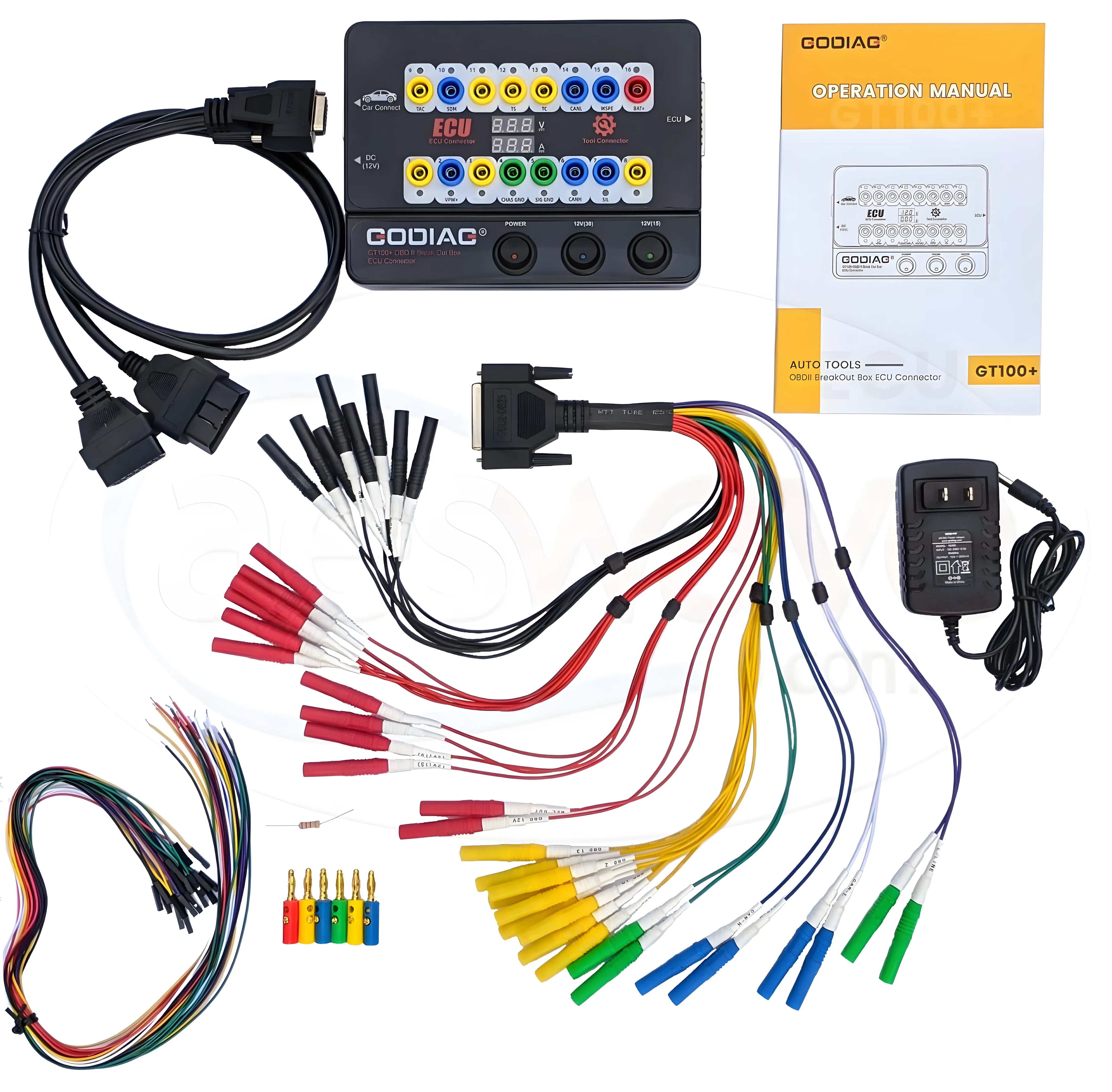

Contents
• GODIAG GT100+ Breakout Box
• OBD 2-in-1 extension cable (4.5-ft long)
• DB25 custom-colored jumper cable (17-inches) with 4mm banana plugs and dividers
• 6 banana plug sockets
• 120 ohm resistor for CAN bus termination
• 24 jumper wires (Dupont 2.54mm female to open end)
• 12VDC power supply
• User Manual
• 1 year warranty
