Waekon 76564 - COP Interceptor

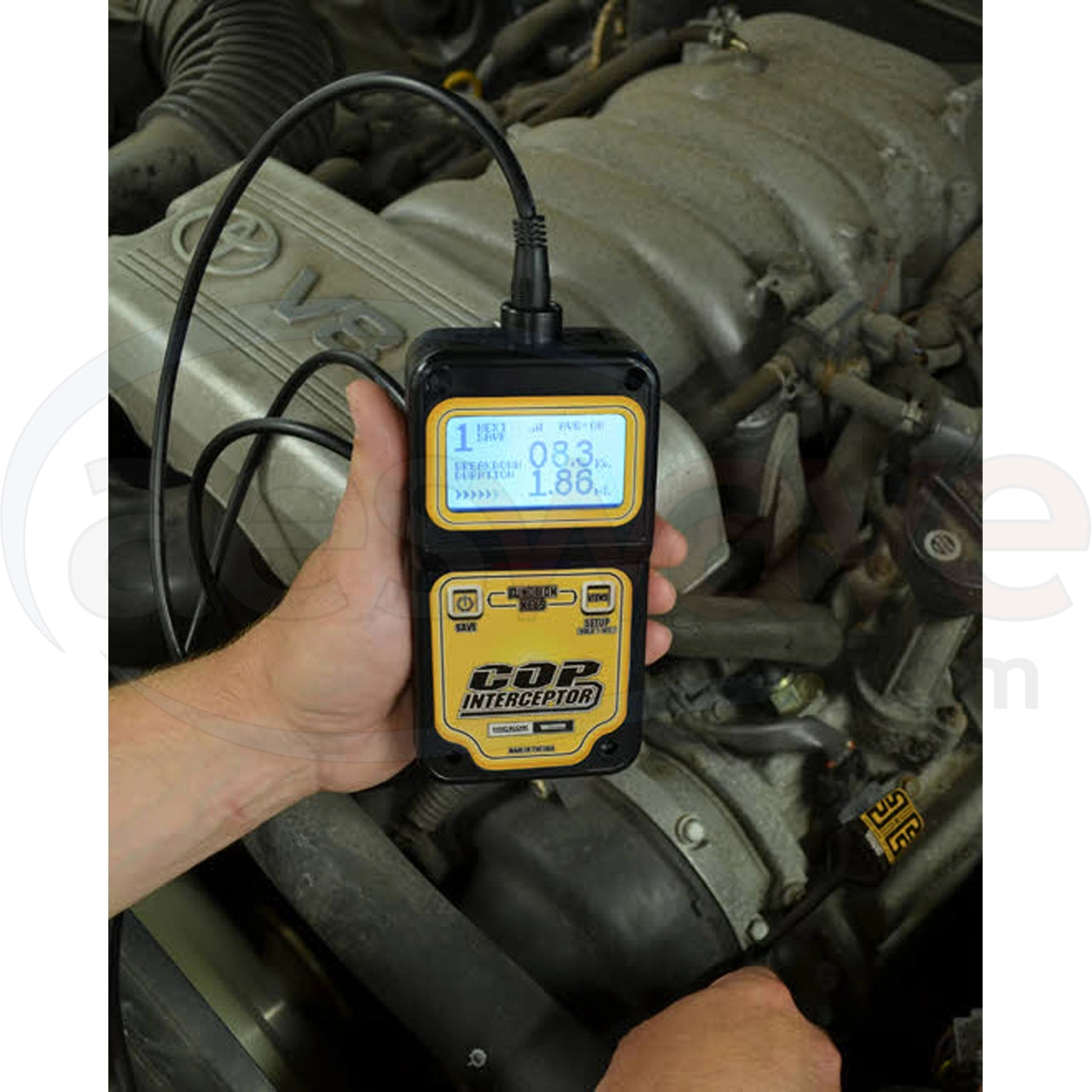

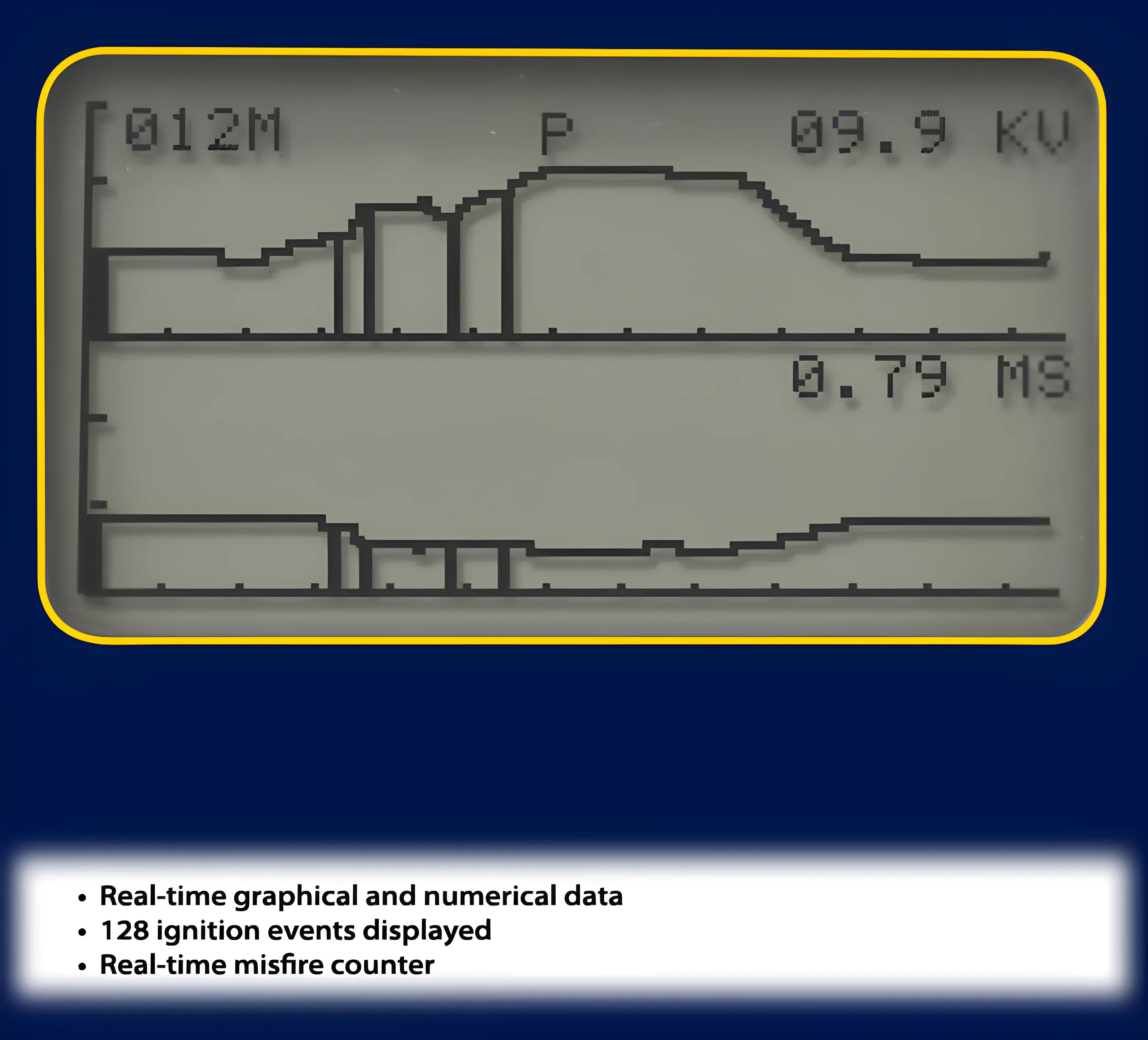

The COP Interceptor measures, displays and saves each coil-on-plug’s secondary ignition data in real-time for detailed ignition analysis. View trend data for visual verification of an intermittent misfire that may not set codes.
• Simple to operate: only 2 buttons — easier than an oscilloscope.
• Works on multiple styles of COP ignition systems.
• 9" probe plus 2-1/2" bendable arm.
• COP removal not required
• Misfire counter and indicator
• Auto-set gain calibration

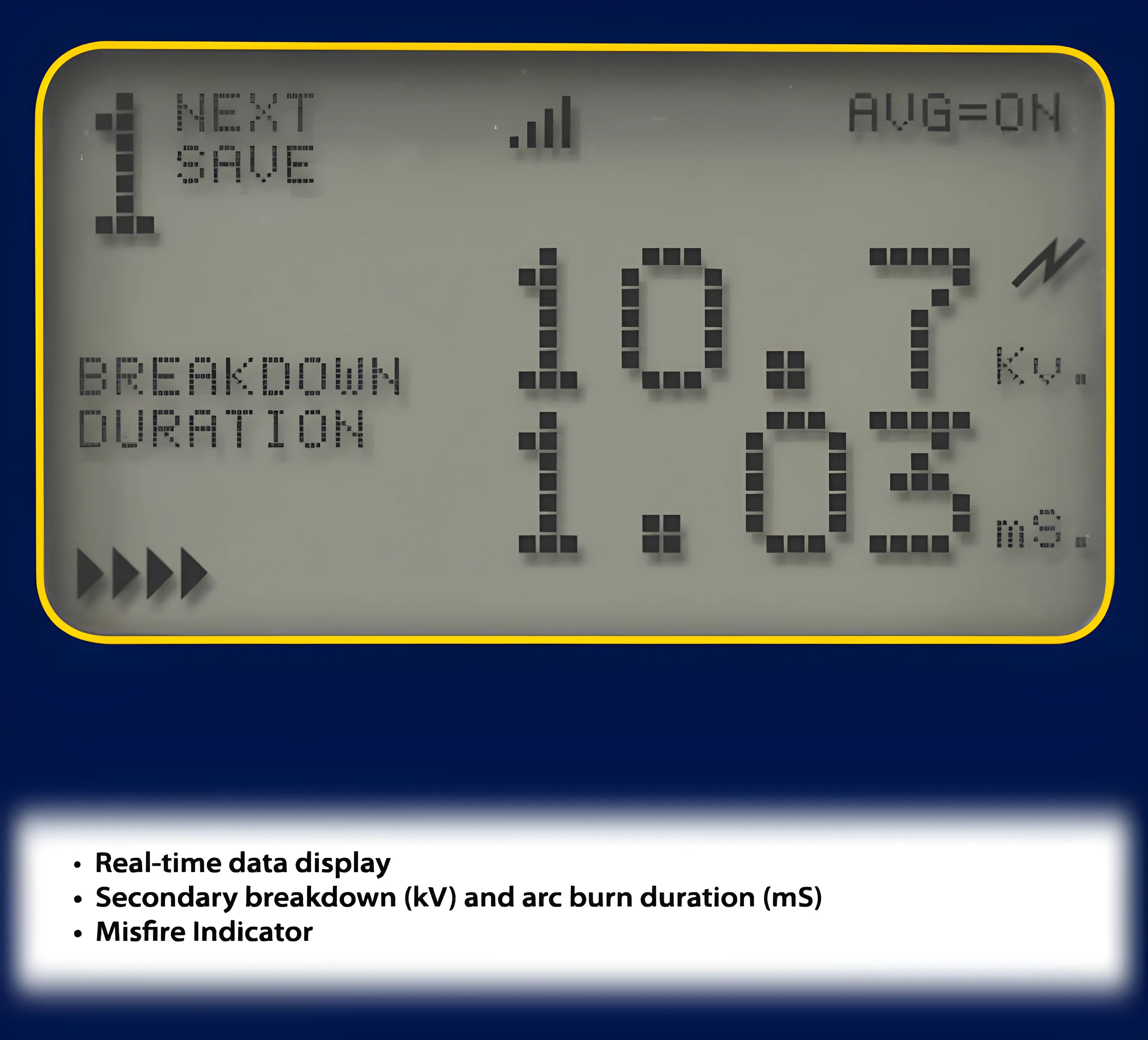

• Real-Time kV and mS
Benefits
- Simple to operate while providing advanced ignition data
- Catch some intermittent problems that don’t set a Diagnostic Trouble Code (DTC)
- Quickest COP ignition under true operating conditions
- Calibrates itself to provide the most accurate data for multiple styles of COP ignition systems
- Measures secondary circuits breakdown voltage and arc/burn duration time individually as they happen
Specifications
Breakdown Voltage Measurement Range: +/- 30kV
Arc Duration Measurement Range: 0.3 - 5.0 mS
Resolution: 0.1kV and 0.01 MS
Multi-Strike Ignition: First V event, Last mS events are displayed
Misfire Detection: Functional from 240-4000 RPM
Voltage Supply: 9V Battery (8-10 VDC)
Kit Includes

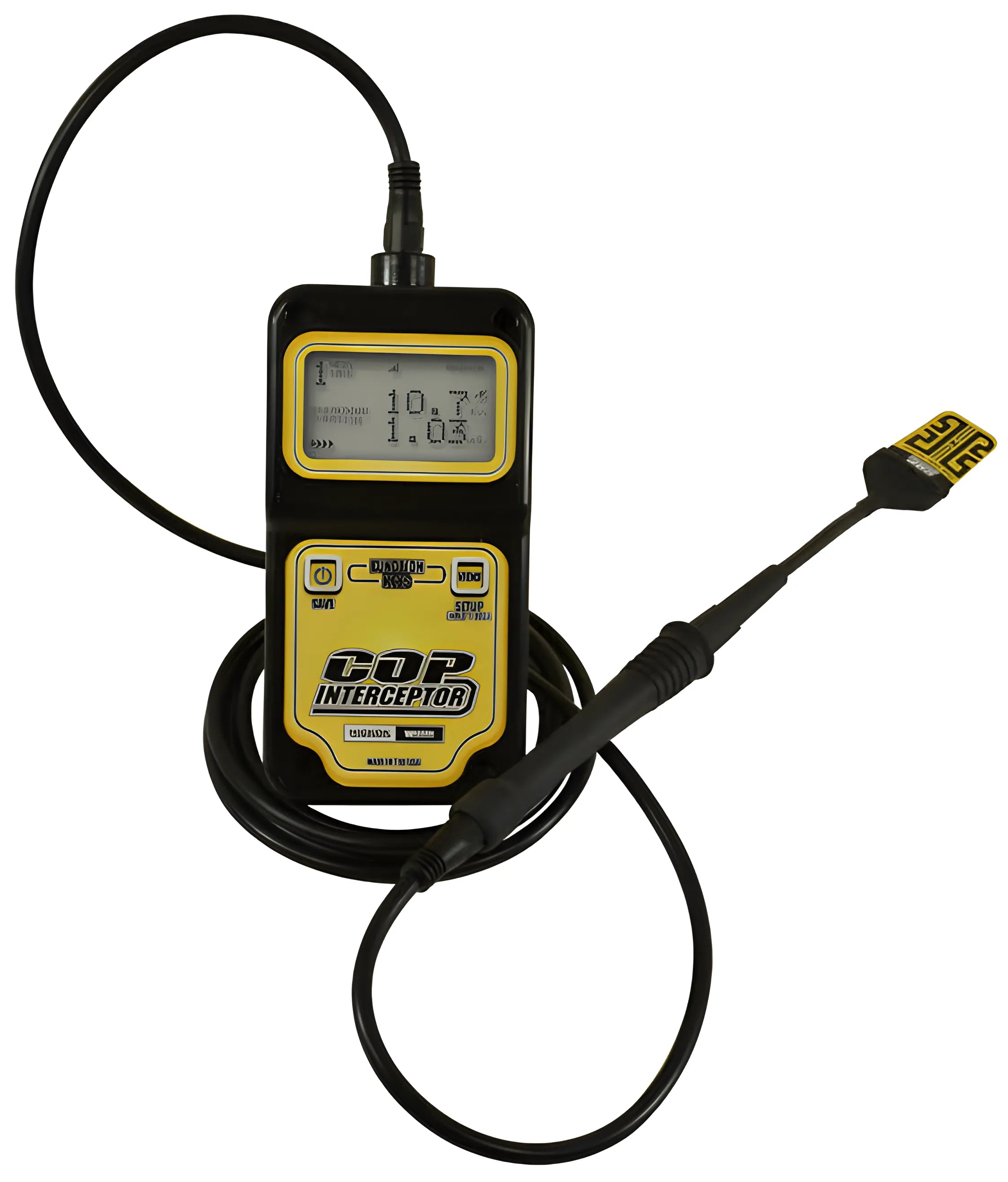

- COP Interceptor
- 9” Probe plus 2-1/2” bendable arm
- High sensitivity receiver pad
- Low sensitivity receiver pad
- 9 volt battery
- Soft zipper case
- User Manual
