Pico PQ330 – Breakout Lead Kit B

For Voltage and Current Testing on Multi-Pin Engine Sensors | Includes 4 Connector Types

The Pico PQ330 Breakout Lead Kit B gives technicians safe and direct access to sensor and actuator signals in the engine compartment. Designed for Volkswagen, Audi, and other European applications, these breakout leads connect inline with existing harnesses to provide clean 4mm banana plug access for voltage and current signal testing.

Perfect for use with PicoScope automotive oscilloscopes, this kit is essential for capturing accurate waveforms from fuel injectors, actuators, and multi-pin sensors.

Key Features

• Inline connection to OEM wiring harness—no cutting or piercing

• 4mm banana plug outputs allow easy hookup to scope leads

• Access individual wires to probe with current clamps or voltage probes

• Color-coded pins (Green = Pin 1, Red = Pin 2, etc.)

• Designed for precision signal access without disturbing system function

• Requires Pico TA125–TA128 BNC-to-banana test leads for PicoScope input

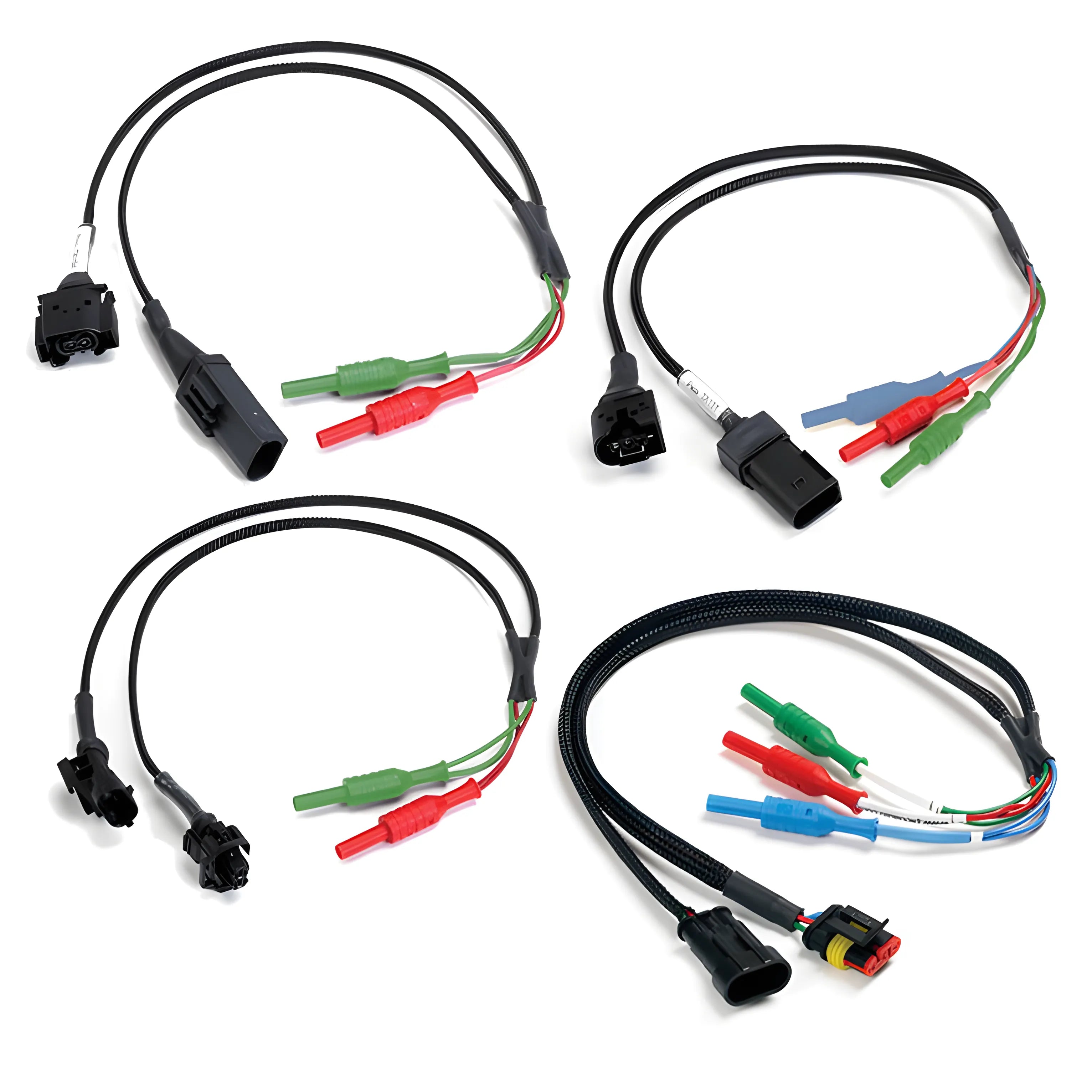

Kit Contents

• TA190 – 2-pin ACS breakout lead

• TA191 – 3-pin Kostal breakout lead

• TA194 – 2-pin Kostal breakout lead

• TA267 – 3-pin AMP Superseal breakout lead

Important Notes

• Always verify signal pin assignments using wiring diagrams before connecting.

• Color guide for lead pins:
   • Pin 1 – Green
   • Pin 2 – Red
   • Pin 3 – Blue
   • Pin 4 – Yellow
   • Pin 5 – White
   • Pin 6 – Black

• Incorrect connections can damage your oscilloscope—use caution and confirm pin function.
