WPS600c Pressure Transducer Kit
With high accuracy and a wide measuring range, the Pico WPS600 Hydraulic Pressure Transducer connects to your PicoScope for convenient analysis and diagnosis of pressurized systems, including hydraulic systems.
• Accurately measure up to 600 bar (8700 psi)
• two pressure ranges
• Ultra-fast 100 microsecond response time (0% to 90% of full scale)
• Internal rechargeable LiPo battery
• Industry Standard M16 x 2 Test point connector
• Auto zeroing
• High noise immunity
• Temperature compensated
• Durable housing
Not for continuous operation!

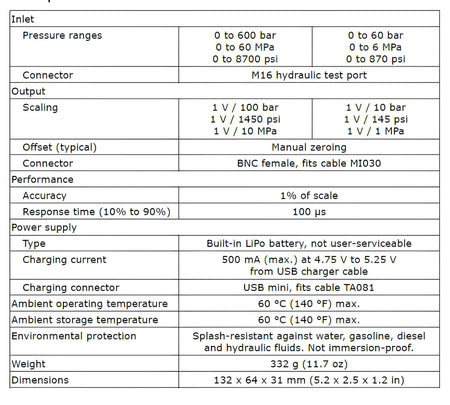

Pressure Ranges
The two pressure ranges of the WPS600 allow accurate measurement and diagnosis of permanent and non-permanent automotive and industrial hydraulic systems. Each range offers accuracy of 1% of scale and a 100 µs response time.
Range 1: 0 to 600 bar (0 to approx 8700 psi) for high-pressure tests in hydraulic systems.
Output scaling is 1 V/100 bar (1 V/1450 psi)
Range 2: 0 to 60 bar (0 to approx 870 psi) for low-pressure hydraulic systems and oil pumps.
Output scaling is 1 V/10 bar (1 V/145 psi)
Compatible Fluid Types
The WPS600 is designed for use with hydraulic fluids. Do not use with any other type of liquid or gas.
Typical Uses
- Hydraulic pump performance
- Hydraulic valve switching activity
- Hydraulic pressure control valve performance
- Hydraulic pressure decay
- Residual hydraulic pressure
Contents
• WPS600 pressure transducer with lithium polymer (LiPo) battery
• Carrying case
• USB to mini-USB charging cable 2 meter long
• BNC to BNC cable 1 meter long
• User’s Guide
The WPS600 complies with the following standards:
- Electromagnetic Compatibility (EMC) Directive 2004/108/EC
- FCC Part 15
- Pressure Equipment Directive 97/23/EC Article 3.3
