Professional Breakout Lead Set

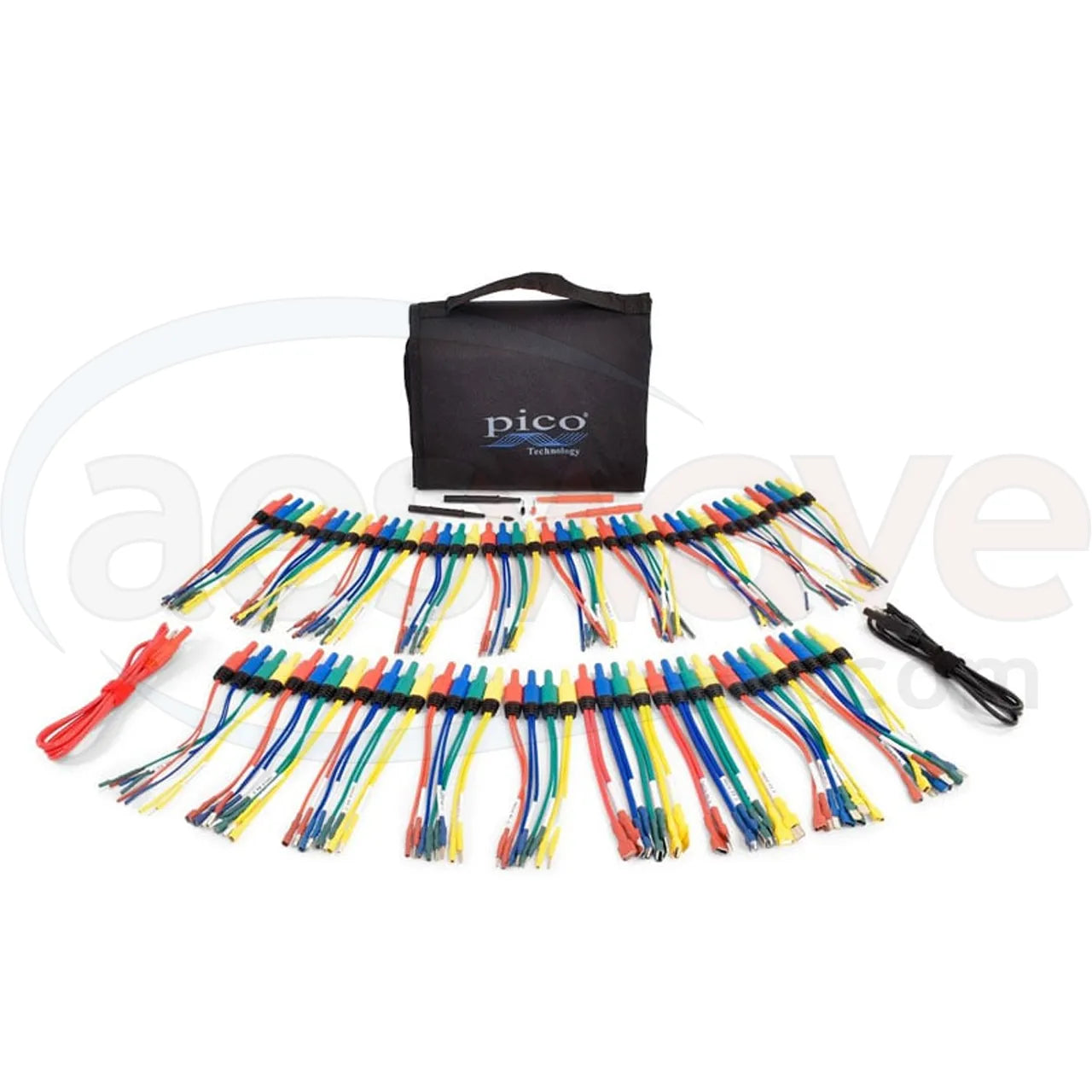

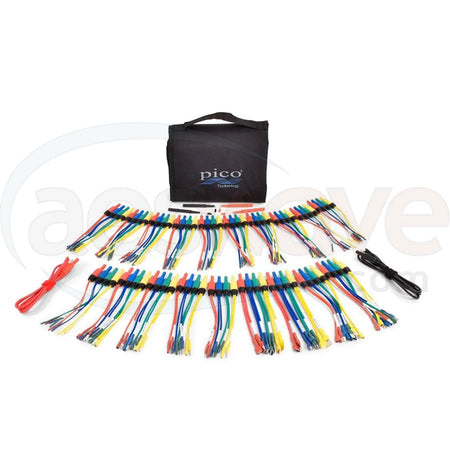

The Pico Professional Breakout Lead Set (TA514) includes breakout leads for 19 different terminal sizes, 4 backprobes and 2 jumper leads.

For each terminal size, the kit includes 4 breakout leads of different colors, with each lead including both male and female connectors attached to one 4mm banana socket and are 7-inches long.

Each breakout lead features a slot & tab so they can be attached to any other terminal lead.

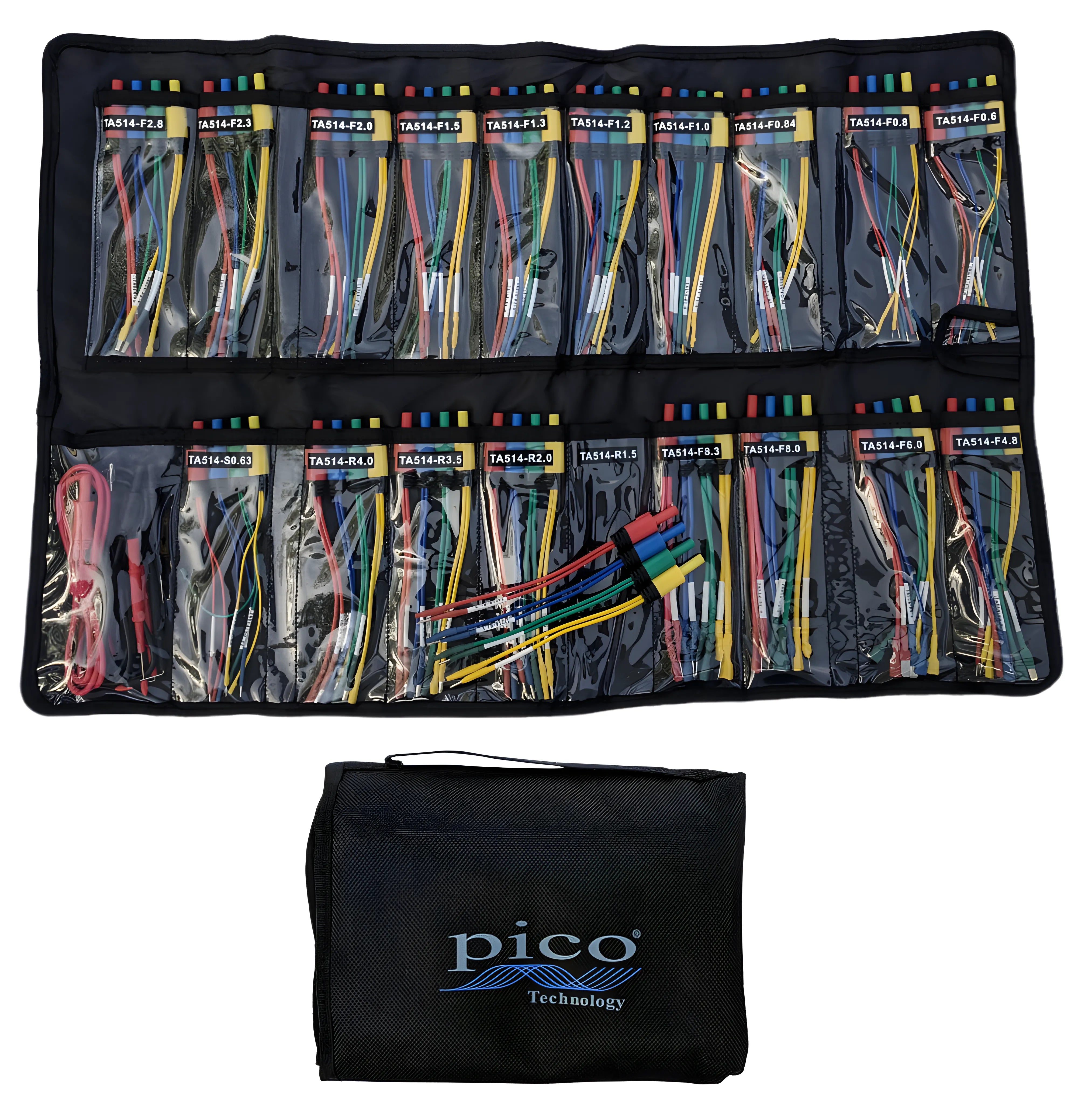

All the items are stowed in a compact 9" x 7" x 3" heavy-duty canvas pouch that folds out to 26" x 17". Each set of breakout leads are individually stowed in snug plastic dividers and are clearly labeled.

The pouch has two handles: one across the top pouch when folded and a small one on the end when opened.

The breakout leads include 14 different sized FLAT blades.
- 0.60mm
- 0.80mm
- 0.84mm
- 1.00mm
- 1.20mm
- 1.30mm
- 1.50mm
- 2.00mm
- 2.30mm
- 2.80mm
- 4.80mm
- 6.00mm
- 8.00mm
- 8.30mm

Also includes 4 different ROUND sizes:
- 1.50mm
- 2.00mm
- 3.50mm
- 4.00mm

And one SQUARE:
- 0.63mm

Accessories includes:
- 2 Jumper leads
- 2 backprobes, Straight
- 2 backprobes, 90-degrees

Sorry! The individual pieces are not available for purchase separately.

Easy to Use
Connect the breakout lead into the existing cable loom. Then, to read voltage from the numerous sensors in the engine compartment connect your lab scope test leads to the breakout lead.

Typical Uses
Any measurement taken is only as good as the connection you make to the device under test. The 6-way universal break out leads will connect to a multitude of vehicle components regardless of connector arrangement. This will ensure you have a 100% successful connection, removing any doubt from your test results. A broadband oxygen sensor test is a typical example where multiple measurements are required for both voltage and current. The 4mm banana terminals introduce a simple and secure voltage measurement point for your test lead, while a current clamp can be applied to any break out lead to monitor current. The break out leads can also confirm the integrity of the harness/component “terminal tension” by inspecting for “grip” of the breakout lead terminal inside the vehicle connector.

Inspection of terminal pin contact for any matching connector

O2 sensor measurements for voltage and current (Including broadband)

Actuator measurements for voltage and current

Sensor measurements for voltage and feedback

“Open” and “Short” tests of circuits
