MaxiCheck mx808 Scan Tool

Update: The latest update has given the MX808 some bidirectional controls. This includes things like EVAP tests, Active Tests, and other individual component controls.

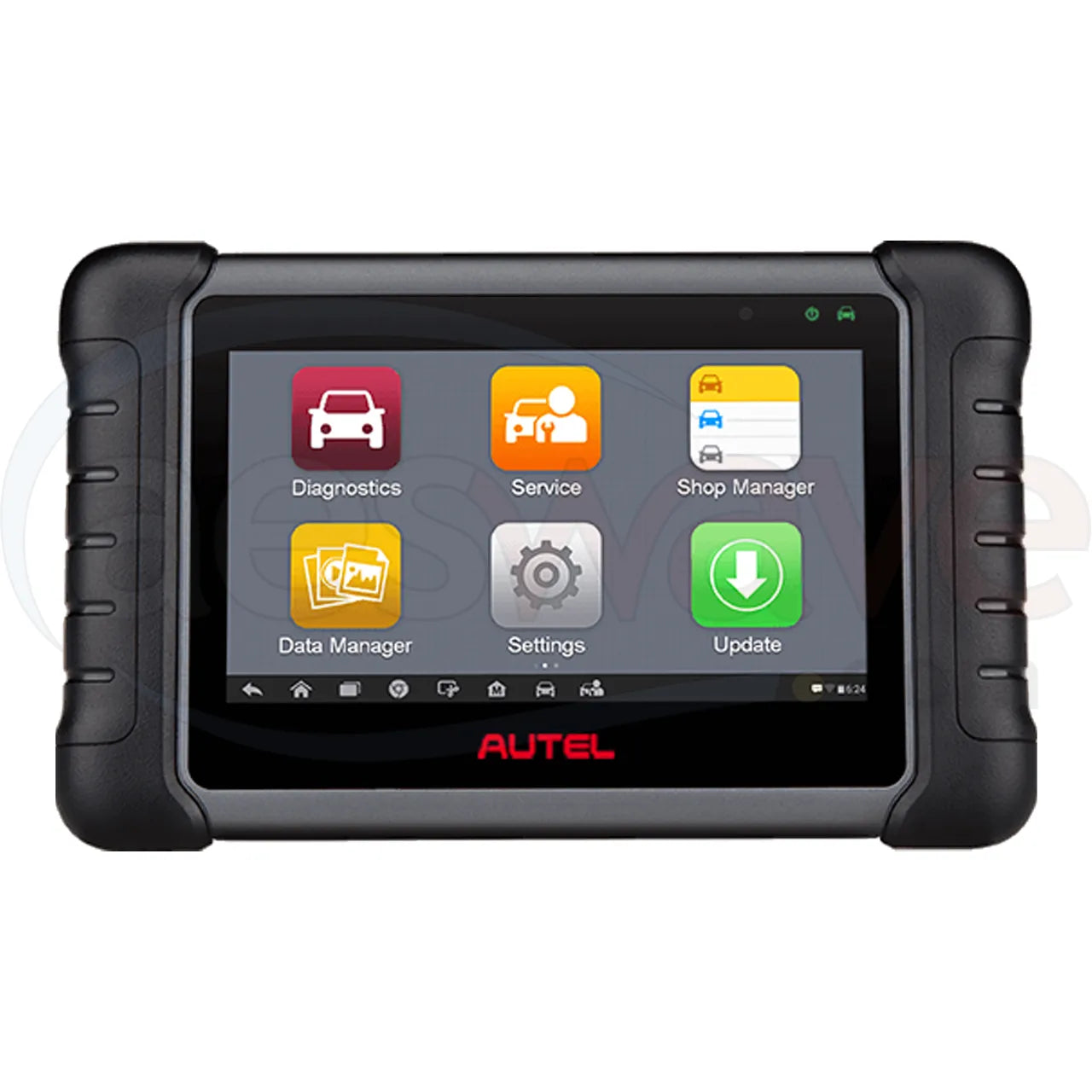

When it comes to ultra-portability, MaxiCheck MX808 is your perfect companion. Installed with a fast quad-core processor, MX808 offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless through a 7-inch LCD touch screen that displays at 1024x600 quality.

Use MX808 to check and erase codes, view live data, perform basic service functions and active tests on all modules for vehicles 1996-to current. This is a great tool for DIYer as it offers the advanced features of Autels scan tools at an affordable price.

CAN-FD coverage is not included. If you need to work on 2018+ Ford or 2020+ GM vehicles, purchase the Autel CAN FD adapter or consider buying the Autel MX900.

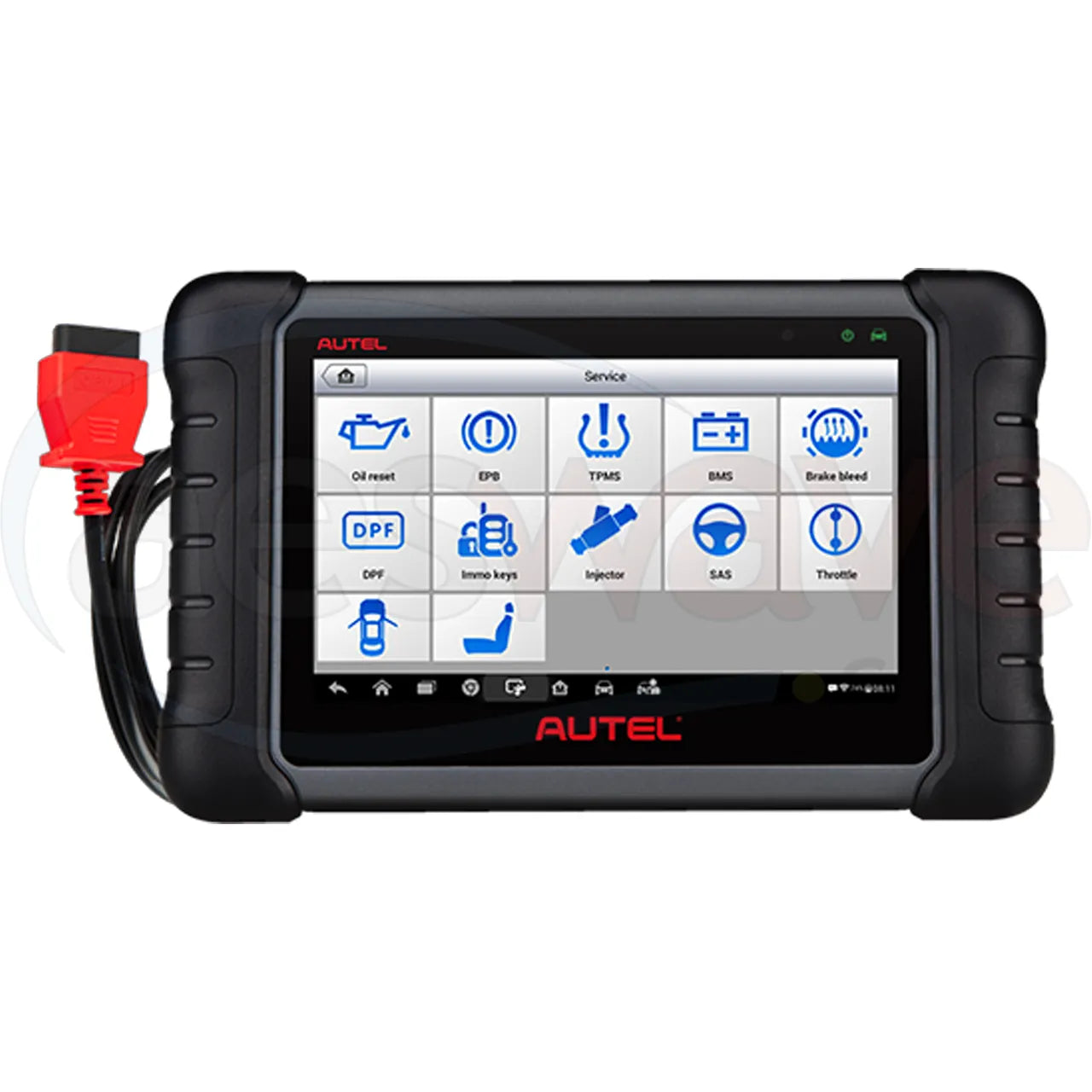

The Service icon offers tests and functions specific to certain service needs, i.e. electronic parking brake, battery maintanance, steering angle reset etc.

The MX808 is cabled to the vehicle. It does not have any bluetooth VCI capability.

The MX808 offers wireless printing via wifi like a MaxiSYS, however, it is not a full function scanner like a MS906MAX or ms909. It lacks some bidirectional controls and the ability to code/program modules.

Systems
• POWERTRAIN SYSTEM - Read / Test / Clear trouble codes all modules
• BODY SYSTEM - Read / Test / Clear trouble codes all modules
• CHASSIS SYSTEM - Read / Test / Clear trouble codes all modules
• INFO & COMMUNICATION - Read / Test / Clear trouble codes all modules
• Auto VIN Detection
• Auto Scan all major systems
• Live Data to test individual systems
• Communicate with door modules, body controllers, electronic modules
• Support all OBDII protocols and 10 test modes including Freeze Frame, Enhanced Mode 6, Vehicle Info, I/M Readiness, On-Board Monitor and Component Tests
• Graph, record and playback freeze frame data

Bi-Directionals
The MX808 now has bi-directional controls. Autel has added Active Tests and System Tests to the MX808s software. Check Autel's scan tool coverage site for more details: https://www.autel.com/vehicle-coverage/coverage2

Service Functions
The MaxiDiag MX808 Pro provides the following functions for most modern vehicles:
1. Oil Reset Service
2. EPB Service (Electronic Parking Brake)
3. BMS (Battery Management System)
4. SAS Service (Steering Angle Sensor)
5. DPF Service (Diesel Particulate Filter)
6. TPMS Service (Tire Pressure Monitor System)
7. IMMO Service (Immobilizer)
8. Brake Bleed
9. Injector
10. Throttle
11. WIN DR ROOF
12. Seats
Page 43 of the User's Manual (PDF page 50) has more details about each service function.
Want fewer service functions, take a look at the MaxiDiag MD808p.

Will it work do ABS or AirBags or some other particular test on my car?
The most honest and most accurate answer without first performing those exact tests on your particular vehicle is, it might!

Coverage is best (not perfect) on vehicles 2006-present. Please search through the coverage details.
- Select the tool, such as, Mx808, and click the search button.
Or
- Select the tool, enter a Mfg and then click the search button.

For Chrysler vehicles with a CCD bus you will need the Autel CCD adapter.

FCA vehicles 2017 and newer need the Autel 12+8 adapter cable in order to clear non-powertrain codes and perform service functions.

Both adapters are sold separately.

Package Contents:
· MaxiCheck mx808 Android-based tablet
· Main cable 6-ft long
· Hard carry case
· Quick Reference Guide
· Mini USB cable
· 1-year update subscription, renewals are only sold by Autel.
· User's Manual
